First Time Setup —Continued
If you connect your TV to the COMPONENT VIDEO
MONITOR OUT 1 or COMPONENT VIDEO MON-
ITOR OUT 2/ZONE 2 OUT, set the HDMI Monitor set-
ting to No so that the onscreen setup menus are displayed
and composite video and S-Video sources are upcon-
verted and output by the COMPONENT VIDEO MON-
ITOR OUT 1 and COMPONENT VIDEO MONITOR
OUT 2/ZONE 2 OUT.
If you connect your TV to the HDMI OUT MAIN or
HDMI OUT SUB, set the HDMI Monitor setting to
Main or Sub, respectively, so that the onscreen setup
menus are displayed and composite video, S-Video, and
component video sources are upconverted and output by
the HDMI OUT MAIN or HDMI OUT SUB.
You can specify the output resolution for the HDMI out-
puts and COMPONENT VIDEO outputs and have the
AV controller upconvert the picture resolution as neces-
sary to match the resolution supported by your TV.

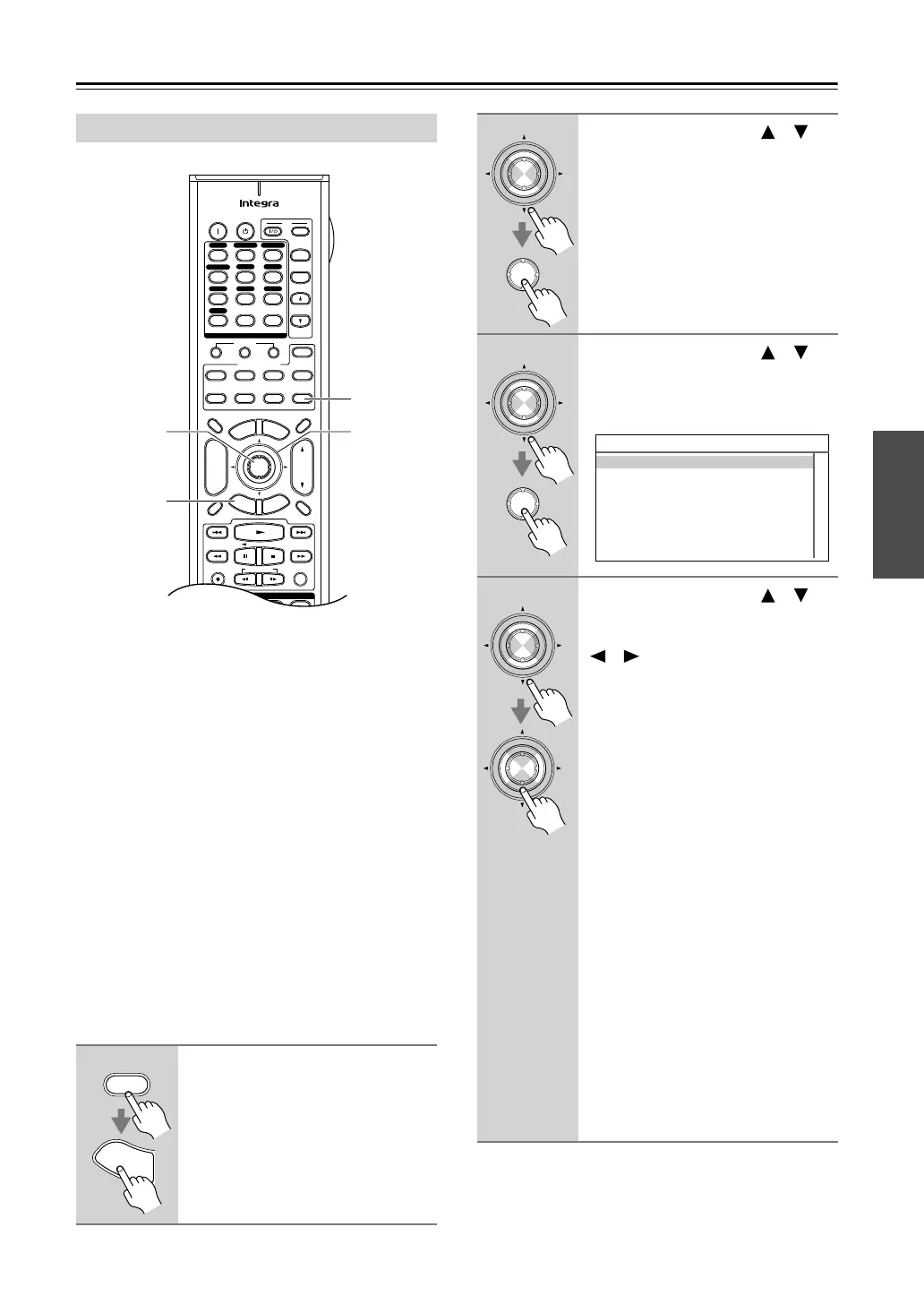

HDMI Monitor Setup
1
Press the [Receiver] button, fol-
lowed by the [Setup] button.
The main menu appears onscreen.
+
-
On Standby
TV
Input
TV CH
TV VOL
--
/
---
10 11 12
D.TUN
+10
0
Clear
123
456
789
Input Selector
VCR / DVR CBL / SAT
DVD
Tape
Tuner
CD
Phono
Game / TV
Macro
12
3
VCRDVD
CDR/MD
CD
Zone 2
Remote Mode
Dimmer
Tape/AMP
Sleep
Receiver TV Dock Cable
VOL
CH
Disc
Album
+
-
Enter
T
o
p
M
e
n
u
M
e
n
u
Display Muting
E
x
i
t
G
u
i
d
e
Prev
CH
R
e
t
u
r
n
S
e
t
u
p
Audio
Repeat
Play Mode
Listening Mode
Playlist
RandomRec
Direct
Stereo
THX All ST
Subtitle
Surround
SAT
Zone 3
AUX 1 AUX 2
2, 3
2–5
1
1, 6
Receiver
S
e
t
u
p
2
Use the Up and Down [ ]/[ ]
buttons to select “1. Input/Output
Assign,” and then press [Enter].
The Input/Output Assign menu
appears.
3
Use the Up and Down [ ]/[ ]
buttons to select “1. Monitor
Out,” and then press [Enter].
The Monitor Out menu appears.
4
Use the Up and Down [ ]/[ ]
buttons to select “HDMI Monitor,”
and use the Left and Right
[ ]/[ ] buttons to select:
No: Select this if your TV is con-
nected to the COMPONENT
VIDEO MONITOR OUT 1,
COMPONENT VIDEO
MONITOR OUT 2/ZONE 2
OUT, S MONITOR OUT, or
V MONITOR OUT.
Main: Select this if your TV is con-
nected to the HDMI OUT
MAIN.
Sub: Select this if your TV is con-
nected to the HDMI OUT
SUB.
Note:
• When Main or Sub is selected, the
onscreen setup menus are output by
only the HDMI outputs. If you’re
not using the HDMI outputs and
select Main or Sub by mistake and
the menus disappear, press the AV
controller’s [HDMI Out] button so
that “HDMI Monitor: No”
appears on the display.
