Getting to Know the AV Controller
The actual front panel has various logos printed on it. They are not shown here for clarity.
For detailed information, see the pages in parentheses.
A
Standby/On button (45)
Sets the AV controller to On or Standby.
B
Standby indicator (45)
Lights up when the AV controller is on Standby and
flashes while a signal is being received from the
remote controller.
C
Ready indicator (112)
North American model doesn’t have this indicator.
Lights up when the AV controller is on Standby and
HDMI Power Control is enabled.
D
Zone 2 indicator (117)
Flashes when Zone 2 is being set. Lights up when
Zone 2 is on.

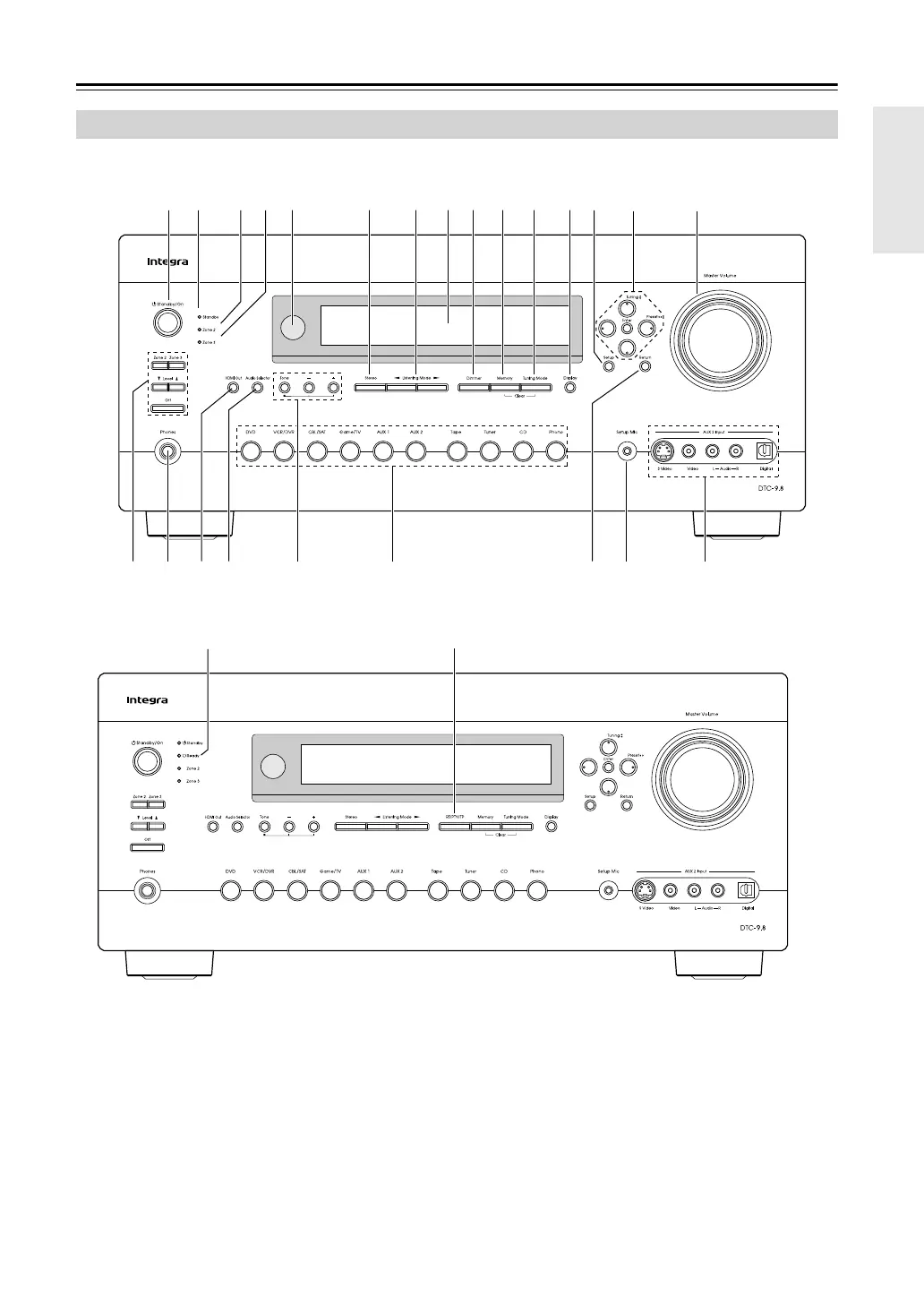

Front Panel
