Integra DTC-9.8 User Manual

40
Connecting Your Components —Continued

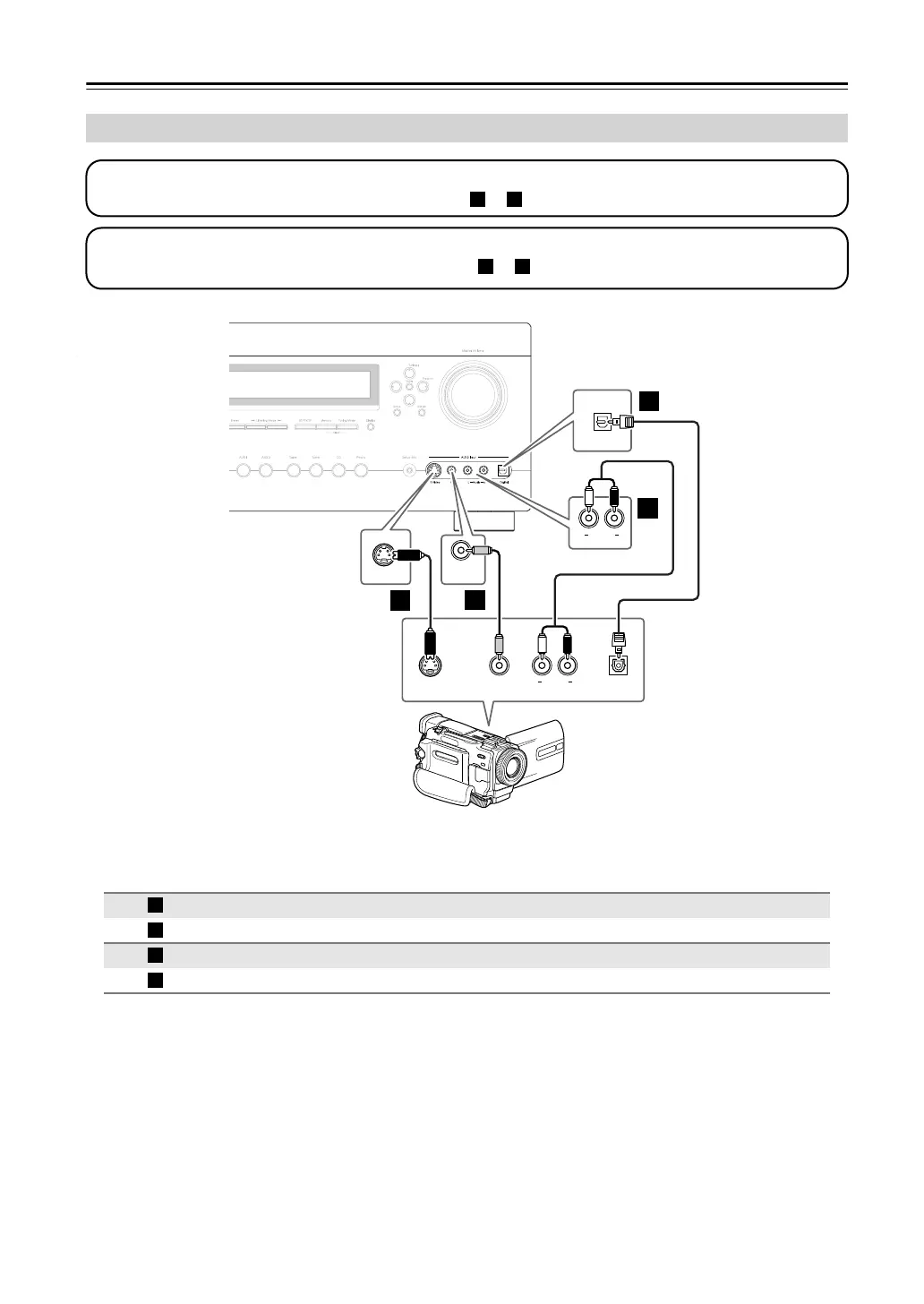

Connecting a Camcorder or Other AV Component
Connection AV controller Signal flow Camcorder
AUX 2 Input S Video
⇐
S-Video output
AUX 2 Input Video
⇐
Composite video output
AUX 2 Input L/R
⇐
Analog audio L/R output
AUX 2 Input Digital
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches your camcorder ( or ), and then make the connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches your camcorder ( or ), and then make the connection.
a
b
Digital
S Video
Input
Input
OPTICAL
OUT
Audio
Input
Video
Input
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
B
A
a
b
Camcorder, etc.
A
B
a
b
DTC-9.8En.book Page 40 Friday, February 15, 2008 1:23 PM
