Integra DTR-7.7 - Page 8

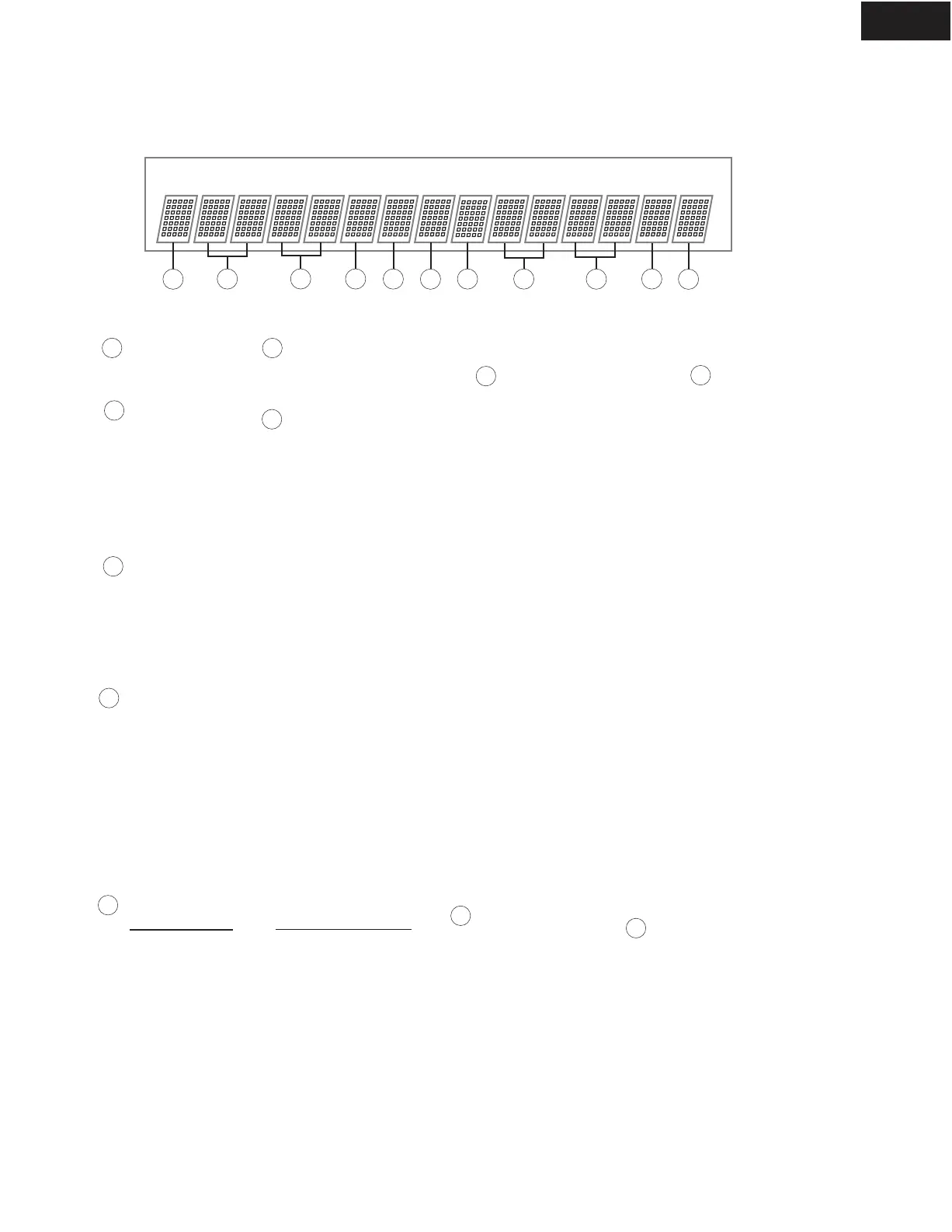

DEBUG MODE -2
DTR-7.7
1
4
2
5
6
8
7
10
3
9
1
UNLOCK
E = UNLOCK
_ = LOCK
Digital Selector
D = DIGITAL
A = ANALOG
1 = Coax 1
2 = Coax 2
3 = Opt 1
4 = Opt 2
5 = Opt 3
7 = Front Opt
Sampling Frequency
96 = 96kHz
48 = 48kHz
44 = 44.1kHz
32 = 32kHz
--- = Not Detected
2
4
5
-------------------------- DIR -----------------------------
3
----------------------------------------------- DSP ---------------------------------------------------------
Content of Display
11
DIR STATUS
0 = ANALOG
1 = PCM
2 = NOT_PCM
3 = DATA
4 = DTS CD
5 = MCH
6 = NOT DECIDED
PreEmphasis
K = OFF
e = ON
---------------------- MEMORY / DOWNLOAD --------------------
AUTOBOOT DSP AB CODE
0 = FLASH
1 = AB_AC3_PL2
2 = AB_dts_PL2
3 = AB_NEO6
4 = sgen_AB
5 = AB_PL2fs
6 = AB_dts_6dol
7 = AB_dts9624
8 = AAC
AUTOBOOT DSP C CODE
0 = C_dts9624
1 = C_neo6
2 = C_OOS_no_sd
3 = C_OOS
4 = C_oob
5 = C_PL2
6 = C_PL2xTHX
7 = C_THX
8 = c_spsetup
9 = vers
6
7
00 = POWER OFF
01 = POWER ON WAIT
10 = DSP RESET
11 = DSP RESET WAIT
12 = DSP AB BOOT Ready
13 = DSP AB BOOT start
14 = DSP AB BOOT
15 = DSP C BOOT Ready
16 = DSP C BOOT start
17 = DSP C BOOT
18 = DSP SOFT RESET
20 = DSP C APP_START
21 = DSP C HW CONFIG SET
22 = DSP C SW CONFIG SET
23 = DSP C SW CONFIG SET
24 = DSP C SW CONFIG SET
25 = DSP C SW CONFIG SET
26 = DSP C SW CONFIG SET
27 = DSP C SW CONFIG SET
28 = DSP C SW CONFIG SET
29 = DSP C SW CONFIG SET
2A = DSP C SW CONFIG SET
3F = DSP C KICK START
40 = DSP AB APP_START
FF = FREE
41 = DSP AB HW CONFIG SET
42 = DSP AB SW CONFIG SET
43 = DSP AB SW CONFIG SET
44 = DSP AB SW CONFIG SET
45 = DSP AB SW CONFIG SET
46 = DSP AB SW CONFIG SET
47 = DSP AB SW CONFIG SET
48 = DSP AB SW CONFIG SET
49 = DSP AB SW CONFIG SET
4A = DSP AB SW CONFIG SET
4B = DSP AB SW CONFIG SET
4F = DSP AB KICK START
DSP Detect Format
IEC61937 Format
00 = Null
08 = MPEG2 L1
01 = Dolby Digital
09 = MPEG2 L2/3
03 = Pause
0B = DTS1
20 = Silent
21 = DTS LD
22 = DTS CD
23 = PCM
04 = MPEG1 L1
0C = DTS2
05 = MPEG1 L23
/ MPEG2 w/o
0D = DTS3
06 = MPEG2 w/e
1B = MPEG2 AAC1
07 = MPEG2 AAC
1C = MPEG2 AAC2
DSP Decode
O = Decode OK
X = Decode NG
- = ANALOG In
8
9
10
Mute Condition
0 = mute off
1 = mute during input selector's switching
2 = mute during parameter's switching
4 = DSP Mute
8 = DIR Mute
3 = 1 + 2
5 = 1 + 4
6 = 2 + 4
7 = 1 + 2 + 4
9 = 1 + 8
A = 2 + 8
B = 1 + 2 + 8
C = 4 + 8
D = 1 + 4 + 8
E = 2 + 4 + 8
F = 1 + 2 + 4 + 8
11
----------- Main Microprocessor ------------
FL Display
DSP Status
NOT IEC61937 Format
