12
En
Connections
Connecting the AV Receiver
Connecting the Speaker Cables

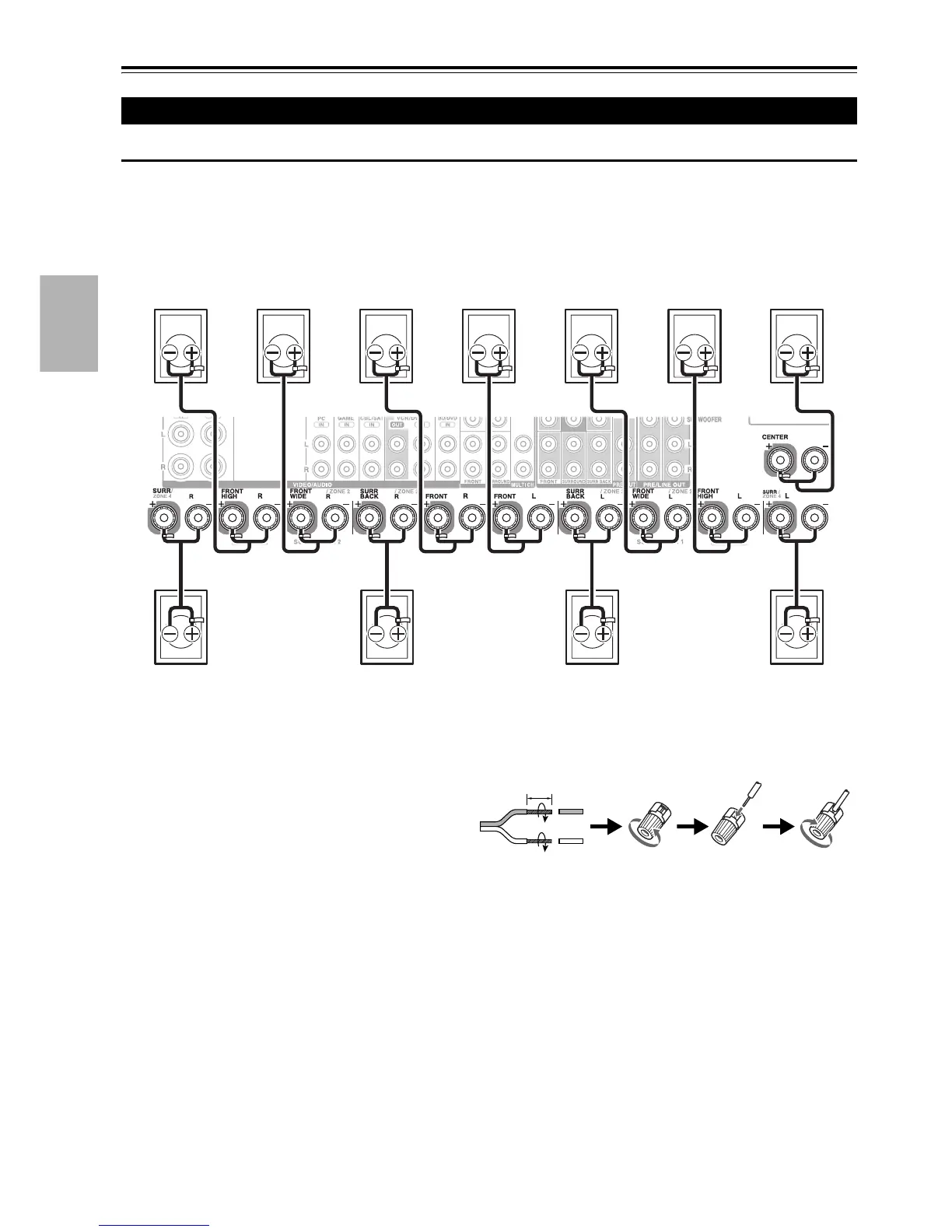

■ 9.2-channel Playback
The following illustration shows how to connect the speakers to each pair of terminals. If you’re using only one surround
back speaker, connect it to the SURR BACK/ZONE 3 L terminals.
■ Screw-type speaker terminals
Strip 1/2" to 5/8" (12 to 15 mm) of insulation from
the ends of the speaker cables, and twist the bare
wires tightly, as shown.
■ Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
Connecting Your Speakers
Surround
back left
Surround
left
Surround
right
Front leftFront right Center
Front wide
right
Front wide
left
Surround
back right
Front high
right
Front high
left
1/2" to 5/8" (12 to 15 mm)
To Next Page
