Integra DTR-9.9 User Manual

44
Connecting the AV Receiver—Continued
If you want to use a more powerful power amplifier and use the AV receiver solely as a preamp, connect the amp to the
PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer,
connect it to the AV receiver’s PRE OUT: SUBWOOFER jack.

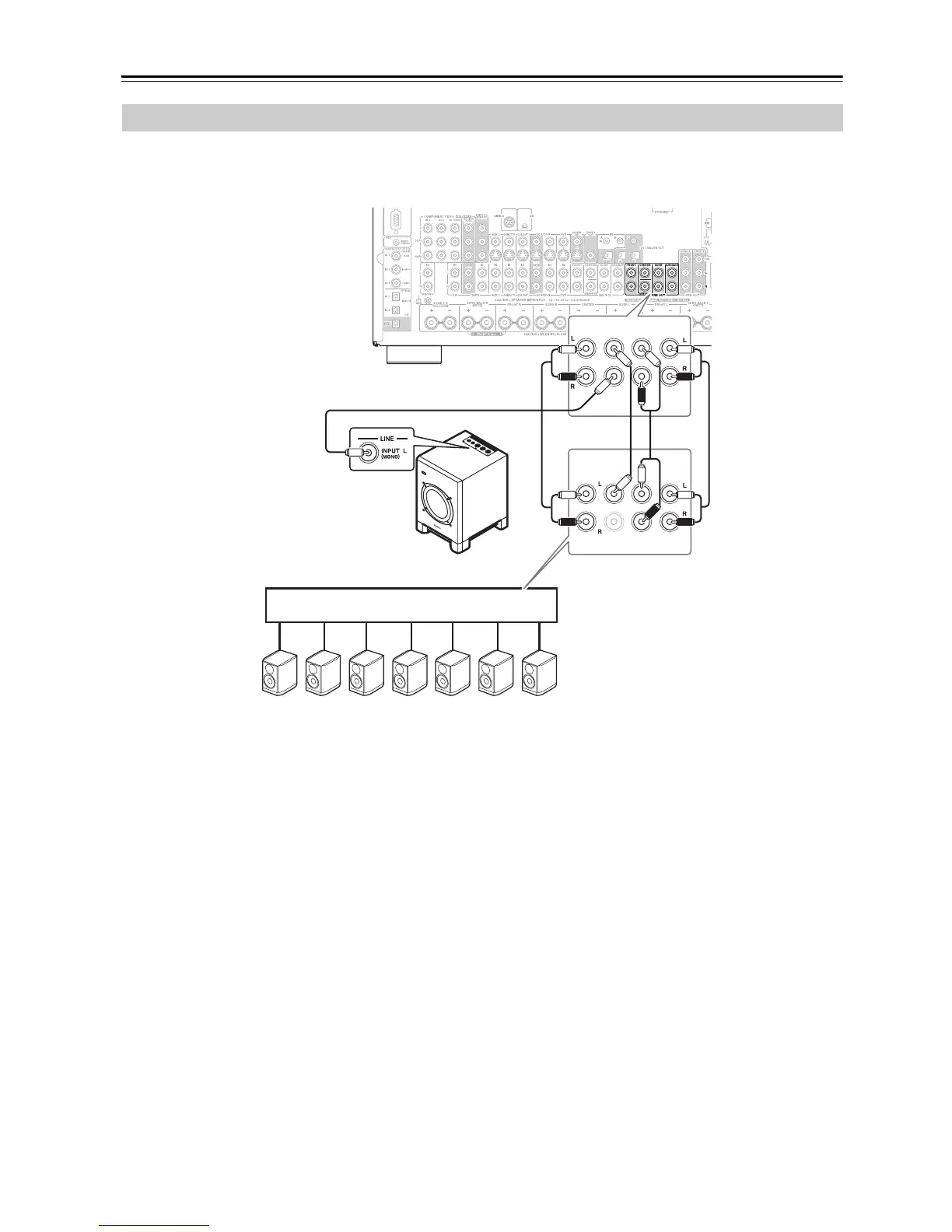

Connecting a Power Amplifier
2 3 4 5 6 71
FRONT CENTER SURR SURR BACK
SUBWOOFER
FRONT CENTER SURR
PRE OUT
SURR BACK
SUBWOOFER
1. Front left speaker
2. Center speaker
3. Front right speaker
4. Surround left speaker
5. Surround right speaker
6. Surround back left speaker
7. Surround back right speaker
Power amplifier
See “Connecting a Powered Subwoofer”
on page 23 for more information.
Powered subwoofer

Integra DTR-9.9 Specifications

General

Channels	7.1
HDMI Outputs	2
Component Video Inputs	3
Component Video Outputs	1
Digital Audio Inputs (Optical)	3
Digital Audio Inputs (Coaxial)	3
Composite Video Inputs	4
Composite Video Outputs	1
Analog Audio Inputs	6
Analog Audio Outputs	1
HDMI Inputs	6
Audio Formats Supported	Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, DTS-HD High Resolution Audio
Network Connectivity	Ethernet
THX Certified	Yes
Multi-Zone Capability	Yes
THD	0.05%
Frequency Response	5Hz-100kHz (+1dB, -3dB)
Input Sensitivity/Impedance	200 mV / 47 kΩ
Signal-to-Noise Ratio	110 dB
