Integra RDC-7.1 User Manual

26
Connecting a Power Amplifier —Continued
You can connect the power amplifier that has XLR
(balanced) type input terminals to the RDC-7.1 using
XLR type cables. One XLR type input terminal set is
available for this connection.
The pin assignments for these terminals, which conform
to the AES* standard, are shown below.
*AES: Audio Engineering Society
Check the instruction manual that came with your power
amplifier and verify that the input pin assignments are
compatible with those for the RDC-7.1.
1. Connecting the output terminal
Match the pins and insert the terminal until you hear a
“click.” Ensure that it is secure by gently pulling it.
2. Disconnecting the output terminal
Pull out the cable (in the direction indicated by the
arrow) while holding down the connection cable
button.

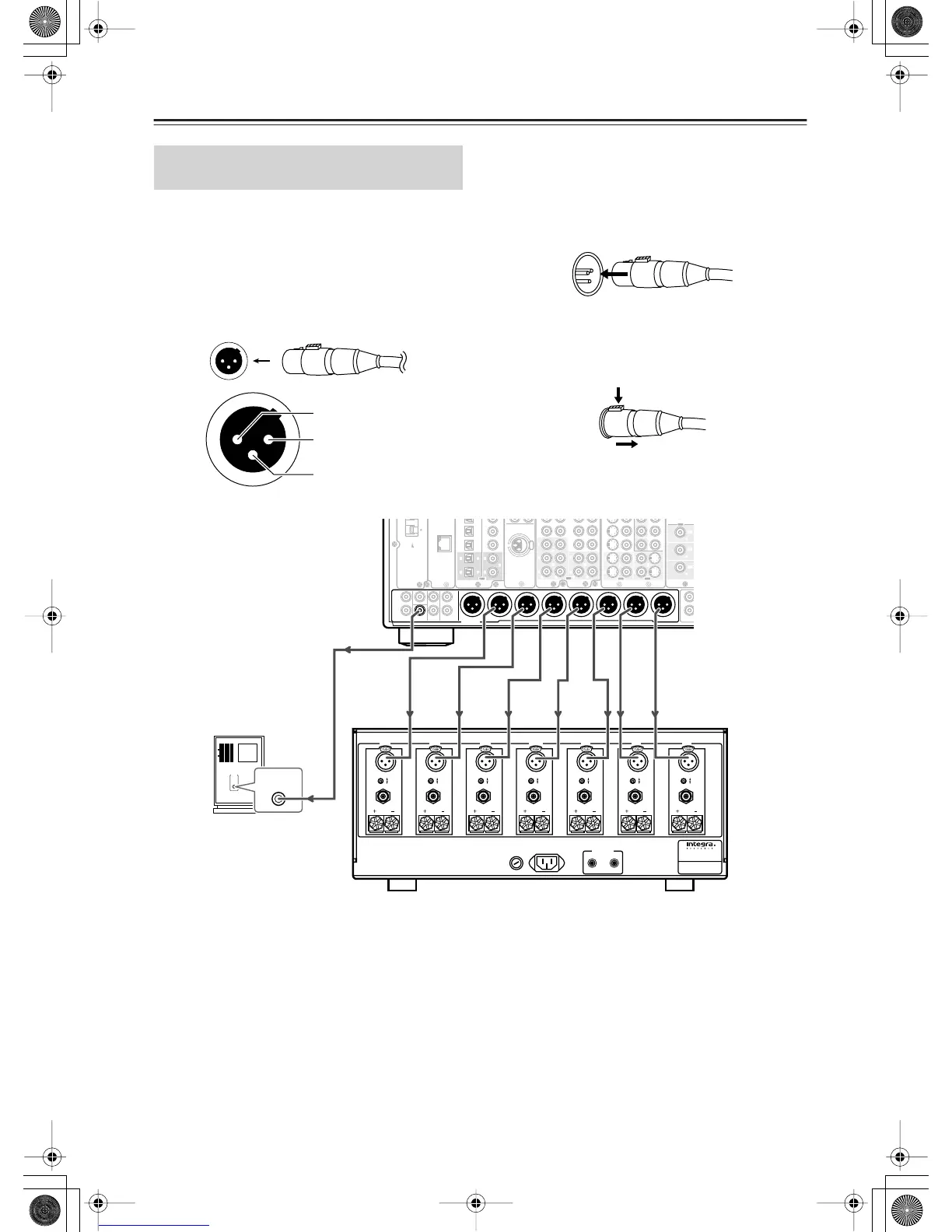

Connecting a Power Amplifier Using
XLR Type Cables
1. GND
2. non-inverting (+)
3. inverting (–)
XLR type Balanced cable
Push
L
R
L
R
FRONT
CENTER
SURR SURR BACK
SUB
WOOFER
SURR BACK R SURR R FRONT R CENTER FRONT L SURR BACK L SURR L SUBWOOFER
PRE OUT A
(
ASSIGNABLE
) (
SINGLE
)
(
SINGLE
)
(
ASSIGNABLE
) (
ASSIGNABLE
)
ETHERNET
(
Net
-
Tune
)
AUDIO
The i.LINK logo is a
trademarks of Sony
Corporation, registered
in the U.S. and other
countries.
S400
22
11
66
55
OUT
1
3
2
3
9
8
4
5
OUT
LR R L
6
5
P B
P R
2
1
4
3
S VIDEOS VIDEO VIDEOVIDEO
OUT OUT
Y
P
B
P R
OUT
L
R
FRON
T
DIGITAL IN
(
BALANCED
)
AES/ EBU
DIGITAL IN
(
BALANCED
)
AES/ EBU
SPEAKER IMPEDANCE
4 OHMS MIN. PER EACH
SPEAKER TERMINAL
AC INLET
SEVEN CHANNEL AMPLIFIER
MODEL NO. RDA-7.1
INPUT
SELECT
FUSE
SURROUND BACK
RIGHT
SURROUND
RIGHT
12V TRIGGER
IN OUT
SURROUND
LEFT
CENTER
FRONT
LEFT
SURROUND BACK
LEFT
FRONT
RIGHT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
INPUT
SELECT
OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT
LINE INPUT
LINE INPUT
RDC-7.1
Power amplifier
Subwoofer
