A B
RS
232
OUT
IN
Y
P
B
PR
COMPONENT
OUT (BNC)
R
L
ANALOG
S VIDEO
IN
AUDIO IN
R
L
ANALOG
AUDIO OUT
S VIDEO
OUT
VIDEO
OUT
AUDIO OUT
DIGITAL
OPTICAL
When connecting to other
audio terminals within the
same terminal section, config-
ure the audio input settings
accordingly using the Audio
Assign sub-menu (See page
98).
When connecting to other audio termi-
nals within the same terminal section,
configure the audio output settings
accordingly using the Audio Output
Assign sub-menu (See page 95).
When connecting to other
video terminals within the
same terminal section, con-
figure the video input set-
tings accordingly using the
Video Assign sub-menu
(See page 99).
When connecting to other video ter-
minals within the same terminal sec-
tion, configure the video output
settings accordingly using the Video
Output Assign sub-menu (See page
96).
For digital
VCR

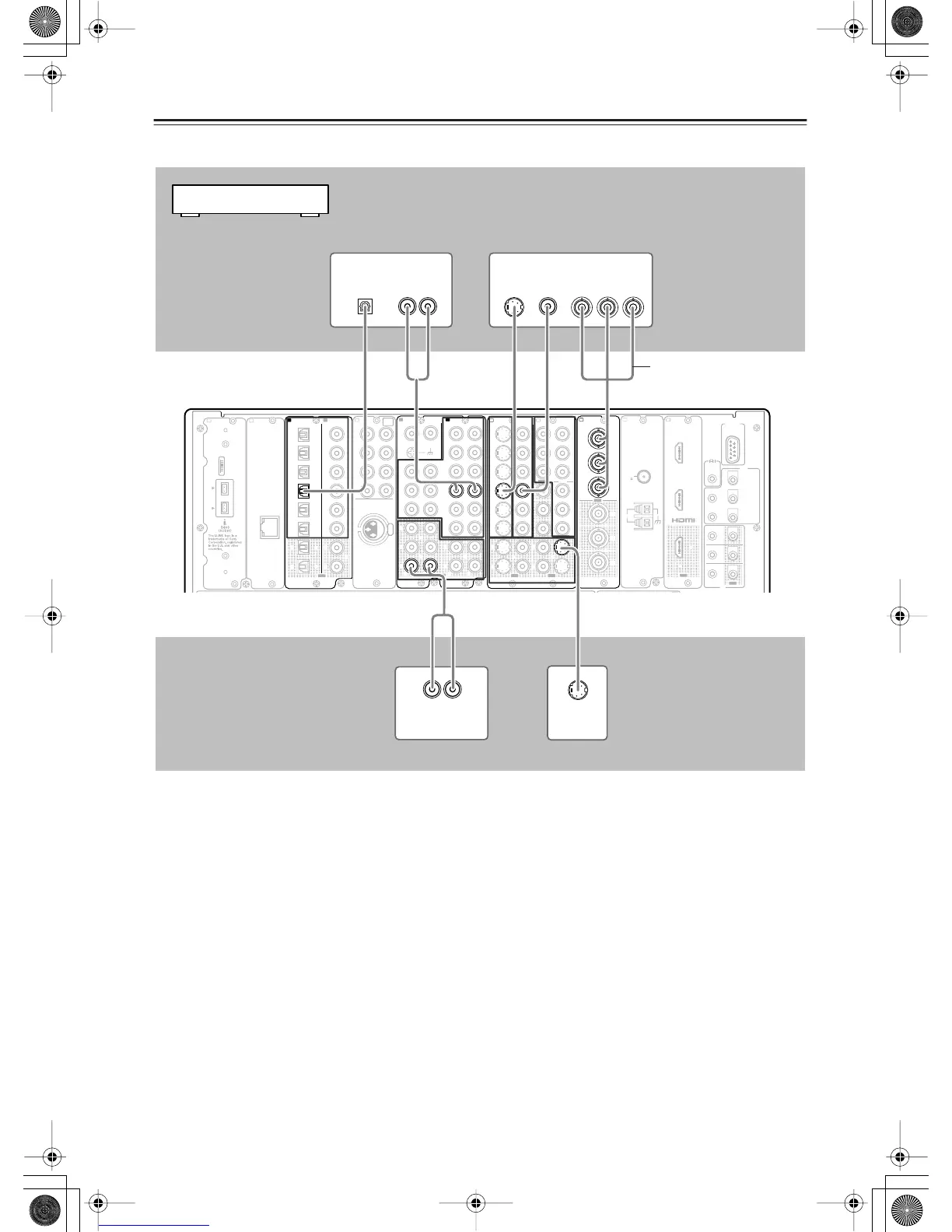

Example for connecting with the VIDEO 3 as input
VCR
*
European and Asian models use the BNC type component terminals, and other models use the RCA type.
Audio Output Video Output
Audio Input Video Input
To Next Page
