Intel Desktop Board D865GVHZ Technical Product Specification
14
1.1.3 Board Layout

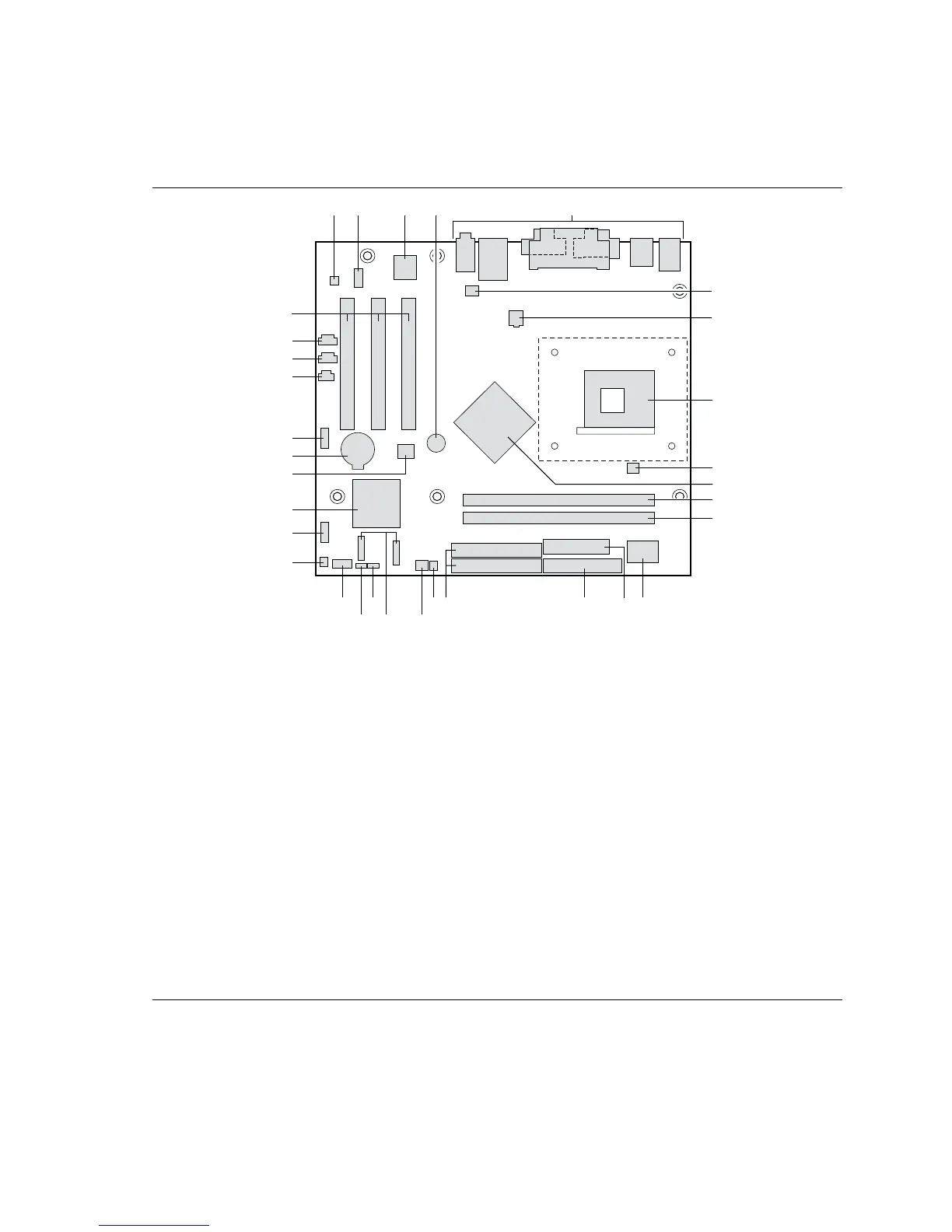

Figure 1 shows the location of the major components on the Desktop Board D865GVHZ.
OM16403
EA
CB D
H
I
K
L
J
F
ON
R
PQ
TV
U S
M
W
X
Y
Z
AA
BB
EE
DD
CC
FF
G
A Audio codec Q SCSI hard drive activity LED connector (optional)
B Front panel audio connector R Front chassis fan connector
C Ethernet PLC device (optional) S Serial ATA connectors
D Speaker T BIOS Setup configuration jumper block
E Back panel connectors U Auxiliary front panel power LED connector
F Rear chassis fan connector V Front panel connector
G +12V power connector (ATX12V) W Chassis intrusion connector
H mPGA478 processor socket X Front panel USB connector
I Processor fan connector Y Intel 82801EB I/O Controller Hub (ICH5)
J Intel 82865GV GMCH Z 4 Mbit Firmware Hub (FWH)
K DIMM Channel A socket AA Battery
L DIMM Channel B socket BB Front panel USB connector
M I/O controller CC S/PDIF connector (optional)
N Power connector DD Auxiliary line-in connector
O Diskette drive connector EE ATAPI CD-ROM connector
P Parallel ATA IDE connectors FF PCI bus add-in card connectors
Figure 1. Desktop Board D865GVHZ Components
