Intel Desktop Board D865GVHZ Technical Product Specification
24
Channel A DIMM Channel B DIMM
Dual Channel Configuration with Dynamic Mode
(DIMMs matched)
OM16510
Intel
82865GV
GMCH
Throughput
Level Configuration Characteristics
Highest
Dual Channel with Dynamic Mode DIMMs matched
Single Channel with Dynamic Mode Single DIMM
Lowest
Single Channel without Dynamic Mode DIMMs not matched

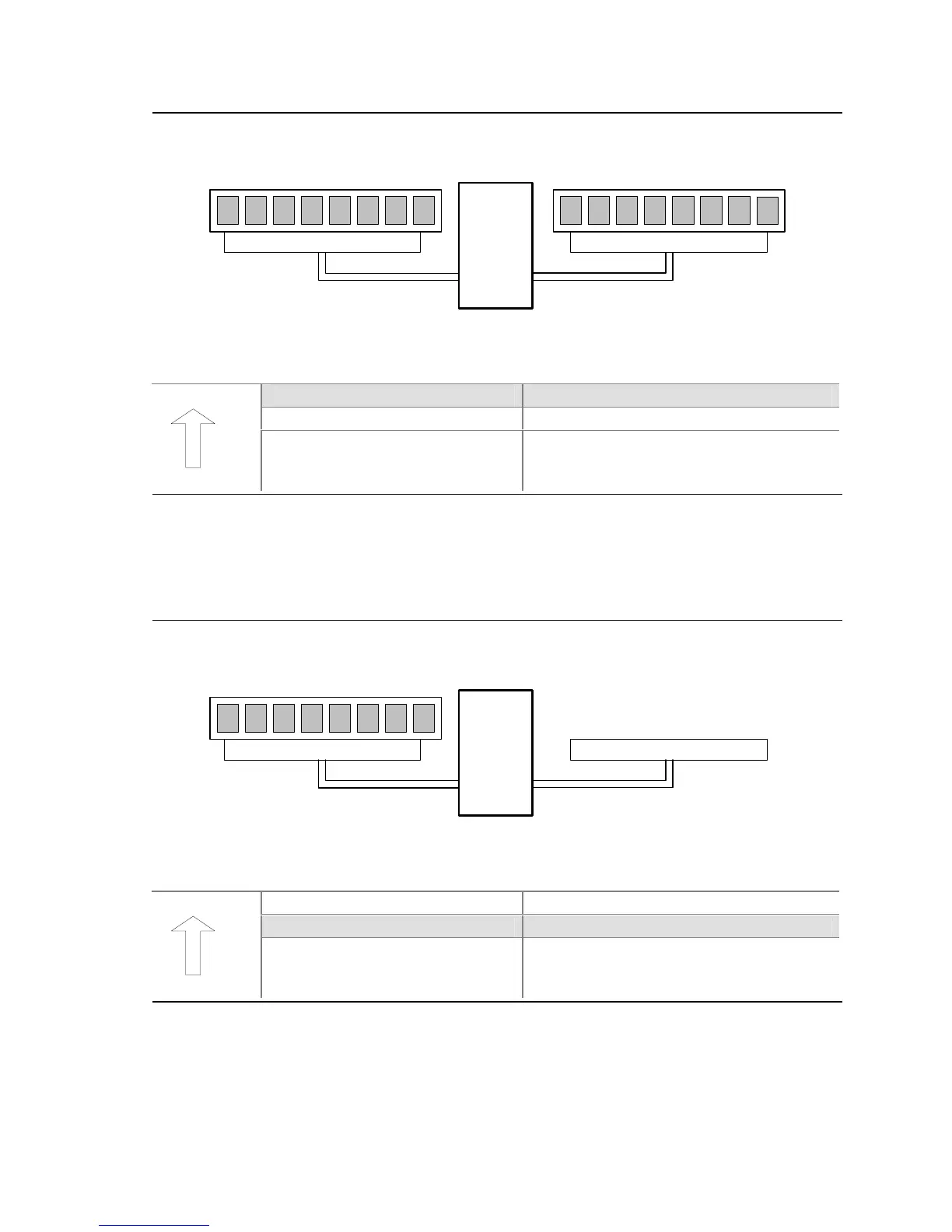

Figure 4. Examples of Dual Channel Configuration with Dynamic Mode
Channel A DIMM Channel B DIMM
Single Channel Configuration with Dynamic Mode
(Single DIMM)
OM16511
Intel
82865GV
GMCH
Throughput
Level Configuration Characteristics
Highest Dual Channel with Dynamic Mode DIMMs matched
Single Channel with Dynamic Mode Single DIMM
Lowest
Single Channel without Dynamic Mode DIMMs not matched
Figure 5. Examples of Single Channel Configuration with Dynamic Mode
