2.8.1 Back Panel Connectors

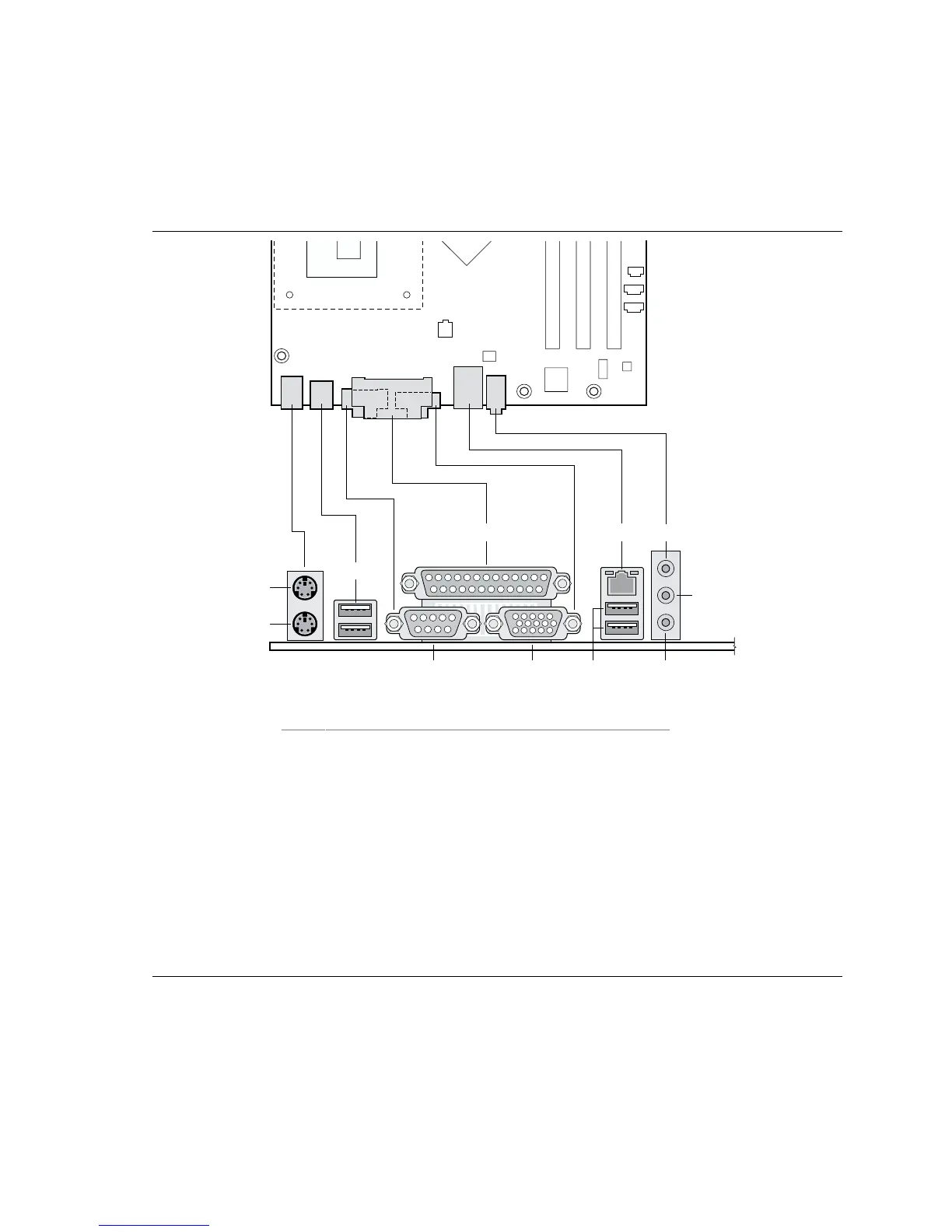

Figure 14 shows the location of the back panel connectors. The back panel connectors are
color-coded in compliance with PC 99 recommendations. The figure legend below lists the
colors used.
OM16407
K
A
B
G
IE
C
H JD F
Item Description Color
A PS/2 mouse port Green
B PS/2 keyboard port Purple
C USB ports Black
D Serial port A Teal
E Parallel port Burgundy
F VGA port Dark blue
G LAN Black
H USB ports Black
I Audio line in Light blue
J Mic in Pink
K Audio front left and right out Lime green
Figure 14. Back Panel Connectors
