Intel Desktop Board D865GVHZ Technical Product Specification
76
2.10 Mechanical Considerations
The Desktop Board D865GVHZ is designed to fit into either a microATX or an ATX-form-factor
chassis. Figure 22 illustrates the mechanical form factor for the Desktop Board D865GVHZ.
Dimensions are given in inches [millimeters]. The outer dimensions are 9.60 inches by
8.50 inches [243.84 millimeters by 215.90 millimeters]. Location of the I/O connectors and
mounting holes are in compliance with the ATX specification (see Section 1.4).
✏
NOTE
When installing the Desktop Board in a microATX chassis, make sure that peripheral devices are
installed at least 1.5 inches above the main power connector, the diskette drive connector, and the
Parallel ATA IDE connector, and the DIMM sockets.
OM16413
6.100
[154.94]
2.000
[50.8]
3.150
[80.01]
6.450
[163.83]
6.500
[165.10]
6.200
[157.48]
5.200
[132.08]
1.800
[45.72]
0.00
2.600
[66.04]
0.00

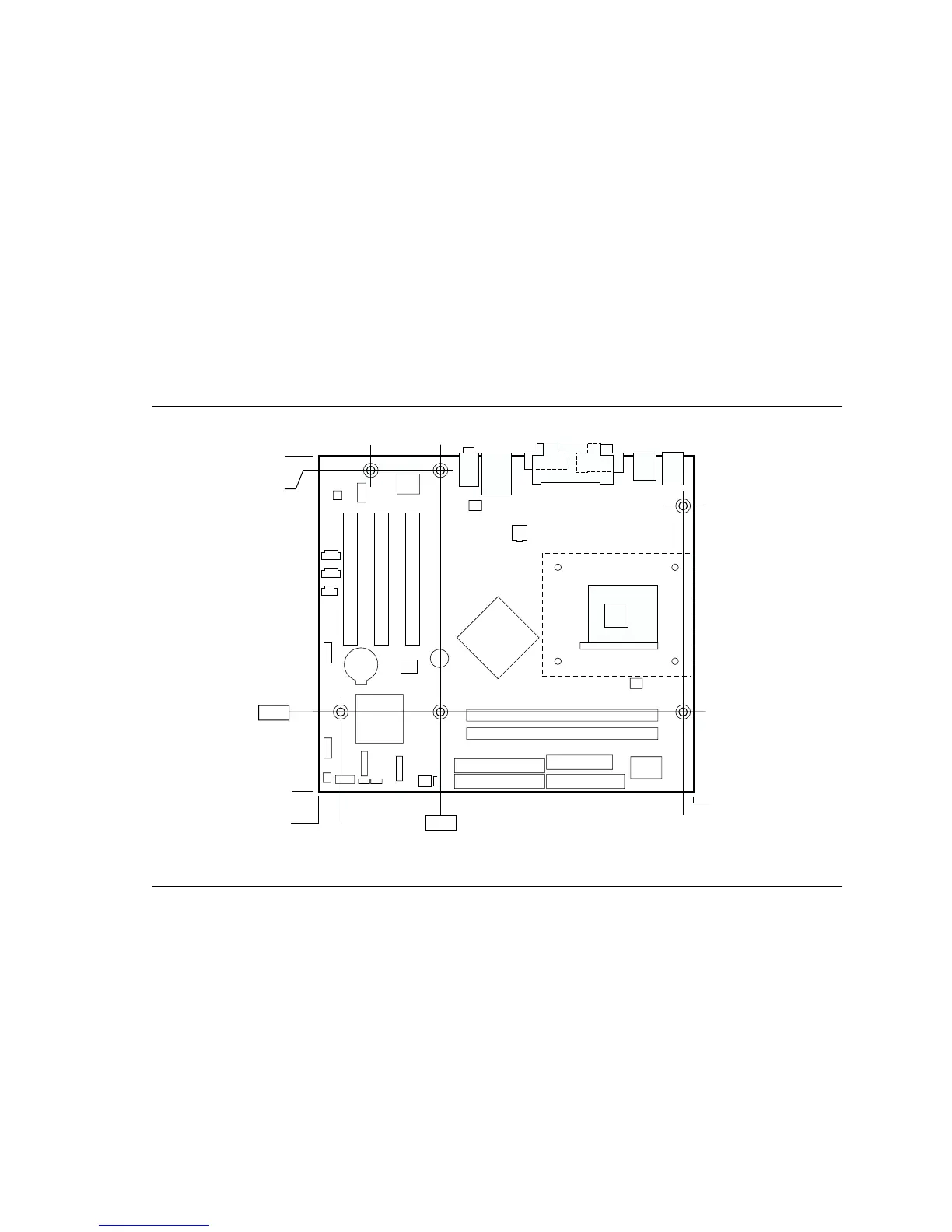

Figure 22. Desktop Board D865GVHZ Dimensions
