Intel BOXD865GVHZ - Power and Hardware Control Connectors; Rear Chassis Fan Connector

Technical Reference
65
2.8.2.3 Power and Hardware Control Connectors

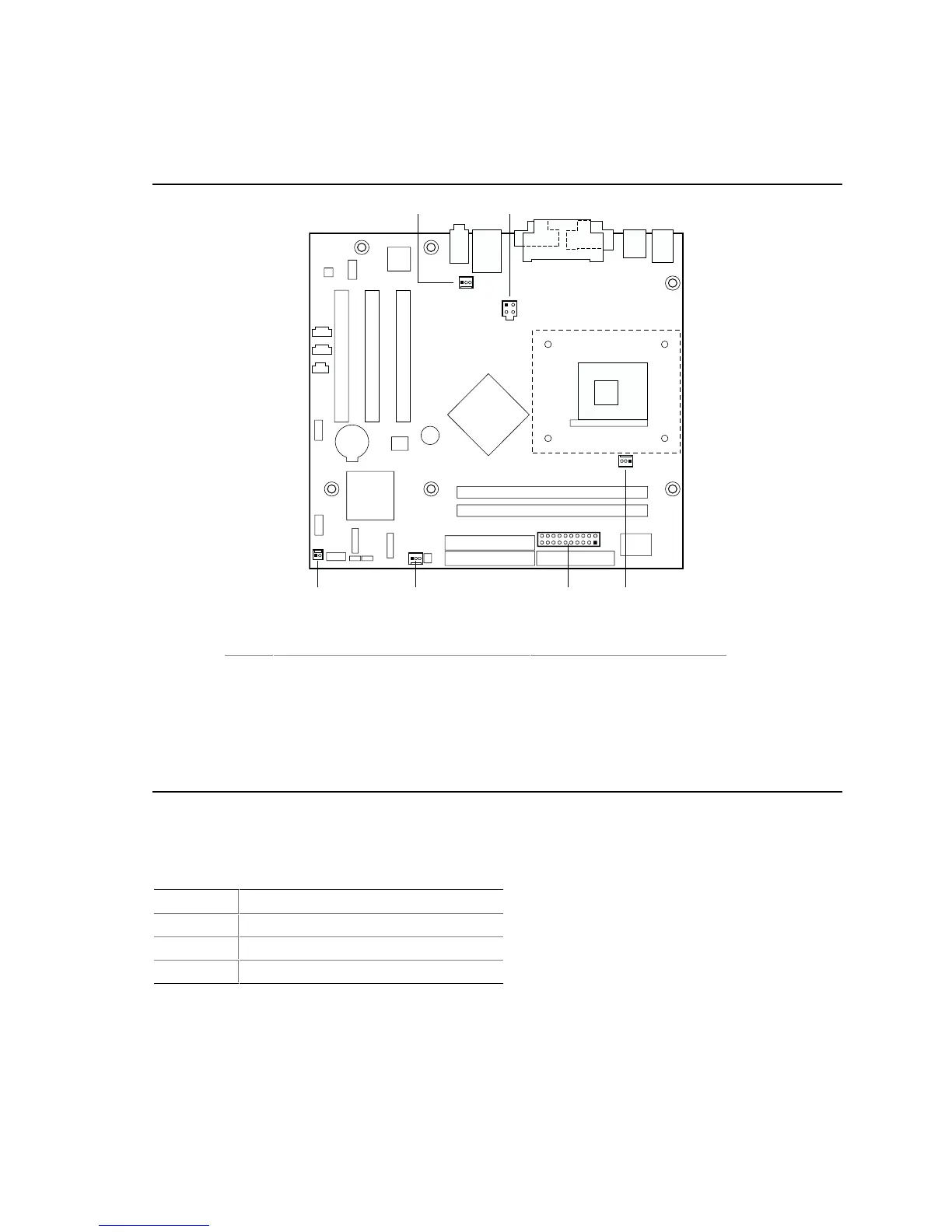

Figure 16 shows the location of the power and hardware control connectors.
OM16409
E DF
A B
13
3
31
C
4
21
3
1
20
11
1
Item Description For more information see:
A Rear chassis fan Table 29
B +12 V power connector (ATX12V) Table 30
C Processor fan Table 31
D Main power Table 32
E Front chassis fan Table 33
F Chassis intrusion Table 34
Figure 16. Power and Hardware Control Connectors
Table 29. Rear Chassis Fan Connector
Pin Signal Name
1 Control
2 +12 V
3 REAR_TACH_OUT
