Intel Desktop Board D865GVHZ Technical Product Specification
70
2.8.3 External I/O Connectors

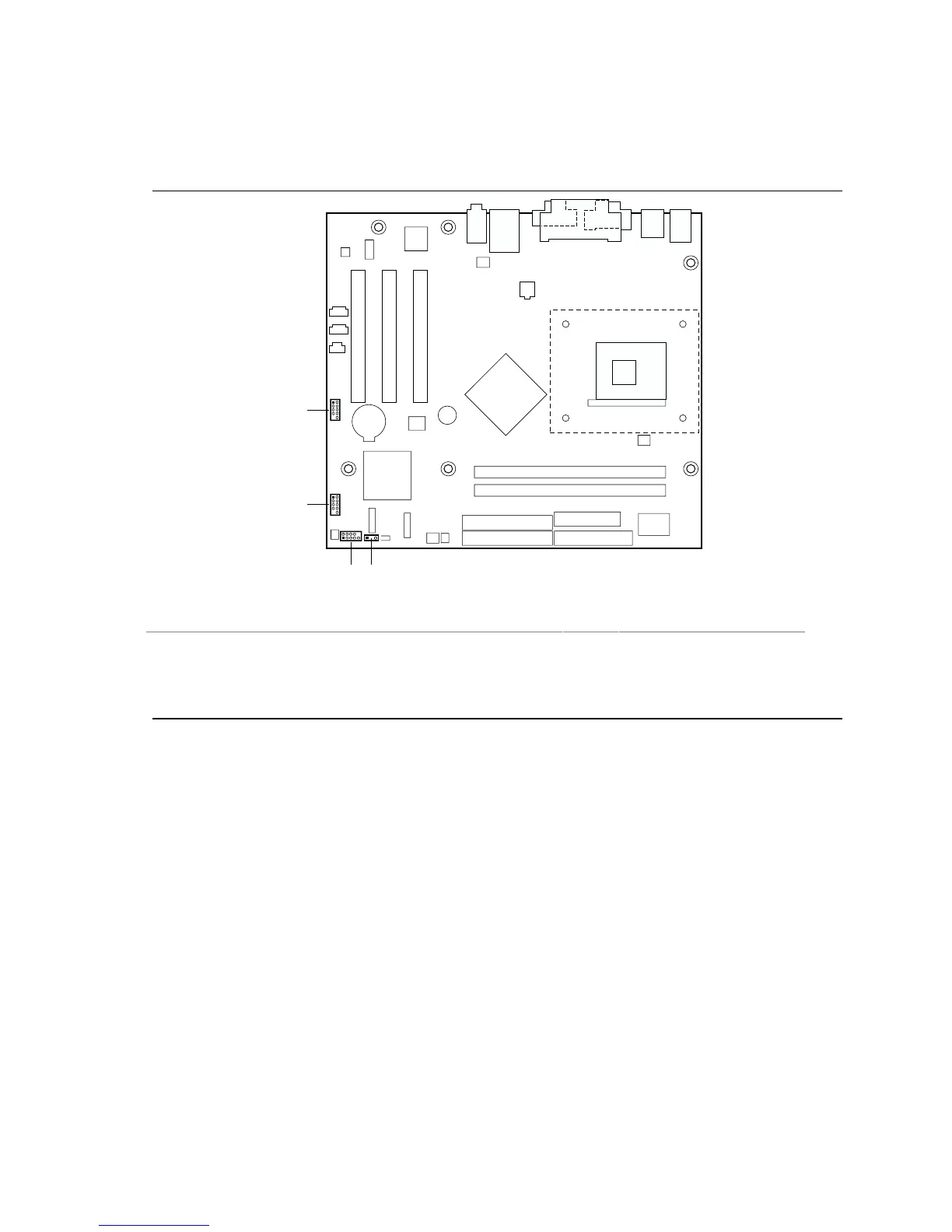

Figure 18 shows the locations of the external I/O connectors.
OM16411
10
2
1
13
D
10
2
1
C
AB
1
2
9
Item Description Color For more information see:
A Auxiliary front panel power/sleep/message-waiting LED Black Table 37
B Front panel White Table 38
C Front panel USB Black Figure 20
D Front panel USB Black Figure 20
Figure 18. External I/O Connectors
