Product Description
25
Channel A DIMM Channel B DIMM
Single Channel Configuration without Dynamic Mode
(DIMMs not matched)
OM16512
Intel
82865GV
GMCH
Throughput
Level
Configuration
Characteristics
Highest Dual Channel with Dynamic Mode DIMMs matched
Single Channel with Dynamic Mode Single DIMM
Lowest
Single Channel without Dynamic Mode DIMMs not matched

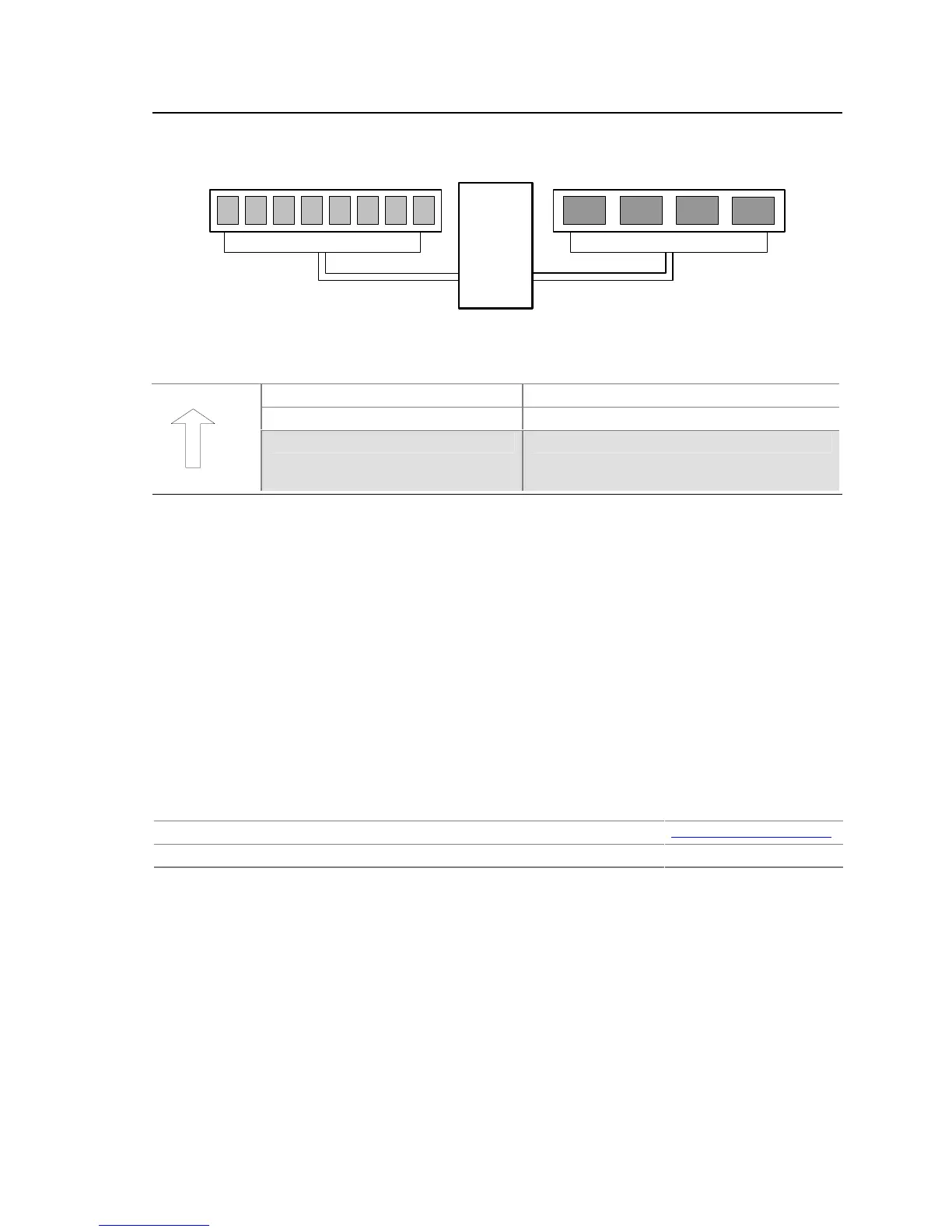

Figure 6. Examples of Single Channel Configuration without Dynamic Mode
1.7 Intel
®
865GV Chipset
The Intel 865GV chipset consists of the following devices:
• Intel 82865GV Graphics and Memory Controller Hub (GMCH) with Accelerated Hub
Architecture (AHA) bus
• Intel 82801EB I/O Controller Hub (ICH5) with AHA bus
• Firmware Hub (FWH)
The GMCH is a centralized controller for the system bus, the memory bus, and the Accelerated
Hub Architecture interface. The ICH5 is a centralized controller for the board’s I/O paths. The
FWH provides the nonvolatile storage of the BIOS.
For information about Refer to
The Intel 865GV chipset http://developer.intel.com/
Resources used by the chipset Chapter 2
