Intel NUC8i5INH - Board Layout (Bottom); Figure 2. Major Board Components (Bottom)

16
1.1.3 Board Layout (Bottom)
Figure 2 shows the location of the major components on the bottom-side of Intel NUC Mini PC
NUC8i5INH/NUC8i7INH.

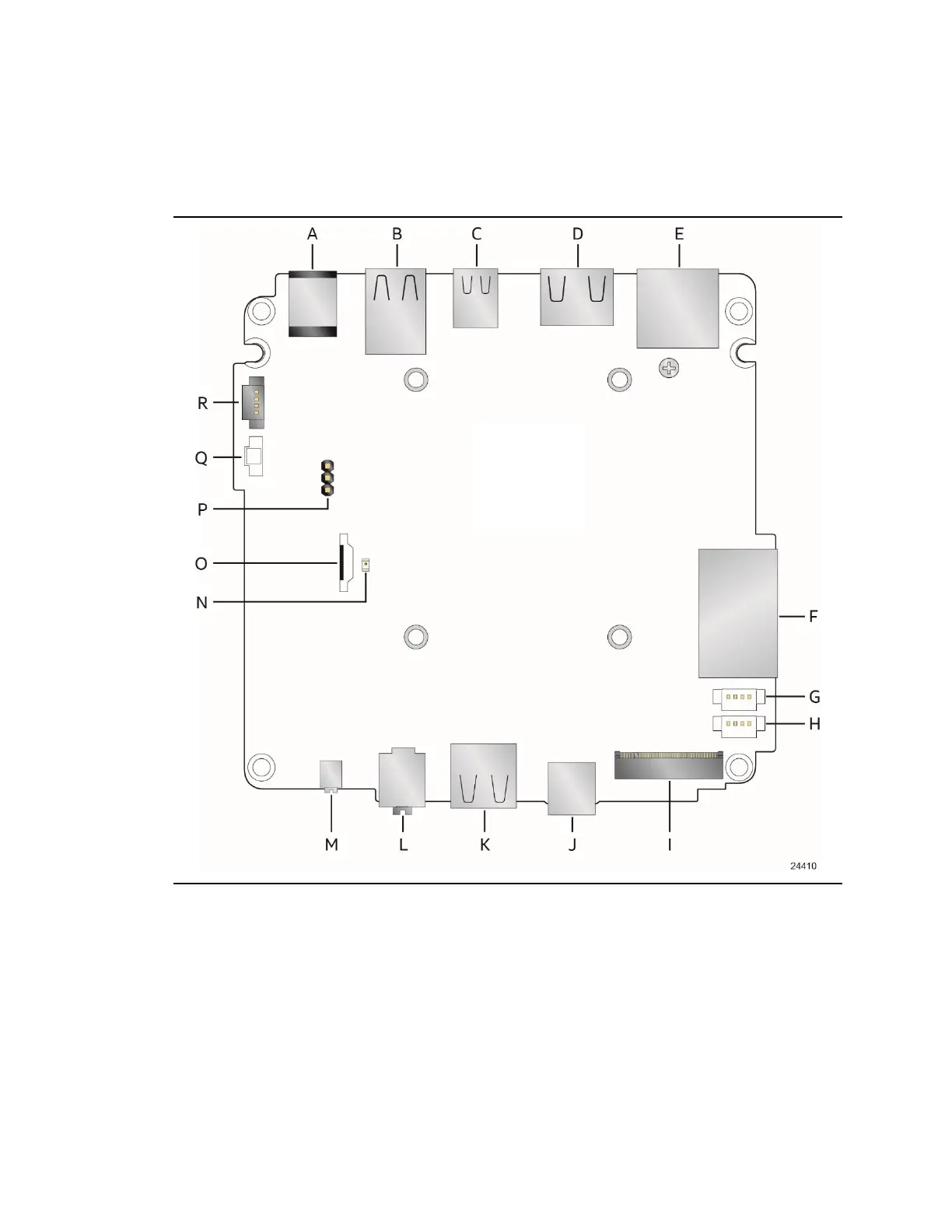

Figure 2. Major Board Components (Bottom)
