46
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into a custom chassis. Figure 15 illustrates the mechanical form
factor for the board. Dimensions are given in millimeters. The outer dimensions are
101.60 millimeters by 101.60 millimeters [4.0 inches by 4.0 inches].

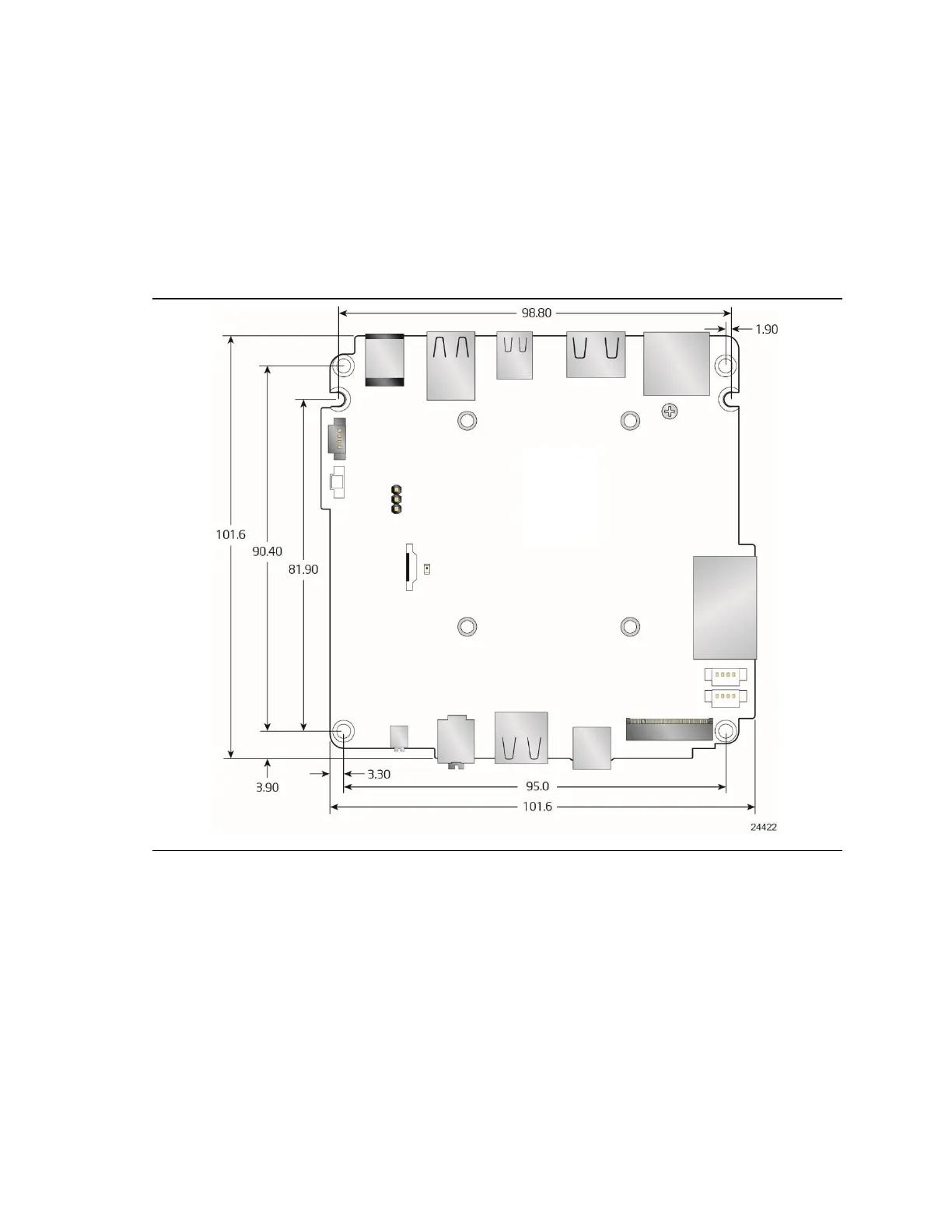

Figure 15. Board Dimensions
