1.9.3 RJ-45 LAN Connector with Integrated LEDs
Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).

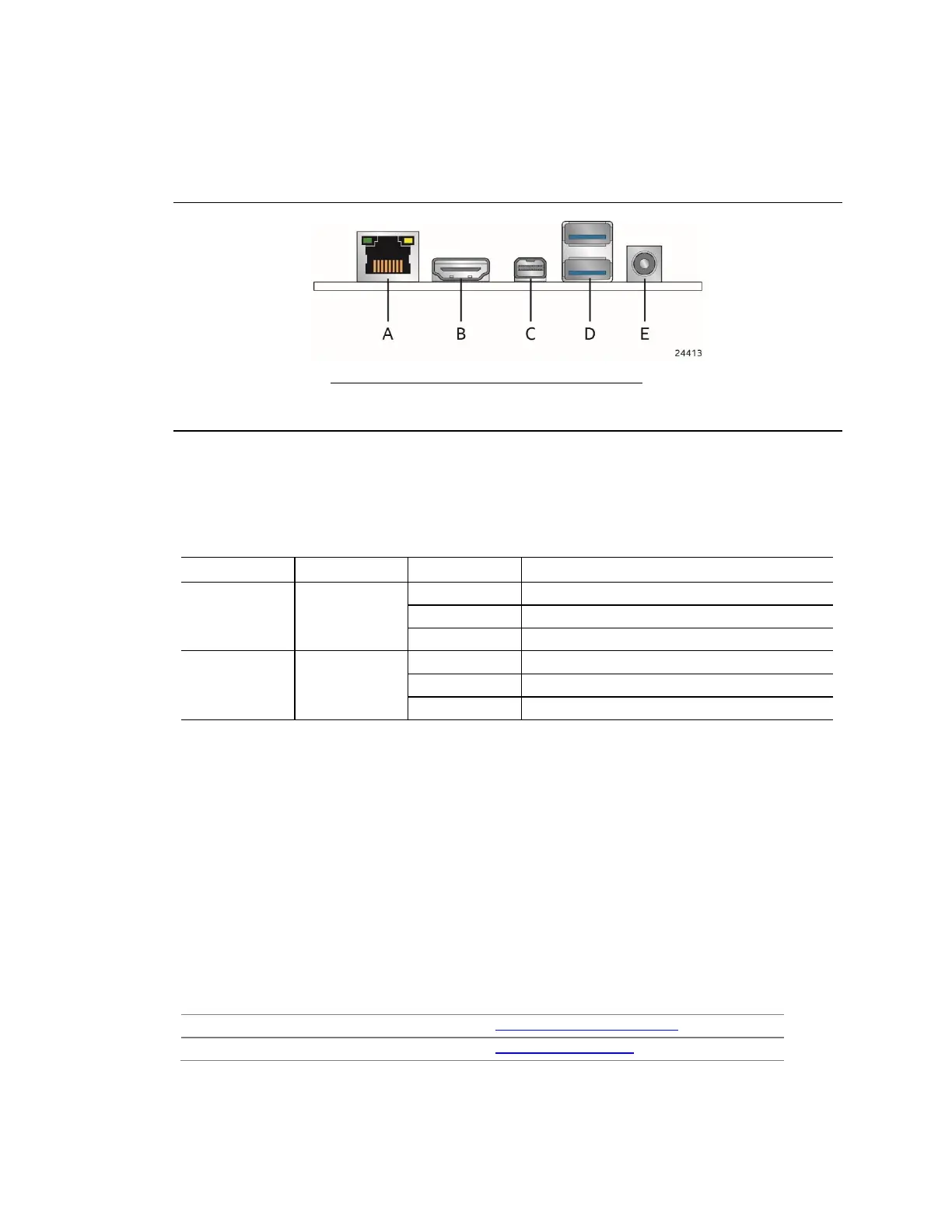

Figure 5. LAN Connector LED Locations
Item
Description
A
Link LED (Green)
B
Data Rate LED (Green/Yellow)
Table 4 describes the LED states when the board is powered up and the LAN subsystem is
operating.
Table 4. LAN Connector LED States
LED
LED Color
LED State
Condition
Link (A)
Green
Off
LAN link is not established.
On
LAN link is established.
Blinking
LAN activity is occurring.
Data Rate (B)
Green/Yellow
Off
10 Mb/s data rate is selected.
Green
100 Mb/s data rate is selected.
Yellow
1000 Mb/s data rate is selected.
1.9.4 Wireless Network Module
The Intel Wireless-AC 9560D2W module provides high performance low power wireless
connectivity with the following capabilities:
 802.11ac R2, Dual Band, 2x2, Wi-Fi + Bluetooth 5.0
 Supports 2.4 Ghz and 5 Ghz bands
 Maximum transfer speed up to 1.73Gbps
 Supports Intel® Smart Connect Technology
 Supports Multiple-input and multiple-output (MIMO) technologies for wireless
communications
 Soldered-down module
For information about
Refer to
Obtaining WLAN software and drivers
http://downloadcenter.intel.com
Full Specifications
http://intel.com/wireless
