40
2.2.4 Connectors and Headers (Bottom)

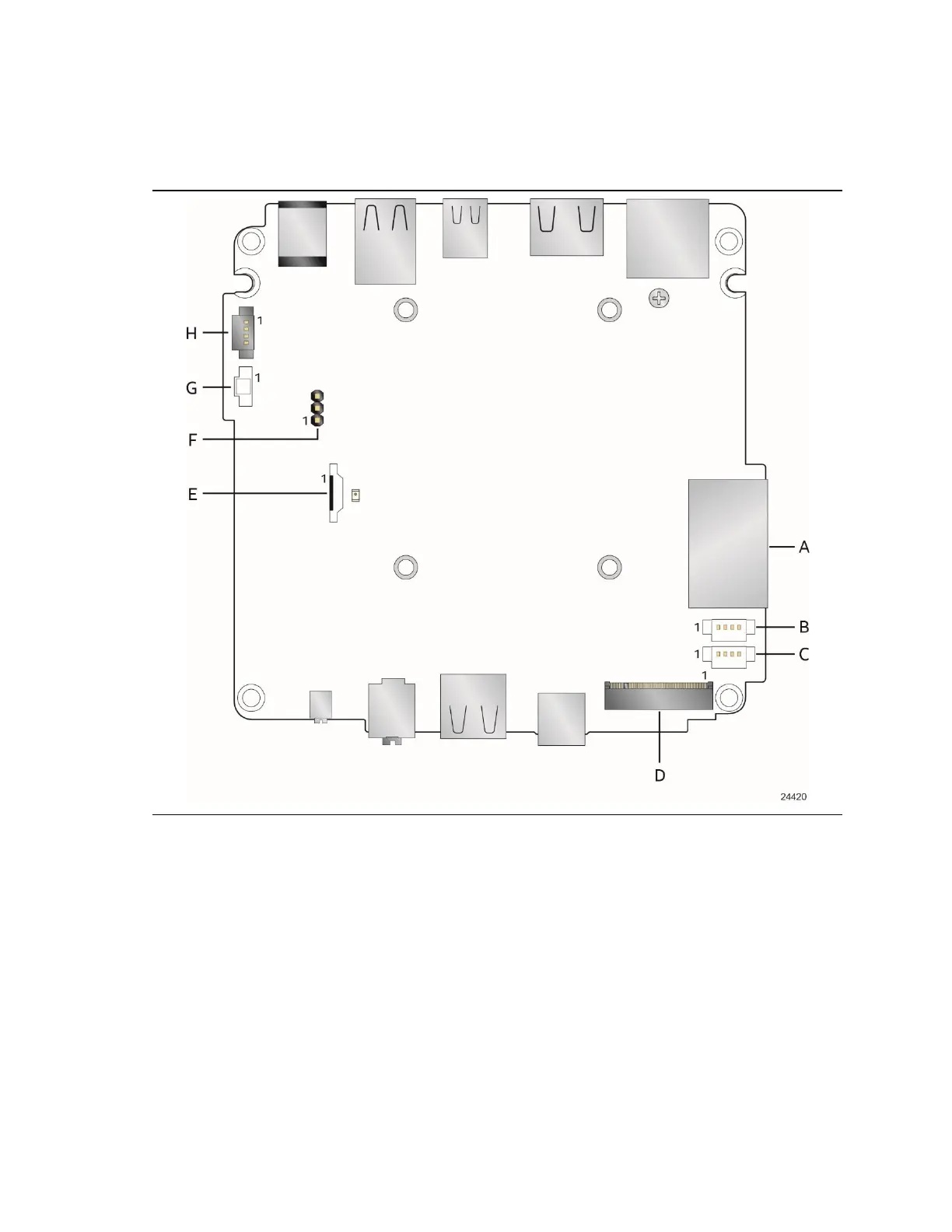

Figure 12 shows the locations of the connectors and headers on the bottom-side of the board.
Figure 12. Connectors and Headers (Bottom)
