Jumper Blocks Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
100 Revision 1.1
Intel order number G34153-003
7. Jumper Blocks
The server boards have several 3-pin jumper blocks that you can use to configure, protect, or
recover specific features of the server boards.
The following symbol identifies Pin 1 on each jumper block on the silkscreen: ▼

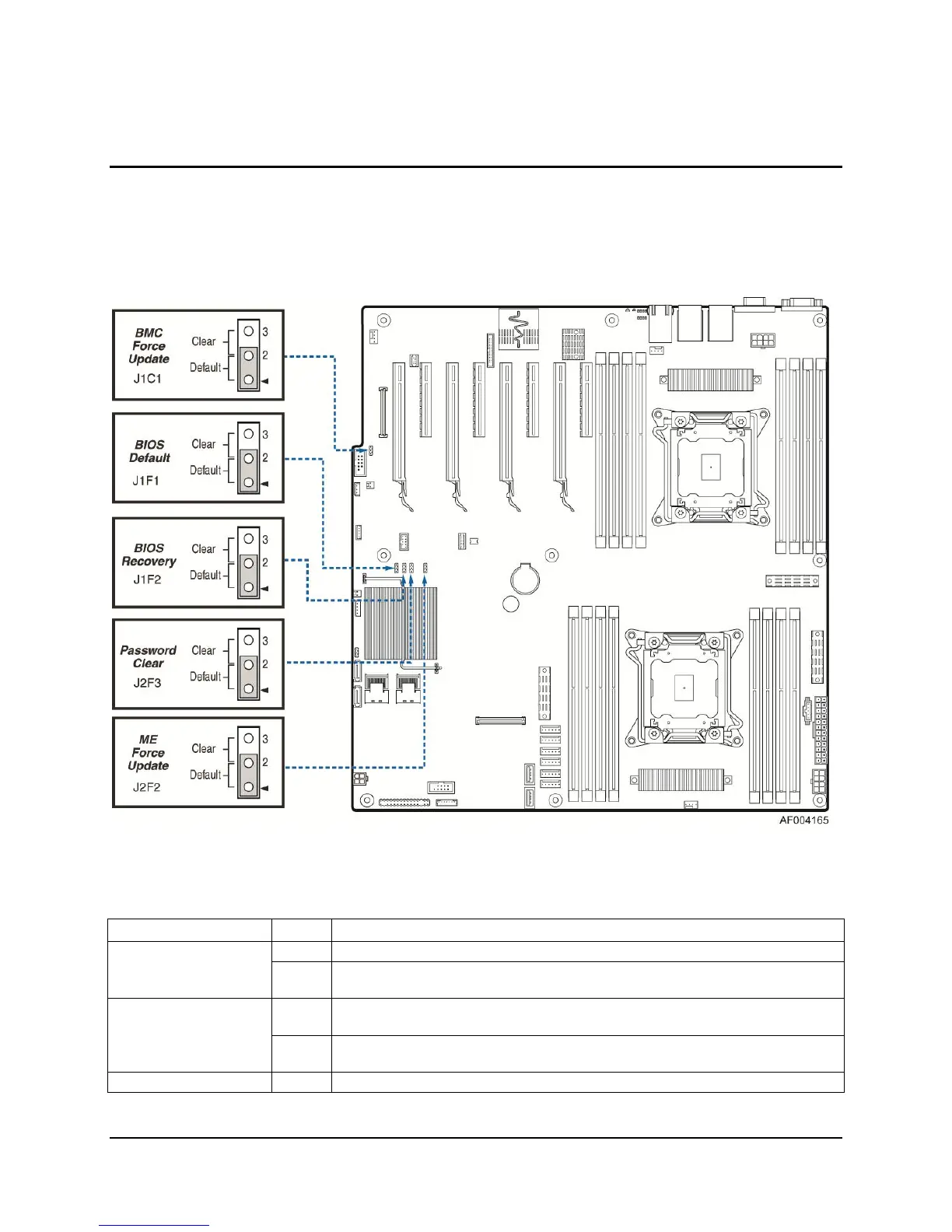

Figure 28. Jumper Blocks (J1C3, J1F1, J1F2, J2F3, J2F2)
Table 56. Server Board Jumpers (J1C3, J1F1, J1F2, J2F3, J2F2)
Jumper Name
Pins
System Results
J1F2: BIOS Recovery
1-2
Pins 1-2 should be connected for normal system operation. (Default)
2-3
The main system BIOS does not boot with pins 2-3 connected. The system only
boots from EFI-bootable recovery media with a recovery BIOS image present.
J1F1: Bios Default
(CMOS Clear)
1-2
These pins should have a jumper in place for normal system operation.
(Default)
2-3
If pins 2-3 are connected when AC power unplugged, the CMOS settings clear
in 5 seconds. Pins 2-3 should not be connected for normal system operation.
J2F2: ME Force
1-2
ME Firmware Force Update Mode – Disabled (Default)
