Intel® Server Board
S2600IP and Intel® Wo
rkstation Board W260
0CR
TPS
Product
Overview
Revision 1.1
7
Intel order numbe
r G34153
-
003

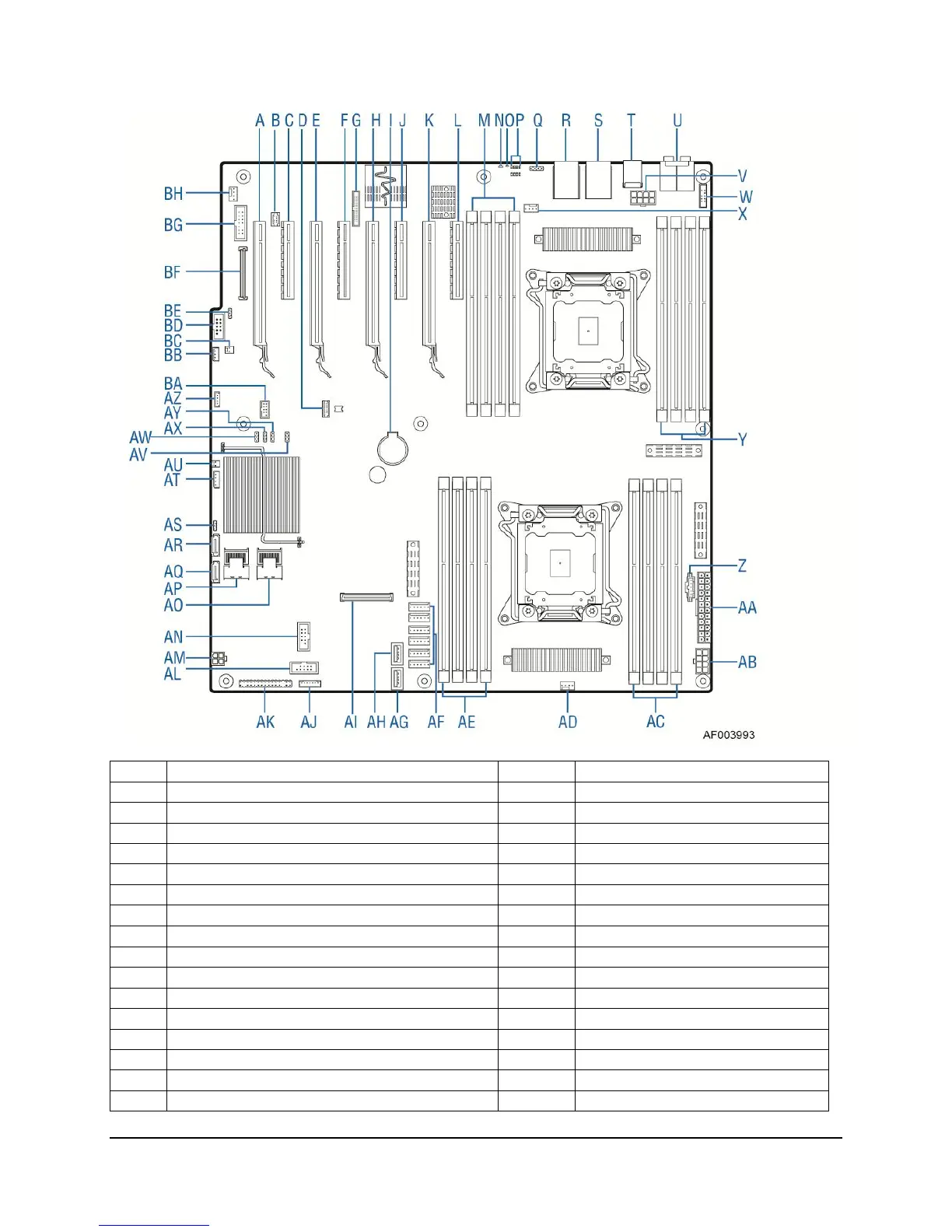

Callout
Description
Callout
Description
A
Slot 1, PCI Express* Gen3
AE
DIMM C1/C2/D1/D2
B
RMM4 Lite module
AF
System Fan connector 1/2/3/4/5/6
C
Slot 2, PCI Express* Gen3
AG
Type A USB connector
D
TPM
AH
Type A USB connector
E
Slot 3, PCI Express* Gen3
AI
ROC Module connector
F
Slot 4, PCI Express* Gen3
AJ
LCP connector
G
RMM4 Connector
AK
Front Panel connector
H
Slot 5, PCI Express* Gen3
AL
Front Panel USB connector
I
Battery
AM
Main Power 4-pin connector
J
Slot 6, PCI Express* Gen3
AN
1394b connector(W2600CR only)
K
Slot 7, PCI Express* Gen3
AO
MiniSAS Port B(4-
7)
L
Slot 8, PCI Express* Gen2
AP
MiniSAS Port A(0-
3)
M
DIMM E1/E2/F1/F2
AQ
SATA Port 1
N
Status LED
AR
SATA Port 0
O
ID
LED
AS
CPLD Update
P
Diagnostic LED
AT
IPMB
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
15
Chapter Outline
15
Server Board Use Disclaimer
15
2 Product Overview
16
Product Feature Set
17
Table 1. Product Feature Set
17
Main Board Connector and Component Layout
19
Figure 3. Intel ® Server Board S2600IP Major Components
20
Figure 1. Intel Server Board S2600IP
22
Figure 4. Intel ® Server Board S2600IP Rear I/O Layout
22
Main Board Rear I/O Layout
22
Table 74. Intel
22
Figure 5. Intel ® Workstation Board W2600CR Rear I/O Layout
23
Figure 6. Mounting Hole Locations (1 of 2)
24
Server Board Mechanical Drawings
24
Figure 7. Mounting Hole Locations (2 of 2)
25
Figure 8. Major Connector Pin-1 Locations (1 of 3)
26
Figure 9. Major Connector Pin-1 Locations (2 of 3)
27
Figure 10. Major Connector Pin-1 Locations (3 of 3)
28
Figure 11. Primary Side Keep-Out Zone
30
Figure 12. Primary Side Card-Side Keep-Out Zone
31
Figure 13. Second Side Keep-Out Zone
32
3 Functional Architecture
33
Figure 14. Intel ® Server Board S2600IP Functional Block Diagram
33
Processor Support
34
Processor Socket Assembly
34
Figure 15. Intel ® Workstation Board W2600CR Functional Block Diagram
34
Figure 16. Processor Socket Assembly
35
Figure 17. Processor Socket ILM
35
Processor Population Rules
36
Processor Initialization Error Summary
36
Table 2. Mixed Processor Configurations Error Summary
37
Processor Functions Overview
39
Intel ® Quickpath Interconnect
39
Integrated Memory Controller (IMC) and Memory Subsystem
40
Figure 18. Integrated Memory Controller Functional Block Diagram
40
Table 3. UDIMM Support Guidelines
41
Table 4. RDIMM Support Guidelines
42
Table 5. LRDIMM Support Guidelines
42
Table 6. DIMM Nomenclature
43
Figure 19. DIMM Slot Layout
44
Processor Integrated I/O Module (IIO)
46
Intel C600-A Chipset Functional Overview
47
Digital Media Interface (DMI)
48
PCI Express* Interface
48
Serial ATA (SATA) Controller
48
Serial Attached SCSI (SAS)/SATA (SCU) Controller
49
Ahci
49
Rapid Storage Technology
49
Table 7. Intel RAID C600 Upgrade Key Options
49
Table 75. Intel
49
Table 76. Intel
49
PCI Interface
50
Low Pin Count (LPC) Interface
50
Serial Peripheral Interface (SPI)
50
Compatibility Modules (DMA Controller, Timer/Counters, Interrupt Controller)
50
Advanced Programmable Interrupt Controller (APIC)
50
Universal Serial Bus (USB) Controllers
50
Gigabit Ethernet Controller
51
Rtc
51
Gpio
51
Enhanced Power Management
51
Manageability
51
System Management Bus (Smbus* 2.0)
51
Integrated NVSRAM Controller
52
Virtualization Technology for Directed I/O (Intel VT-D)
52
JTAG Boundary-Scan
52
Kvm/Serial over Lan (SOL) Function
52
On-Board SAS/SATA Support and Options
52
PCI Subsystem
53
Network Interface Controller
54
Network Interface
54
Table 8. Intel ® Server Board S2600Ip/Workstation Board W2600CR PCI Bus Segment Characteristics
54
I/O Module Support
55
Workstation Board W2600CR2L)
55
Figure 20. External RJ45 NIC Port LED Definition
55
SAS ROC Module Support
56
Figure 21. Supported I/O Module Options
56
HD Audio Support (Intel Workstation Board W2600CR Only)
57
Table 9. Supported Intel Integrated RAID Modules
57
USB3.0 Support (Intel ® Workstation Board W2600CR Only)
58
Figure 22. USB3.0 Discrete Host Controller Block Diagram
58
Table 10. Standard Speaker Channels
58
Ieee1394B Support (Intel ® Workstation Board W2600CR Only)
59
Figure 23. IEEE 1394B Discrete Host Controller Block Diagram
59
4 Platform Management Overview
60
Server Management Function Architecture
60
Feature Support
60
Basic and Advanced Features
62
Integrated BMC Hardware: Emulex* Pilot III
63
Table 11. Basic and Advanced Features
63
Server Management Functional Specifications
65
BMC Internal Timestamp Clock
65
Figure 24. Integrated BMC Hardware
65
System Event Log (SEL)
66
Sensor Data Record (SDR) Repository
66
Field Replaceable Unit (FRU) Inventory Device
66
BMC Beep Codes
66
Table 12. BMC Beep Codes
66
Diagnostic Interrupt (NMI) Button
67
BMC Watchdog
67
Table 13. NMI Signal Generation and Event Logging
67
Sensor Monitoring
68
Overview
68
Core Sensor List for EPSD Platforms Based Xeon Intel Xexeon Processor E5 4600/2600/2400/1600/1400 Product Families
68
BMC System Management Health Monitoring
70
Processor Sensors
70
Table 14. Supported BMC FW Health Sensor Offsets
70
Table 15. Processor Sensors
70
Table 16. Processor Status Sensor Implementation
71
Table 17. Supported ERR2 Timeout Sensor Offsets
72
Table 18. Supported CATERR Sensor Offsets
73
Thermal and Acoustic Management
74
4.4.1 Set Throttling Mode
74
4.4.2 Altitude
74
4.4.3 Set Fan Profile
74
Table 19. Support MSID Mismatch Sensor Offsets
74
4.4.4 Fan PWM Offset
75
4.4.5 Quiet Fan Idle Mode
75
4.4.6 Thermal Sensor Input for Fan Speed Control
75
Power Supply Status\Health Sensors
76
Figure 25. High-Level Fan Speed Control Process
76
Table 20. Supported Power Supply Status Sensor Offsets
76
System Event Sensor
77
Table 21. Support System Event Sensor Offsets
78
Table 22. Supported Firmware Update Status Sensor Offsets
78
Platform Management Interface
79
Channel Management
79
User Model
79
Table 23. Standard Channel Assignments
79
LAN Interface
80
Table 24. Supported RMCP+ Cipher Suites
80
Table 25. Supported RMCP+ Payload Types
81
Table 78. Intel
81
Table 26. Factory Configured PEF Table Entries
85
BMC Firmware Update
90
The BMC Firmware Release Number
90
Boot Recovery Mode
90
Force Firmware Update Jumper
91
Fast Firmware Update over USB
91
Advanced Management Feature Support
92
Enabling Advanced Management Features
92
Keyboard, Video, Mouse (KVM) Redirection
92
Table 27. Enabling Advanced Management Features
92
Media Redirection
93
Intel ® Intelligent Power Node Manager (NM)
95
Overview
95
EU Lot 6 Mode
96
5 System Security
98
BIOS Password Protection
98
Trusted Platform Module (TPM) Support
99
TPM Security BIOS
99
Physical Presence
100
TPM Security Setup Options
100
Figure 26. Setup Utility - TPM Configuration Screen
101
Intel Trusted Execution Technology
102
Table 28. Tsetup Utility - Security Configuration Screen Fields
102
6 Connector/Header Locations and Pin-Outs
104
Power Connectors
104
Main Power Connector
104
CPU Power Connectors
104
Add-In Card Power Connectors
104
Table 29. Main Power Connector Pin-Out
104
Table 30. CPU_1 Power Connector Pin-Out
104
Table 31. CPU_2 Power Connector Pin-Out
104
Front Panel Header and Connectors
105
Front Panel Header
105
Table 32. Add-In Slot Power Pin-Input ("OPT_12V_PWR")
105
Table 33. Front Panel Header Pin-Out
105
Front Panel USB Connector
106
Local Control Panel Connector
106
On Board Storage Connectors
106
SATA Connectors: 6Gbps
106
Table 34. Front Panel USB Connector Pin-Out
106
Table 35. Local Front Panel Connector Pin-Out
106
Table 36. SATA 6Gbps Connector Pin-Out
106
Multiport Mini-SAS/SATA Connectors
107
Table 37. Multiport SAS/SATA Connector Pin-Out ("SCU_0 (0-3)")
107
Table 38. Multiport SAS/SATA Connector Pin-Out ("SCU_1 (4-7)")
107
Intel ® RAID C600 Upgrade Key Connector
108
HSBP_I2C Header
108
HDD LED Header
108
Internal Type- a USB Connector
108
Table 39. Intel
108
Table 40. HSBP_I2C Header Pin-Out
108
Table 41. HDD LED Header Pin-Out
108
Table 42. Type-A USB Connector Pin-Out
108
Internal Eusb SSD Header
109
Management and Security Connectors
109
Rmm4_Lite Connector
109
RMM4_NIC Connector
109
Table 43. Eusb SSD Header Pin-Out
109
Table 44. Rmm4_Lite Connector Pin-Out
109
Table 45. RMM4_NIC Connector Pin-Out
109
TPM Connector
110
Pmbus* Connector
110
Chassis Intrusion Header
110
IPMB Connector
110
FAN Connectors
110
Table 46. TPM Connector Pin-Out
110
Table 47. Pmbus* Connector Pin-Out
110
Table 48. Chassis Intrusion Header Pin-Out
110
Table 49. IPMB Connector Pin-Out
110
CPU FAN Connector
111
System FAN Connectors
111
Serial Port and Video Connectors
111
Serial Port a Connector (DB9, for Intel ® Server Board S2600IP Only)
111
Table 50. 6-Pin System FAN Connector Pin-Out
111
Table 51. 4-Pin System FAN Connector Pin-Out
111
Table 52. CPU FAN Connector Pin-Out
111
Table 53. Serial Port a Connector Pin-Out
111
Serial Port B Connector
112
Video Connector (for Intel ® Server Board S2600IP Only)
112
Figure 27. Video Connector Pin-Out
112
Table 54. Serial Port B Connector Pin-Out
112
Table 55. Video Connector Pin-Out Details
112
Internal Video Header (for Intel ® Workstation Board W2600CR Only)
113
7 Jumper Blocks
114
Figure 28. Jumper Blocks (J1C3, J1F1, J1F2, J2F3, J2F2)
114
Table 56. Server Board Jumpers (J1C3, J1F1, J1F2, J2F3, J2F2)
114
BIOS Default and Password Reset Usage Procedure
115
Set BIOS to Default (Clearing the CMOS)
115
Clearing the Password
115
BIOS Recovery Jumper
116
Force BMC Update Procedure
116
ME Force Update Jumper
117
8 Intel Light Guided Diagnostics
119
5-Volt Stand-By LED
119
Fan Fault LED
119
CPU Fault LED
119
Figure 29. Stand by LED, Fan Fault LED and CPU Fault LED Location
120
DIMM Fault Leds
121
System ID LED, System Status LED and POST Code Diagnostic Leds
121
Figure 30. DIMM Fault Led's Location
121
Figure 31. Location of System Status, System ID and POST Code Diagnostic Leds
122
System ID LED
122
System Status LED
123
Table 57. System Status LED
123
POST Code Diagnostic Leds
124
Table 58. POST Code Diagnostic Leds
124
9 Design and Environmental Specifications
125
Products Design Specifications
125
Mtbf
125
Table 59. Server Board Design Specifications
125
Figure 2. Intel Workstation Board W2600CR
126
Table 60. Intel Server Board S2600IP MTBF Estimate
126
Table 61. Intel
126
Table 79. Intel
126
Table 80. Intel
126
Server Board Power Requirements
128
Figure 32. Power Distribution Block Diagram
128
Processor Power Support
129
Power Supply Output Requirements
129
Output Power/Currents
129
Cross Loading
129
Table 62. Intel
129
Table 63. Minimum Load Ratings
129
Standby Output
130
Voltage Regulation
130
Dynamic Loading
130
Table 64. Loading Conditions
130
Table 65.Voltage Regulation Limits
130
Table 66. Transient Load Requirements
130
Capacitive Loading
131
Grounding
131
Closed Loop Stability
131
Residual Voltage Immunity in Standby Mode
131
Common Mode Noise
131
Table 67. Capacitive Loading Conditions
131
Soft Starting
132
Zero Load Stability Requirements
132
Ripple/Noise
132
Timing Requirements
132
Figure 33. Differential Noise Test Setup
132
Table 68. Ripples and Noise
132
Figure 34. Output Voltage Timing
133
Table 69. Output Voltage Timing
133
Table 70. Turn On/Off Timing
133
Figure 35. Turn On/Off Timing (Power Supply Signals)
134
Appendix A: Integration and Usage Tips
135
Appendix B: BMC Sensor Tables
136
Table 71. Integrated BMC Core Sensors
138
Appendix C: Platform Specific BMC Appendix
161
Introduction
161
Product ID
161
IPMI Channel ID Assignments
161
ACPI S3 Sleep State Support
161
Processor Support for Intel Server Board S2600IP
161
Supported Chassis
161
Table 72. Intel Server Board S2600IP - BMC Channel Assignments
161
Chassis-Specific Sensors
162
Hot-Plug Fan Support
162
Fan Redundancy Support
162
Table 73. Intel Server Board S2600IP - Chassis-Specific Sensors
162
Fan Domain Definition
163
HSC Availability
165
Power Unit Support
166
Redundant Fans Only for Intel Server Chassis
166
Fan Fault LED Support
166
Memory Throttling Support
167
Introduction
167
Product ID
167
IPMI Channel ID Assignments
167
ACPI S3 Sleep State Support
167
Table 77. Intel Workstation Board W2600CR - BMC Channel Assignments
167
Processor Support for Intel Server Board W2600CR
168
Supported Chassis
168
Chassis-Specific Sensors
168
Hot-Plug Fan Support
168
Fan Redundancy Support
168
Board Specific Feature
168
Fan Domain Definition
168
HSC Availability
169
Power Unit Support
169
Redundant Fans Only for Intel Server Chassis
169
Fan Fault LED Support
169
Memory Throttling Support
169
Appendix D: POST Code Diagnostic LED Decoder
170
Figure 36. POST Code Diagnostic LED Decoder
170
Table 81. POST Progress Code LED Example
171
Table 82. POST Progress Codes
171
Table 83. MRC Progress Codes
173
Table 84. MRC Fatal Error Codes
174
Appendix E: POST Error Messages and Handling
176
Table 85. POST Error Codes and Messages
176
Table 86. POST Error Beep Codes
181
Table 87. Integrated BMC Beep Codes
182
Glossary
183
Reference Documents
186
Other manuals for Intel S1400SP
Guide
141 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Intel S1400SP and is the answer not in the manual?
Ask a question
Intel S1400SP Specifications
General
Brand
Intel
Model
S1400SP
Category
Motherboard
Language
English
Related product manuals
Intel S1400FP
141 pages
Intel S1200BT
122 pages
Intel S2400SC
161 pages
Intel S2600GZ
141 pages
Intel S2600IP
186 pages
S5000XVN - Workstation Board Motherboard
88 pages
S3200SHV - Entry Server Board Motherboard
128 pages
630 - Pentium 4 630 3.0GHz 800MHz 2MB Socket 775 CPU
54 pages
Intel DH55HC
86 pages
Intel DH67BL
94 pages
Intel DH61BE
88 pages
Intel D865GSA
64 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
