Functional Architecture Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS
44 Revision 1.1
Intel order number G34153-003
(W2600CR only supports 1 S/PDIF Out port) and two channels of Microphone In (Front/Rear).
The ALC889 is driven by the Intel
®
HD Audio Interface (Azalia) from Intel
®
C600-A chipset.

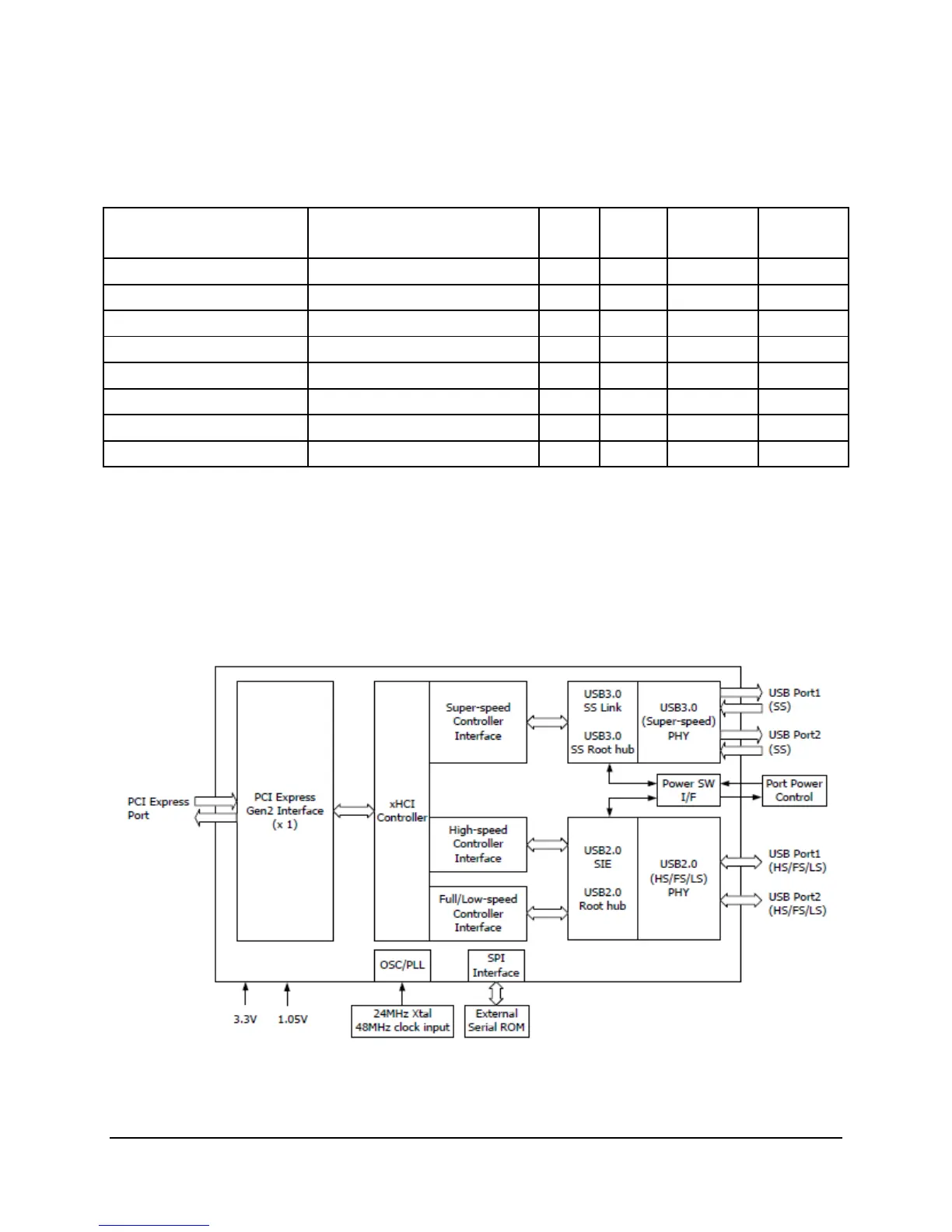

Table 10. Standard Speaker Channels
Channel name
Identifier
1.0
Mono
2.0
Stereo
5.1
Surround
7.1
Surround
Front Left
SPEAKER_FRONT_LEFT
No
Yes
Yes
Yes
Front Right
SPEAKER_FRONT_RIGHT
No
Yes
Yes
Yes
Front Center
SPEAKER_FRONT_CENTER
Yes
No
Yes
Yes
Low Frequency (Subwoofer)
SPEAKER_LOW_FREQUENCY
No
No
Yes
Yes
Back Left
SPEAKER_BACK_LEFT
No
No
Yes
Yes
Back Right
SPEAKER_BACK_RIGHT
No
No
Yes
Yes
Side Left
SPEAKER_SIDE_LEFT
No
No
No
Yes
Side Right
SPEAKER_SIDE_RIGHT
No
No
No
Yes
3.9 USB3.0 Support (Intel
®
Workstation Board W2600CR Only)
The Intel
®
Workstation Board W2600CR supports two USB3.0 SuperSpeed* ports, which is
required as a standard Workstation feature. The TI 2 port USB3.0 discrete host controller
TUSB7320 is used to meet this requirement. The TUSB7320 USB3.0 host controller complies
with Universal Serial Bus 3.0 Specification and Intel’s eXtensible Host Controller Interface
(xHCI).
Figure 22. USB3.0 Discrete Host Controller Block Diagram
