Intel® Server Board S2600IP and Intel® Workstation Board W2600CR TPS Functional Architecture
Revision 1.1 19
Intel order number G34153-003
3. Functional Architecture
The architecture and design of the Intel
®
Server Board S2600IP and Intel
®
Workstation Board
W2600CR is based on the Intel
®
C600-A chipset. The chipset is designed for systems based on
the Intel
®
Xeon
®
Sandy Bridge-EP Processor series in an LGA 2011 Socket with Intel
®
Quick
Path Interconnect (Intel
®
QPI) speed at 8GT/s.
This chapter provides a high-level description of the functionality associated with each chipset
component and the architectural blocks that make up the server boards.

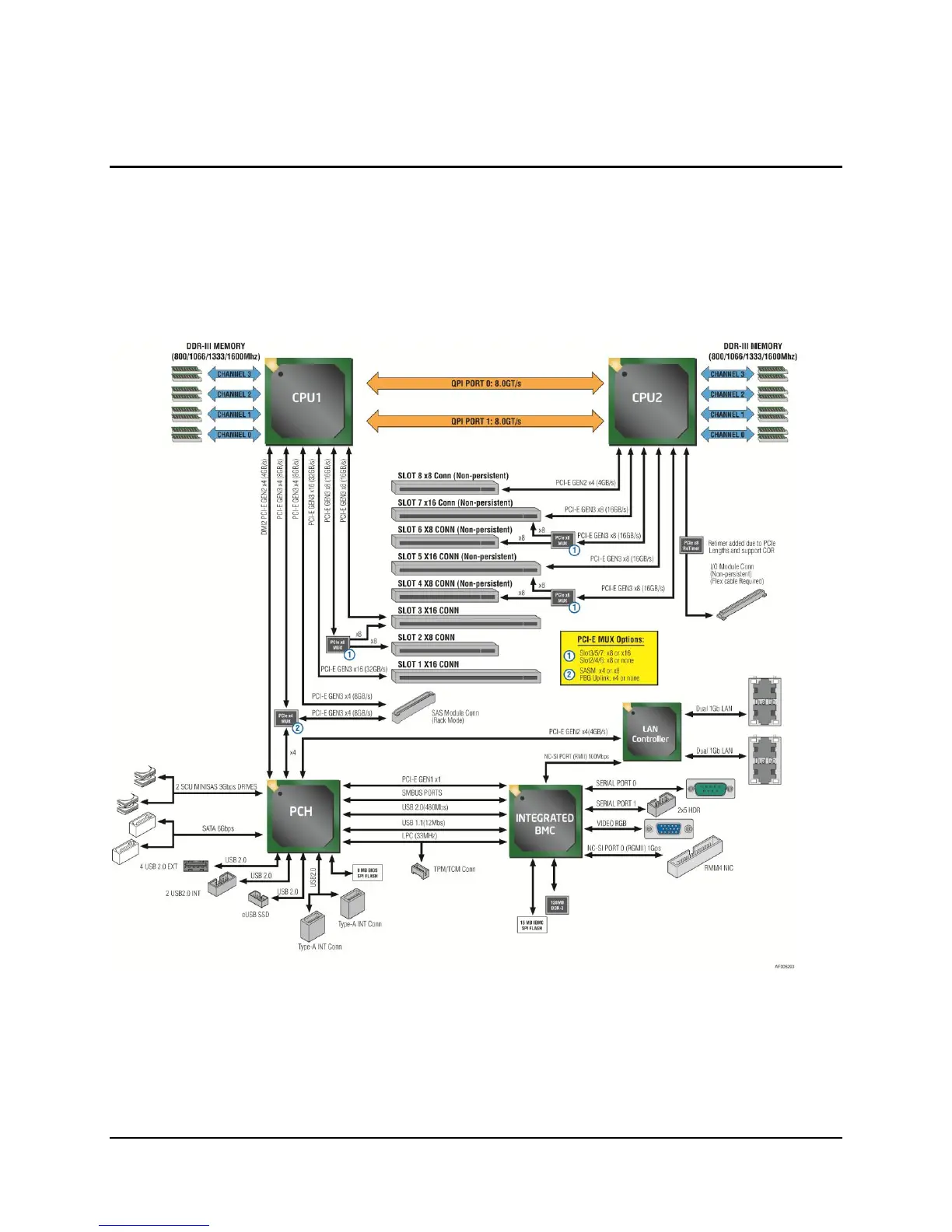

Figure 14. Intel
®
Server Board S2600IP Functional Block Diagram
