Intel S2600WF Series User Manual

Intel® Server S2600WF Product Family Configuration Guide
58

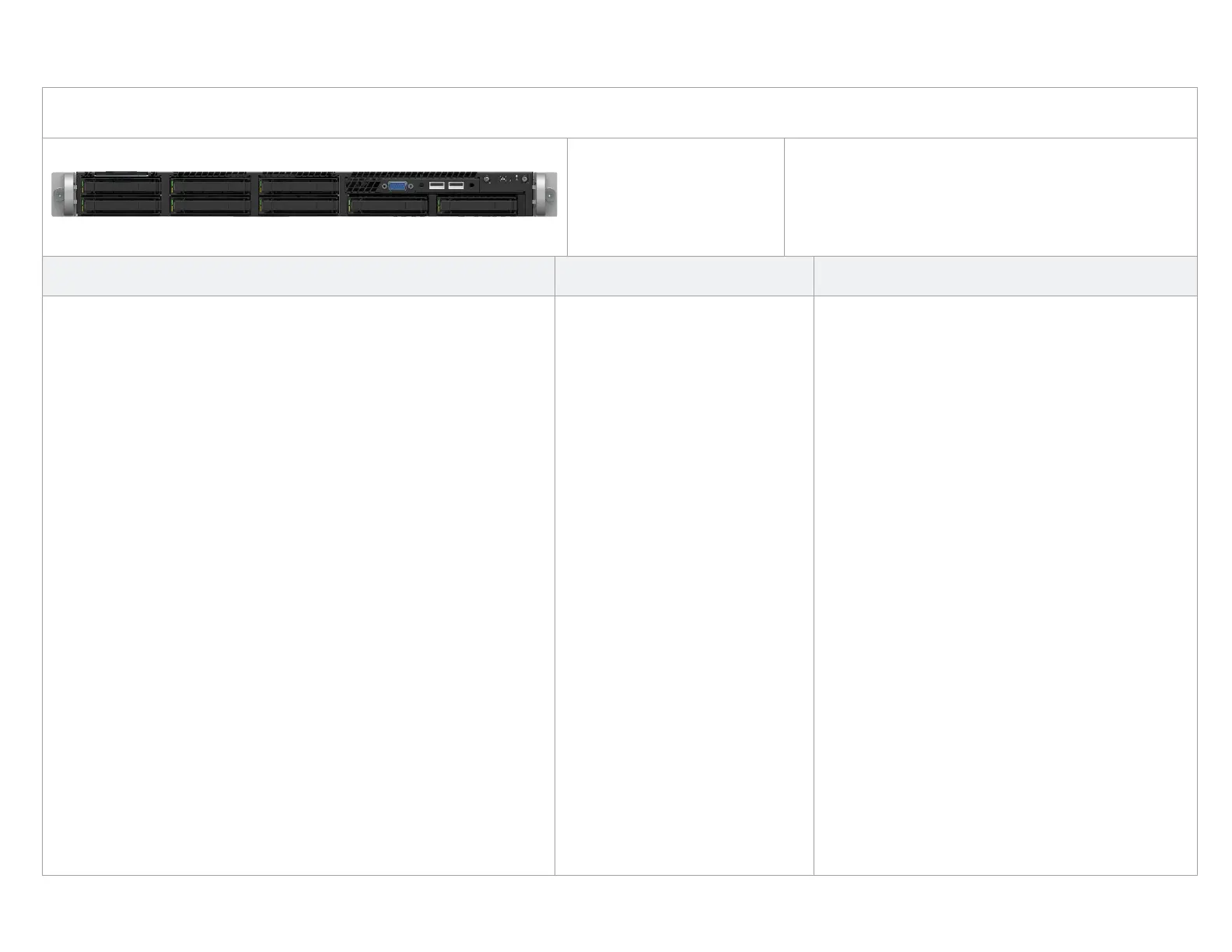

Table 24. Intel® Server System R1208WFQYSR product specifications and configuration requirements
Intel® Server System R1208WFQYSR
1U, Intel® Server Board S2600WFQR, 8 x 2.5” SSD SATA/SAS/NVMe* front mount drives
iPC
R1208WFQYSR
MM#
986059
UPC
00735858406918
EAN
5032037151177
MOQ
1
Product type
L6 integrated system
Chassis form factor
1U rack mount
Packaged gross wt.
21.4 kg (47.1 lb)
Un-packaged net wt.
13.1 kg (28.9 lb)
Chassis dimensions
712 x 439 x 43.2 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 1U chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFQR (Intel® QAT support) – iPC S2600WFQR
(2) – Riser card assembly with 1 slot PCIe x16 riser card – iPC F1UL16RISER3
(8) – 2.5” hot-swap drive bays with drive carriers and drive blanks. Includes:
o (1) SAS/NVMe* Combo backplane – iPC F1U8X25S3PHS
o (8) 2.5” hot swap drive tool less carriers – iPC FXX35HSCAR3
(1) – Pre-installed standard control panel assembly
(board only – iPC FXXFPANEL2)
o 260 mm front panel cable – iPN J25698-xxx
(1) – Pre-installed front I/O panel assembly (1x VGA and 2x USB)
o 620 mm USB 3.0 cable – iPN H76899-xxx
o 400 mm video cable – iPN H62114-xxx
(1) – 200mm backplane I2C cable – iPN H91170-xxx
(1) – 650mm mini SAS HD Cable – iPC AXXCBL650HDHRT
(1) – 850mm mini SAS HD cable – iPC AXXCBL850HDHRT
(1) – 400mm backplane power cable – iPN H82099-xxx
(1) – 290 mm Intel QAT cable – iPN J61138-xxx
(1) – Air duct – iPN H90054-xxx
(6) – Dual rotor system fans – iPC FR1UFAN10PW
(1) – 1100 W power supply module - iPC AXX1100PCRPS
(2) – CPU heat sinks, 39 fin passive – iPN J39509-xxx
(2) – CPU heat sink “No CPU” label inserts – iPN J16115-xxx
(2) – Standard CPU carriers – iPN H72851-xxx
(8) – DIMM slot blanks – iPN G75158-xxx
(1) – Chassis Stiffener Bar – iPN J16623-xxx
(1) – Power supply bay blank insert
(2) – AC power cord retention strap assembly – iPN H23961-00x
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
• (1) or (2) 1
st
or 2
nd
Intel® Xeon®
processor Scalable family
• ECC DDR4 memory (RDIMM or
LRDIMM)
Note: 4-port mini-SAS HD connectors are present on
S2600WFQ but are not configured as SATA; these cables
are used only for Intel® QAT. An add-in SAS card or
module is needed to support SATA/SAS front devices.
Note: By default the front drive bays are cabled to
onboard SATA only ports. An add-in SAS card or module
is needed to support SAS devices.
• Second 1100 W AC power supply module to support
power redundancy – iPC AXX1100PCRPS
• Intel® Ethernet Network Adapter for OCP* - See
Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel® RAID
Maintenance Free Backup unit - See Chapter 5.5 for
available options
• SAS Data cable – Depending on the location of the SAS
Data controller, a new data cable may be necessary.
See Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe* drive) - See
Chapter 4
• SATA upgrade key for Intel® Embedded Server
Technology 2 RAID 5 support – iPC RKSATA4R5
• Storage drives
o Up to (8) SAS/SATA/NVMe drives supported
• DDR4-compatible Intel® Optane™ DC persistent
memory module (requires an installed 2
nd
Gen Intel
Xeon Scalable processor)
See Chapters 5 and 6 for all available accessory options.

Intel S2600WF Series Specifications

General

Form Factor	2U rackmount
Memory Support	DDR4 ECC Registered DIMMs
Chipset	Intel C621
Storage Options	SATA, SAS, NVMe (depending on the specific model)
Management	Intel Node Manager
Product Type	Server Motherboard / System
CPU Socket Type	LGA 3647
Memory Type	DDR4 ECC Registered
Storage Controllers	Intel VROC
SATA Ports	10 SATA3 ports
Network Controller	Intel i350-AM4
Expansion Slots	7 x PCIe 3.0 slots (x16, x8, x4)
SAS Ports	Support through optional add-on cards
