Intel S2600WF Series User Manual

Intel® Server S2600WF Product Family Configuration Guide
113
5.4 Intel® Ethernet Network Adapters for OCP*
The Intel® S2600WF product family includes support for a number of optional OCP* modules that install onto proprietary connectors on the server
board leaving all available PCIe* add-in cards slots available for other add-in card options.

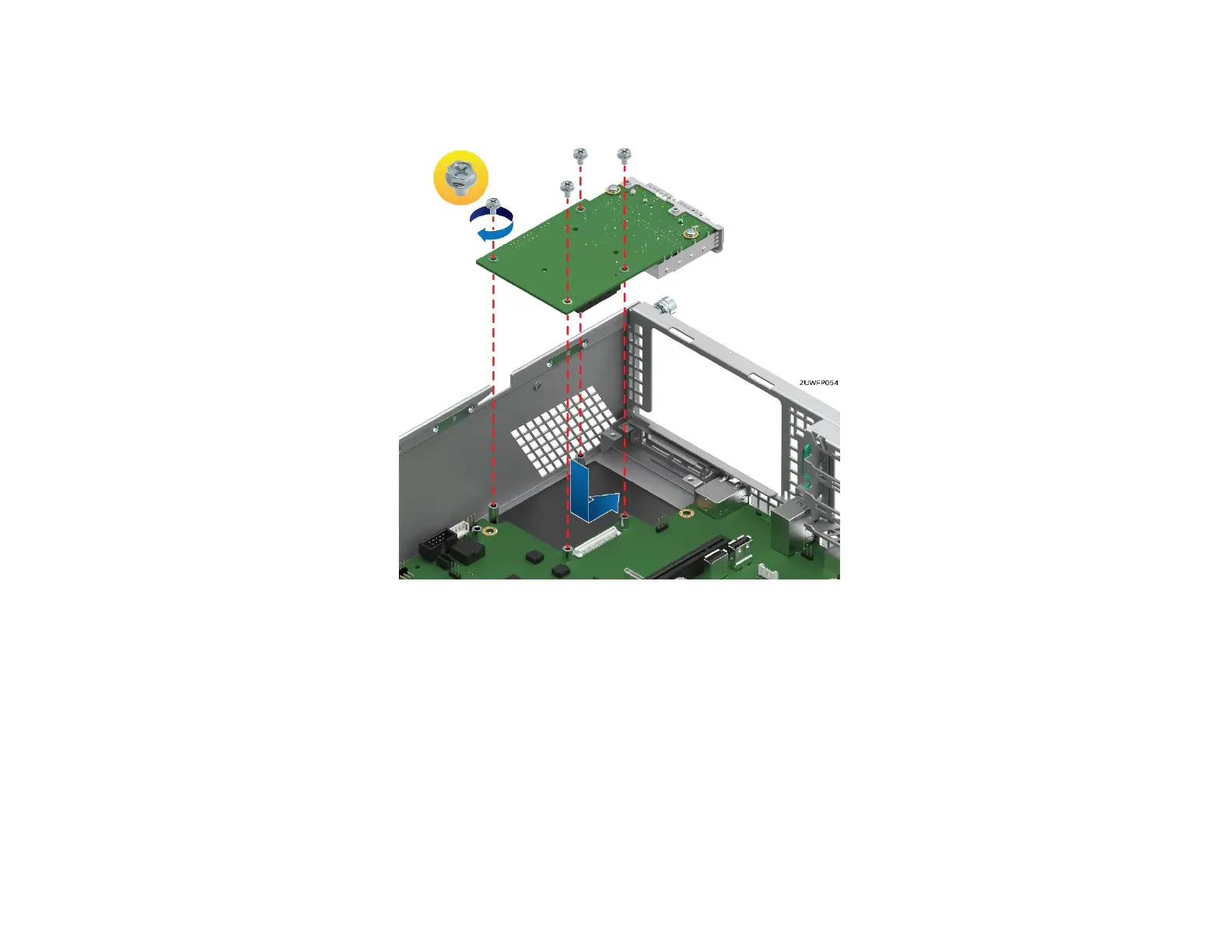

Figure 34. Intel® Ethernet Network Adapter for OCP* installation

Intel S2600WF Series Specifications

General

Form Factor	2U rackmount
Memory Support	DDR4 ECC Registered DIMMs
Chipset	Intel C621
Storage Options	SATA, SAS, NVMe (depending on the specific model)
Management	Intel Node Manager
Product Type	Server Motherboard / System
CPU Socket Type	LGA 3647
Memory Type	DDR4 ECC Registered
Storage Controllers	Intel VROC
SATA Ports	10 SATA3 ports
Network Controller	Intel i350-AM4
Expansion Slots	7 x PCIe 3.0 slots (x16, x8, x4)
SAS Ports	Support through optional add-on cards
