4.7 2U 2.5” Front Mount Drive Bay Cable Guide
The front drive bay of the 2U system can support up to three 2.5” x 8-drive bay modules providing support for the following system configurations: 8
drives (R2208), 16 drives (R2208 + 8 Drive Accessory Kit), or 24 drives (R2224). Each of the three drive bay modules is identified by number as shown
below. All eight drives of the standard 8 x 2.5” combo backplane can support SAS, SATA, and NVMe drive types. The backside (Cable connector side)
of the standard combo backplane will include two 4-port 8643 Mini-SAS HD data connectors (Ports 0 – 3 & Ports 4 – 7) for SAS/SATA support, and
eight PCIe OCuLink connectors for NVMe support (one connector for each PCIe NVMe SFF drive). Each OCuLink connector is labeled with a Drive ID (0
– 7) which corresponds to a matching drive interface connector on the front side (drive interface side) of the backplane.
Note: The dual port SAS backplane option includes four 4-port 8643 mini-SAS HD connectors and does not have support for PCIe NVMe drives.

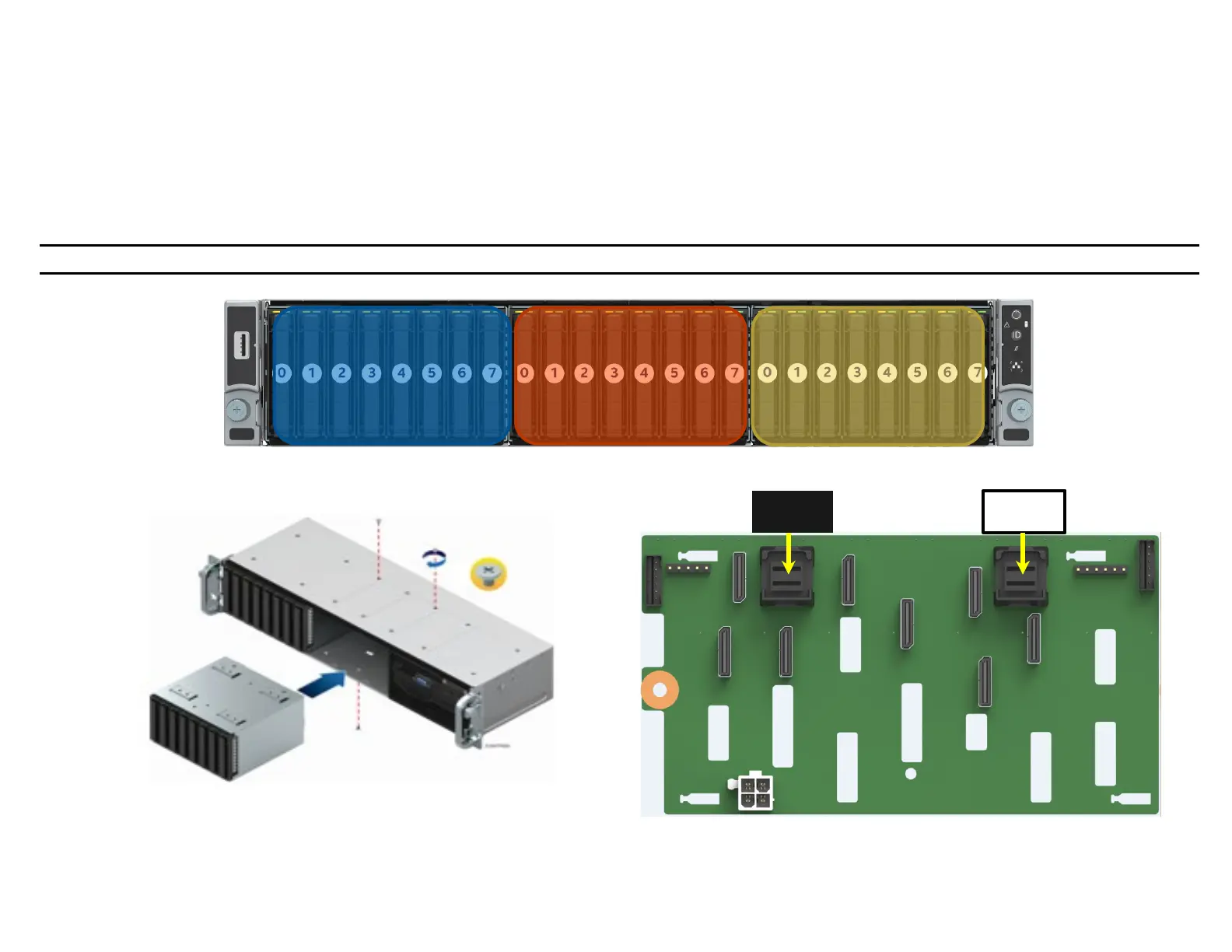

Figure 28.2.5” front mount drive bay and 8 x 2.5” combo hot-swap backplane
Bay #1
Drives 0 - 7
Bay #2
Drives 8 - 15
Bay #3
Drives 16 - 23
8 x 2.5” Combo Hot Swap Backplane – SATA/SAS/NVMe*
SATA/SAS
Ports 4 - 7
SATA/SAS
Ports 0 - 3
PCIe #0
PCIe #6
PCIe #7
PCIe #5
PCIe #4
PCIe #3
PCIe #2
PCIe #1
