Intel® Server S2600WF Product Family Configuration Guide
91
4.3 1U 4 x 3.5” – R1304WFxxx SAS/SATA Data Cable Guide

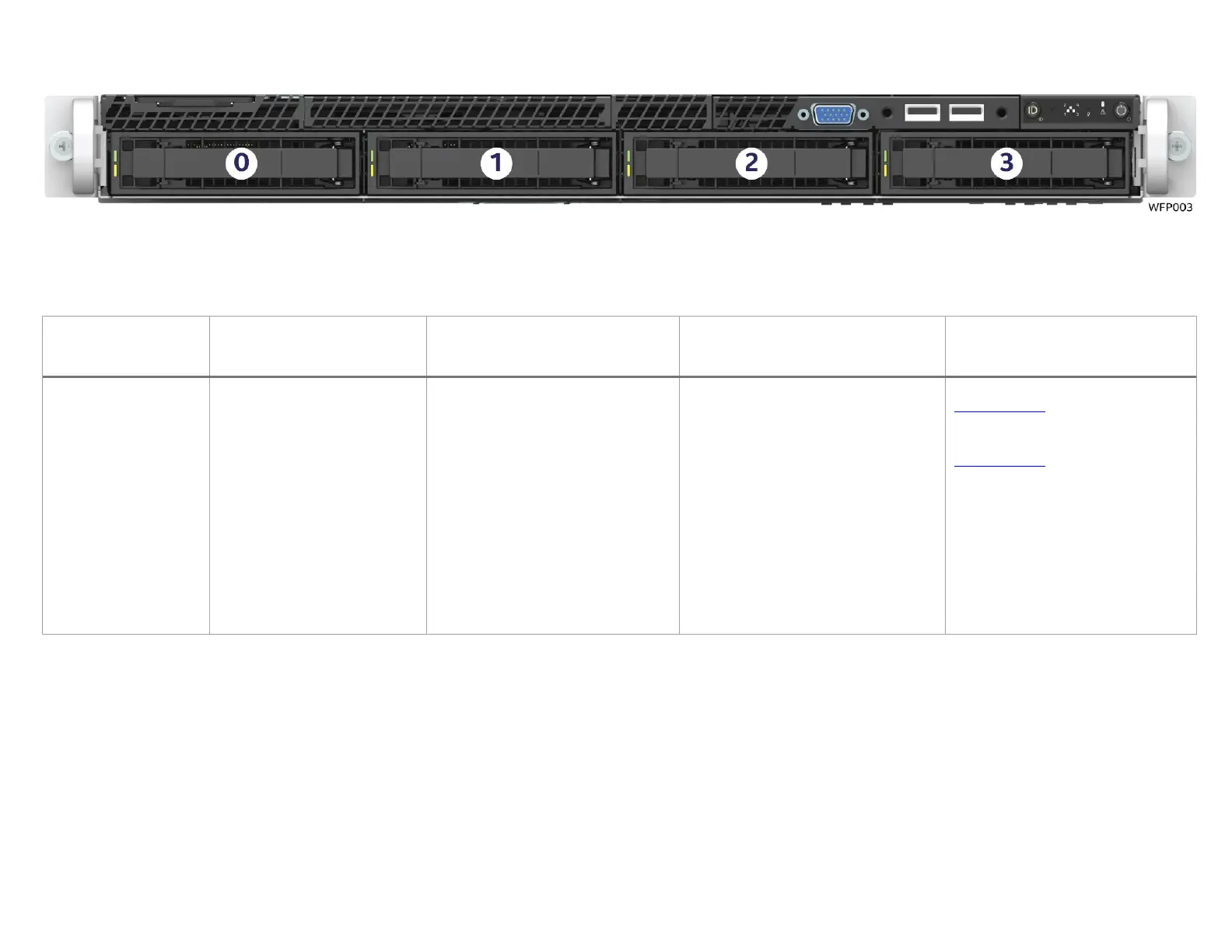

Figure 23. R1304WFxxx SAS/SATA backplane (no NVMe* drive support)
Table 53. Data cable guide for Intel® Server System R1304WFxxx
System Configuration
Drive Support
SATA
Onboard Mini-SAS HD SATA
Connector to Backplane (BP)
SAS
Mezzanine 12 Gb SAS ROC Module to
Backplane (BP)
SAS
12 Gb SAS RAID PCIe* add-in card
to Backplane (BP)
R1304WF…
4 x 3.5”
6 Gb SATA all drives
12 Gb SAS all drives
SATA 0-3

BP 0-3
850 mm HR --- HD
AXXCBL850HDHRT
L6 system ships with 1 cable
The following cable is required for
Mezzanine SAS ROC modules with
Horizontal connectors
SAS Mezz

BP 0-3
800 mm HD --- HD
AXXCBL800HDHD
The following cable is required for
Mezzanine SAS ROC modules with
Vertical connectors
AXXCBL850HDHRS
From Riser #1
SAS PCIe

BP 0-3
1
875 or 950 mm HD --- HD
From Riser #2
SAS PCIe

BP 0-3
1
730 or 875 mm HD --- HD
From data above, select appropriate
cable kits from list below:
See note below
AXXCBL730HDHD
AXXCBL875HDHD
AXXCBL950HDHD
1
1 or 2 cable lengths may be specified for a PCIe* add-in card. Generally, if the cable connector of the add-in card is located on the back edge of the card, a shorter cable is specified.
Cable connectors on the top edge or near the front of the add-in card will require the longer cable length.

Intel S2600WF Series Specifications

General

Form Factor	2U rackmount
Memory Support	DDR4 ECC Registered DIMMs
Chipset	Intel C621
Storage Options	SATA, SAS, NVMe (depending on the specific model)
Management	Intel Node Manager
Product Type	Server Motherboard / System
CPU Socket Type	LGA 3647
Memory Type	DDR4 ECC Registered
Storage Controllers	Intel VROC
SATA Ports	10 SATA3 ports
Network Controller	Intel i350-AM4
Expansion Slots	7 x PCIe 3.0 slots (x16, x8, x4)
SAS Ports	Support through optional add-on cards
