Intel® Server S2600WF Product Family Configuration Guide
84
4.2 1U/2U Server System SAS/SATA/NVMe* Cable Kits
Product tables in this section reference specific SAS/SATA and NVMe cables. Different cable kits are offered to support specific system
configurations. The product order code for each cable kit is made up of a string of letters and numbers to identify the type of cable included in the kit.
The following table identifies the different data cable connector types and the identifiers used in the cable kit product codes.

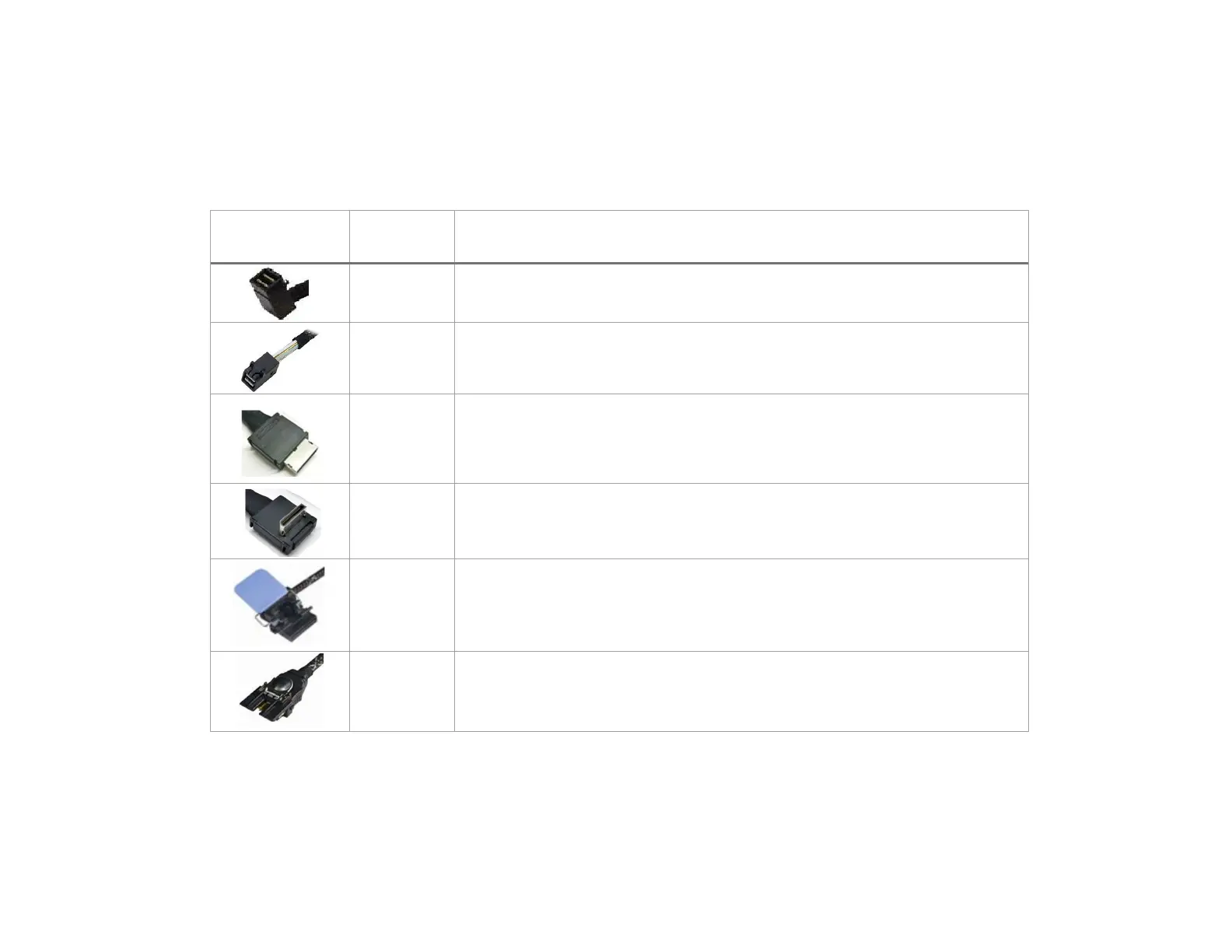

Table 51.Data cable connector identification
Connector Image
Cable Code
Description
HR
Right angle SFF-8643 mini SAS HD connector
HD
Straight SFF-8643 mini SAS HD connector
CV
Straight NVMe* OCuLink SFF-8611 connector
CR
Right angle NVMe* OCuLink SFF-8611 connector
R1
L1
IFT Carrier card to Fabric Processor (Fabric Processor side) connector
R1 = Right angle, right exit
L1 = Right angle, left exit
IFP
IFT Carrier card to Fabric Processor (Add-in Carrier Board/Mezzanine side) connector

Intel S2600WF Series Specifications

General

Form Factor	2U rackmount
Memory Support	DDR4 ECC Registered DIMMs
Chipset	Intel C621
Storage Options	SATA, SAS, NVMe (depending on the specific model)
Management	Intel Node Manager
Product Type	Server Motherboard / System
CPU Socket Type	LGA 3647
Memory Type	DDR4 ECC Registered
Storage Controllers	Intel VROC
SATA Ports	10 SATA3 ports
Network Controller	Intel i350-AM4
Expansion Slots	7 x PCIe 3.0 slots (x16, x8, x4)
SAS Ports	Support through optional add-on cards
