Intel® Server S2600WF Product Family Configuration Guide
110
5.2.2 2U Riser Card Options

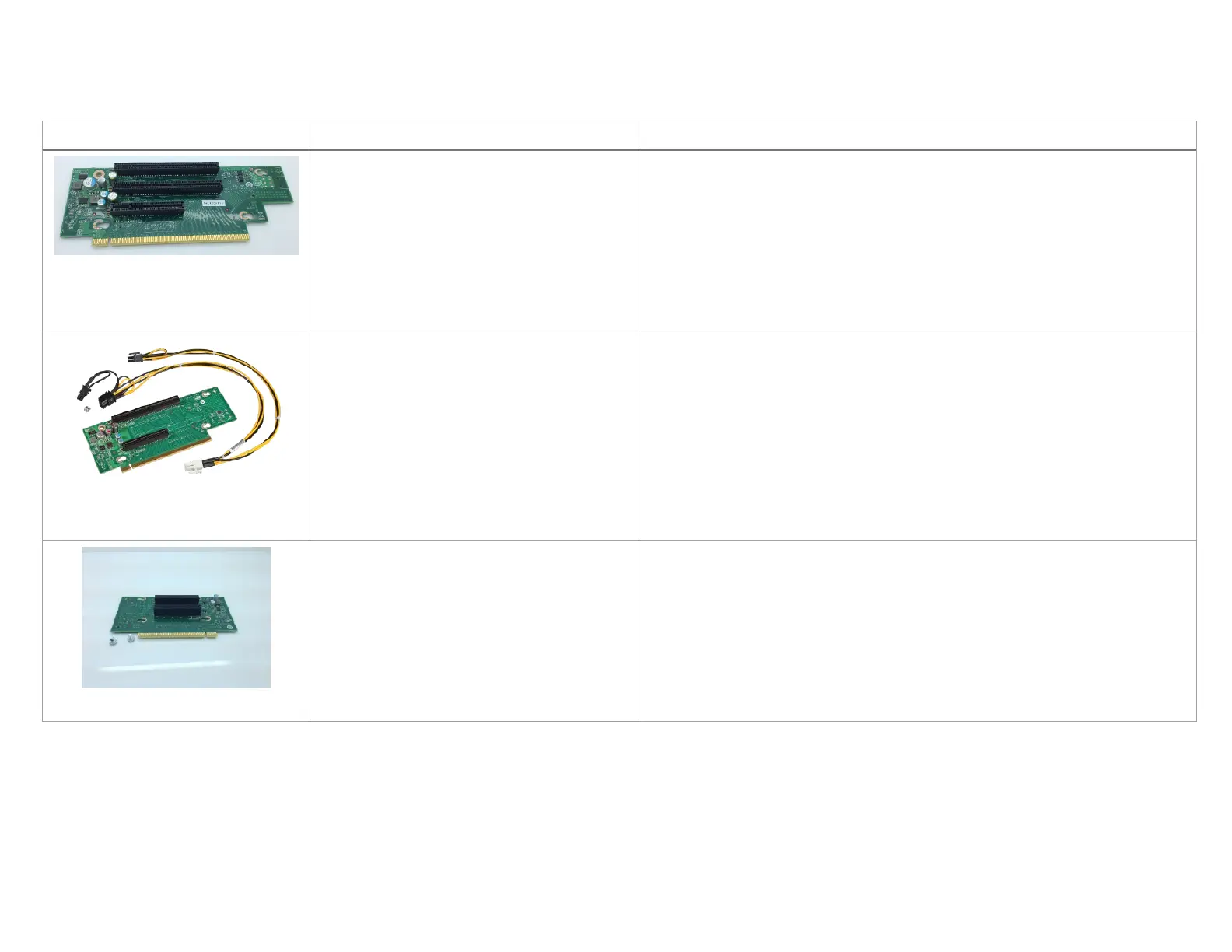

Table 69. 2U riser card options
2U 3-Slot PCIe* Riser Card
2U building block/spare FRU
2U accessory kit
Riser card option for riser slots #1 and #2.
Each three-slot riser card assembly has support for up to two full height full length
add-in cards (top and middle slots) and one full height ½ length add-in card (bottom
slot).
• Slot 1 (top) – PCIe* x8 elec, x16 mechanical
• Slot 2 (middle) – PCIe* x8 elec, x16 mechanical
• Slot 3 (bottom) – PCIe* x8 elec, x8 mechanical
Kit includes: (1) riser card PCBA
2U 2-Slot PCIe* Riser Card
2U building block/spare FRU
2U accessory kit
Riser card option for riser slots #1 and #2. Required for Intel® Xeon Phi™ coprocessor
or high power PCIe* add-in card support.
Each two-slot riser card assembly has support for one full-height full-length add-in
card (top slot) and one full-height half-length add-in card (bottom slot).
• Slot 1 (top) – PCIe* x16 elec, x16 mechanical
• Slot 2 (bottom) – PCIe* x8 elec, x8 mechanical
Kit includes:
(1) Riser card PCBA
(1) 12 V AUX power cable (to provide additional 12 V power for high power PCIe add-
in cards that require it)
2U 2-Slot Short Riser Card
2U building block/spare FRU
2U accessory kit
Riser card option for riser slot #3 only.
Provided to support up to two additional PCIe* add-in card slots for 2U server
configurations. The available riser card option is designed to support low profile add-
in cards only.
• Slot 1 (top) – PCIe* x4 elec, x8 mechanical
• Slot 2 (bottom) – PCIe* x8 elec, x8 mechanical
Kit includes:
(1) Riser card PCBA
