Intel S2600WF Series User Manual

Intel® Server S2600WF Product Family Configuration Guide
81

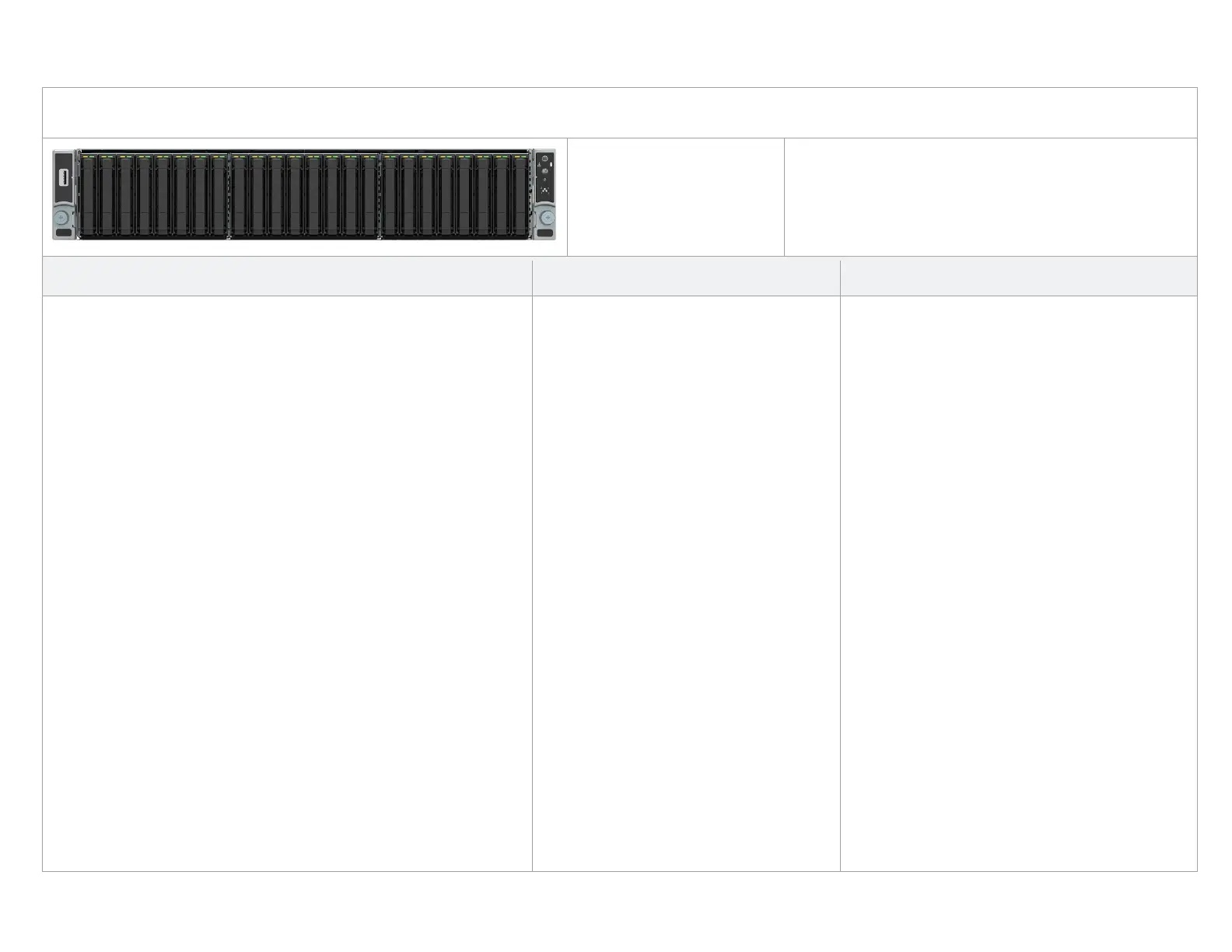

Table 46. Intel® Server System R2224WFTZSR product specifications and configuration requirements
Intel® Server System R2224WFTZSR
2U, Intel® Server Board S2600WFTR, 12 x 3.5” HDD or 12 x 2.5” SSD SATA/SAS front mount drives
iPC
R2224WFTZSR
MM#
986051
UPC
00735858406864
EAN
5032037151122
MOQ
1
Product type
L6 integrated system
Chassis form factor
2U rack mount
Packaged gross wt.
24.1 kg (53.1 lb)
Un-packaged net wt.
17.6 kg (38.6 lb)
Chassis dimensions
712 x 439 x 89 mm (L x W x H)
Package dimensions
983 x 577 x 260 mm (L x W x H)
Included
Required Items (sold separately)
Optional Accessories (sold separately)
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFTR (dual 10 GbE LAN) – iPC S2600WFTR
(2) – PCIe* riser card brackets. Includes:
o (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
o (1) 2-slot low profile PCIe* riser card – iPC A2UX8X4RISER
(24) – 2.5” hot-swap drive bays with drive carriers and blanks. Includes:
o (3) SAS/NVMe combo backplane – iPC F2U8X25S3PHS
o (24) 2.5” hot-swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Storage rack handle assembly – iPC A2UHANDLKIT
o 1 set storage rack handles
o Mini front panel (board only – iPN G28538-xxx)
o 410 mm front panel cable – iPN H26893-xxx
o 640 mm front panel USB 2.0 cable iPN H20005-xxx
(1) – 250 mm backplane I2C cable – iPN H91166-xxx
(2) – 75 mm backplane to backplane I2C jumper cable – iPN H91163-xxx
(2) – 730 mm mini SAS HD VT-VT cable – iPC AXXCBL730HDHD
(4) – 875 mm mini SAS HD VT-VT cable – iPC AXXCBL875HDHD
(1) – 400/525/675 mm backplane power cable – iPN H82108-xxx
(1) – Standard 2U air duct – iPN H90554-xxx
(6) – Hot-swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC power supply module – iPC AXX1300TCRPS
(1) – Power supply bay blank insert
(2) – AC Power cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink “NO CPU” Mylar* spacer insert – iPN J16115-XXX
(2) – Standard CPU carrier – iPN H72851-xxx
(1) – 3x Intel® RAID Maintenance Free Backup unit mounting bracket –
iPN H18238-00x
(1) – 250 mm fixed mount SSD power cable – iPN J29245-xxx
Spares for each screw type included
• Power cord(s) – See Section 5.6
• Rack mount kit – See Section 5.7
• (1) or (2) 1
st
or 2
nd
Intel® Xeon® processor
Scalable family
• ECC DDR4 memory (RDIMM or LRDIMM)
Note: By default the front drive bays are cabled to
onboard SATA only ports. An add-in SAS card or
module is needed to support SAS devices.
• Second 1300W AC power supply module to
support power redundancy – iPC AXX1300TCRPS
• Intel® Ethernet Network Adapter for OCP* - See
Chapter 5.4 for available options
• Intel® 12G SAS RAID module and Intel® RAID
Maintenance Free Backup unit - See Chapter 5.5
for available options
• SAS data cables – Depending on the location of
the SAS data controller, new data cables may be
necessary. See Chapter 4.
• PCIe* OCuLink data cables (1 per NVMe* drive) -
See Chapter 4
• SATA upgrade key for Intel® Embedded Server
Technology 2 RAID 5 support – iPC RKSATA4R5
• Rear mount hot-swap drive bay accessory kit –
iPC A2UREARHSDK2
• 4-port PCIe Gen3 x8 switch add-in card –
iPC AXXP3SWX08040
• 8-port PCIe Gen3 x8 switch add-card –
iPC AXXP3SWX08080
• Storage drives
• DDR4-compatible Intel® Optane™ DC persistent
memory module (requires an installed 2
nd
Gen
Intel Xeon Scalable processor)
See Chapters 5 and 6 for all available accessory
options.
