Intel® Server Board S3420GP User Guide 23

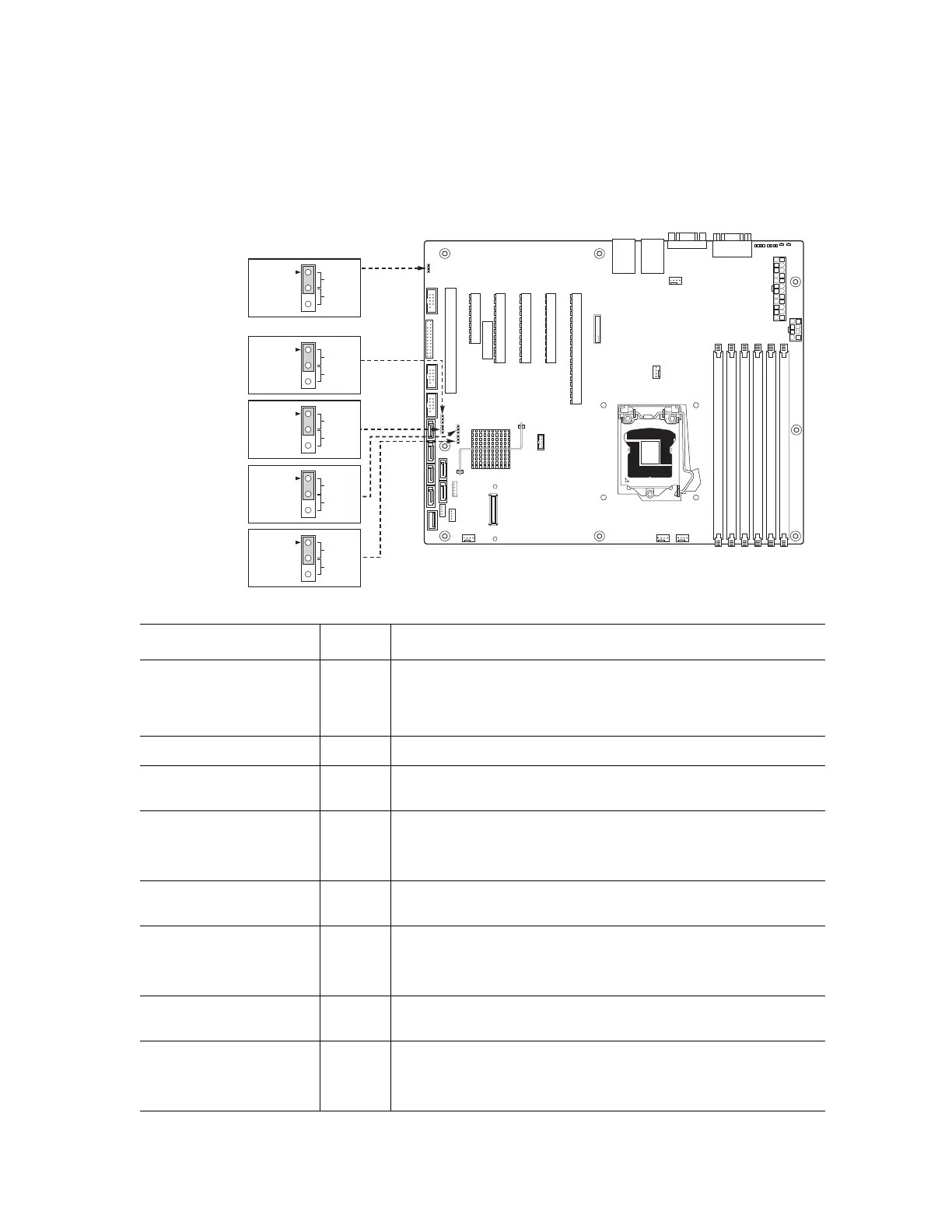

Configuration Jumpers
3
2
Default
CLEAR
CMOS
J1F5
CMOS
Clear
3
2
Default
Password
Clear
J1F2
Password
Clear
3
2
Default
Recover
J1F3
BIOS
Recovery
3
2
Default
Enabled
J1F1
ME
Force
Update
3
2
Default
Enabled
J1A2
BMC
Force
Update
Jumper Name Pins What will occur during a system reset..
J1A2: BMC Force Update
(Intel
®
Server Board
S3420GPLX and
S3420GPLC)
1-2 BMC Firmware Force Update Mode — Disabled (Default)
2-3 BMC Firmware Force Update Mode — Enabled
J1F2: Password Clear 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered, administrator and user passwords will
be cleared on the next reset.
NOTE: These pins should not be jumpered for normal operation.
J1F5: CMOS Clear 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 If these pins are jumpered, the CMOS settings are cleared on the
next reset.
NOTE: These pins should not be jumpered for normal operation.
J1F3: BIOS Recovery 1-2 These pins should have a jumper in place for normal system
operation. (Default)
2-3 The main system BIOS will not boot with these pins jumpered.
NOTE: The system will boot from EFI-bootable recovery media
with a recovery BIOS image.
