Intel® Server Board S3420GP User Guide 43

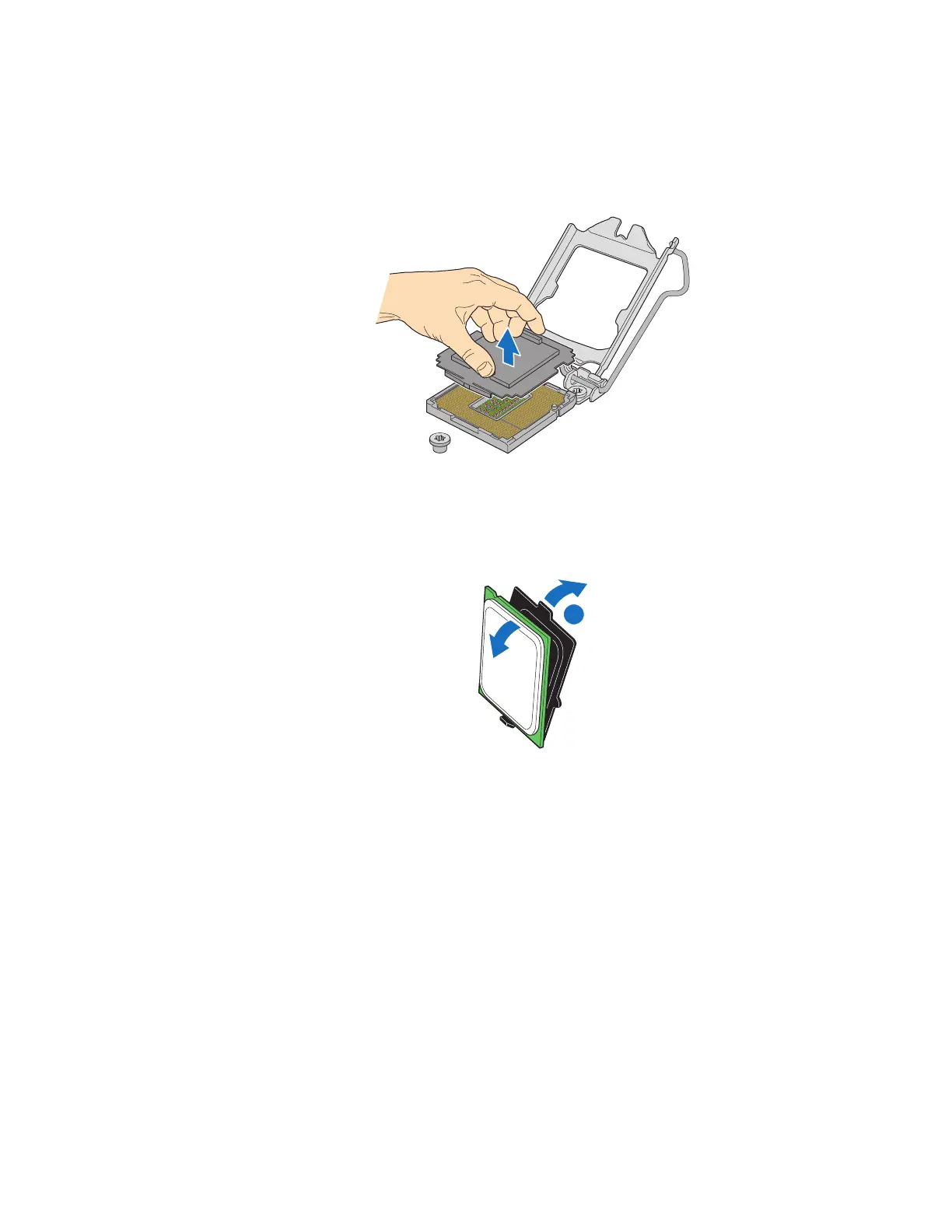

7. Remove the socket protective cover (Figure 13).
Figure 13. Remove the Socket Protective Cover
8. Take the processor out of the box and remove the protective shipping cover
(Figure 14).
Figure 14. Remove the Processor Protective Cover
9. Align the processor cutouts to match the two socket pins, and insert the processor
into the socket as shown in Figure 15.
AF003188
REMOVE
AF003189
A

Intel S3420GP Specifications

General

Product Type	Server Board
Chipset	Intel 3420
Socket	LGA 1156
Maximum Memory	16GB
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
Supported CPU	Intel Xeon 3400 series, Intel Core i3, Intel Celeron
Memory Type	DDR3
Storage Interface	6 x SATA 3.0 Gb/s
Integrated LAN	2 x Gigabit Ethernet
USB Ports	6 x USB 2.0
