Intel® Server Board S3420GP User Guide 47

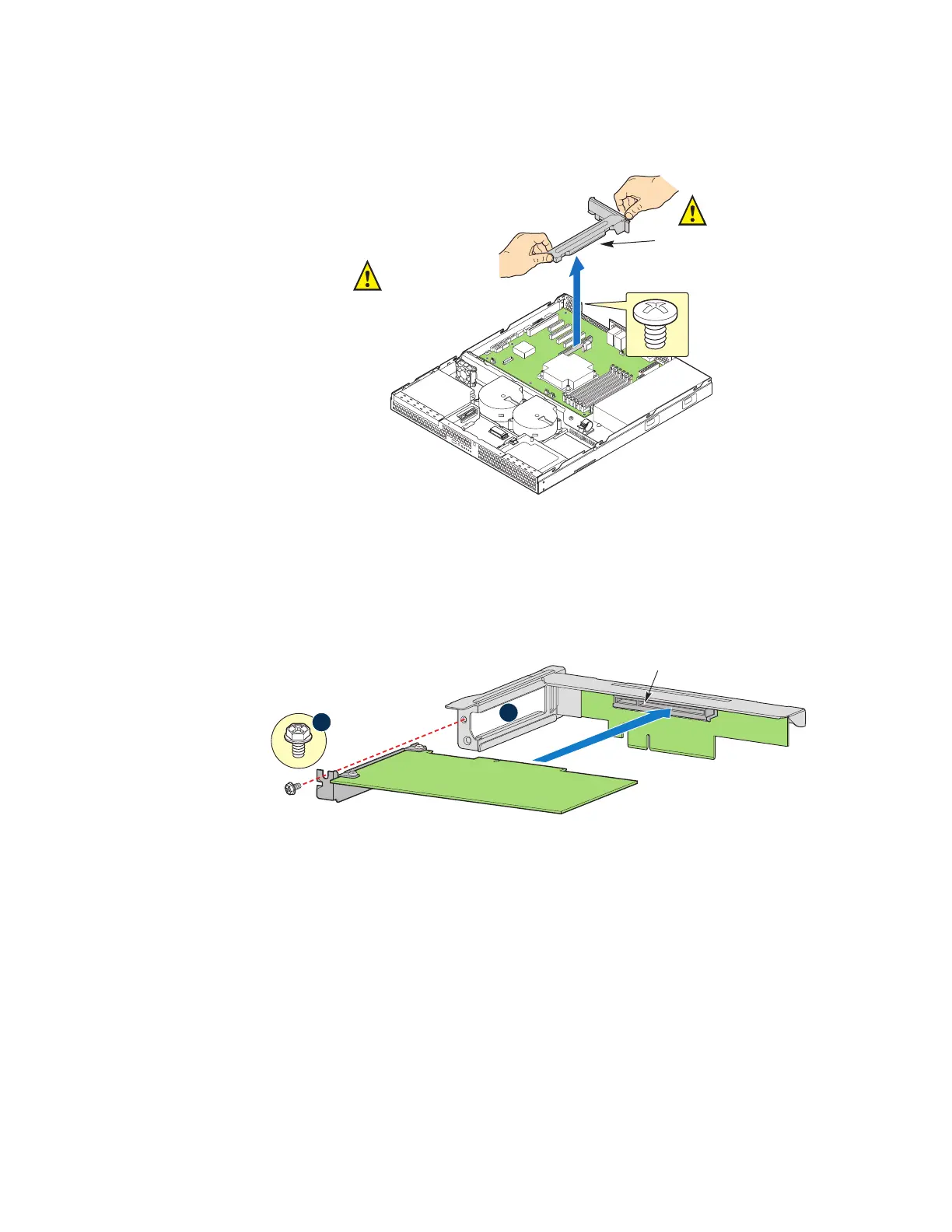

Figure 18. Removing the PCI Riser Assembly from the Server System
2. Insert the PCI card edge connector in the slot on the PCI riser.
Figure 19. Installing a PCI Card in a Riser Card
3. Insert the riser card with the attached PCI card into the PCI slot on the server board.
Press firmly on the riser card until it is fully seated. Press down on the riser card—
do NOT press down on the PCI card.
Caution: Press the riser card straight down into the slot. Tipping it in the slot while installing it may
damage the riser card or slot on the server board.
4. Use the screw removed in Step 1 to secure the riser card assembly to the chassis.
CAUTION:
Place the riser assembly
upsidedown to avoid
damage to the riser
card connector.
AF003193
Riser Card
Connector
Riser Connector
Riser Assembly
Supports one
PCIe* card.
Riser Card
A
B
Add-in Card
