4-18 Intel® Server RAID Controller U3-1 User’s Manual Rev 1.0
Using the Storage Console
Procedure
To create a volume using this feature:
1. ClickontheCreate Typical link. In Step 1 click on Yes if you would like to dedicate a global
hot spare. If a global hot spare already exists or if there is only one available disk in your
system, then this step is skipped. See Figure 4-9.
2. In Step 2 edit the volume name and size if desired and click on Yes to create the volume. See
Figure 4-10.
3. Confirm the new volume configuration by clicking on the Yes button.

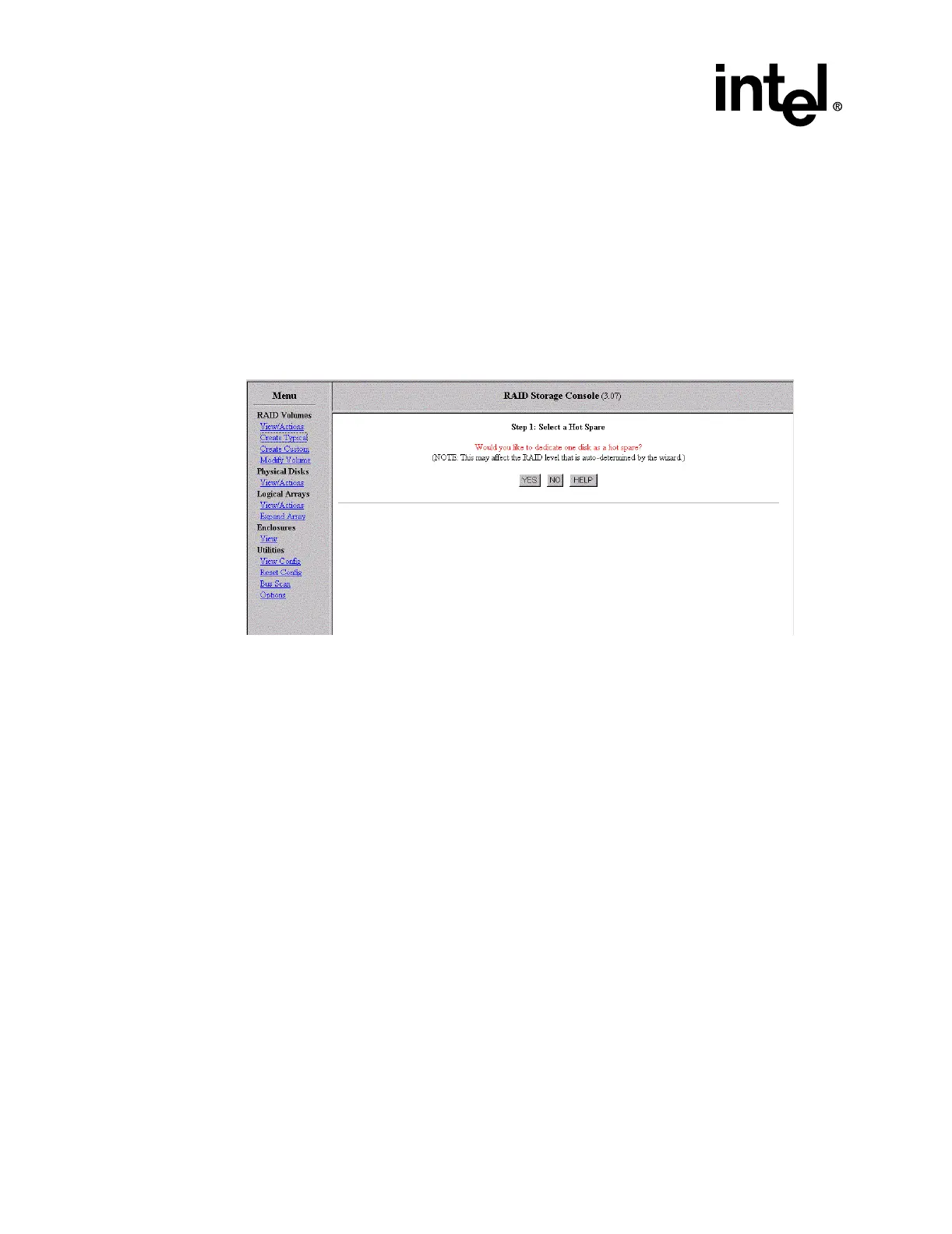

Figure 4-9. Create Typical Step 1
