6. Attach the valve to the controller or any other metalic surface by means of the
valve’s magnetic base.

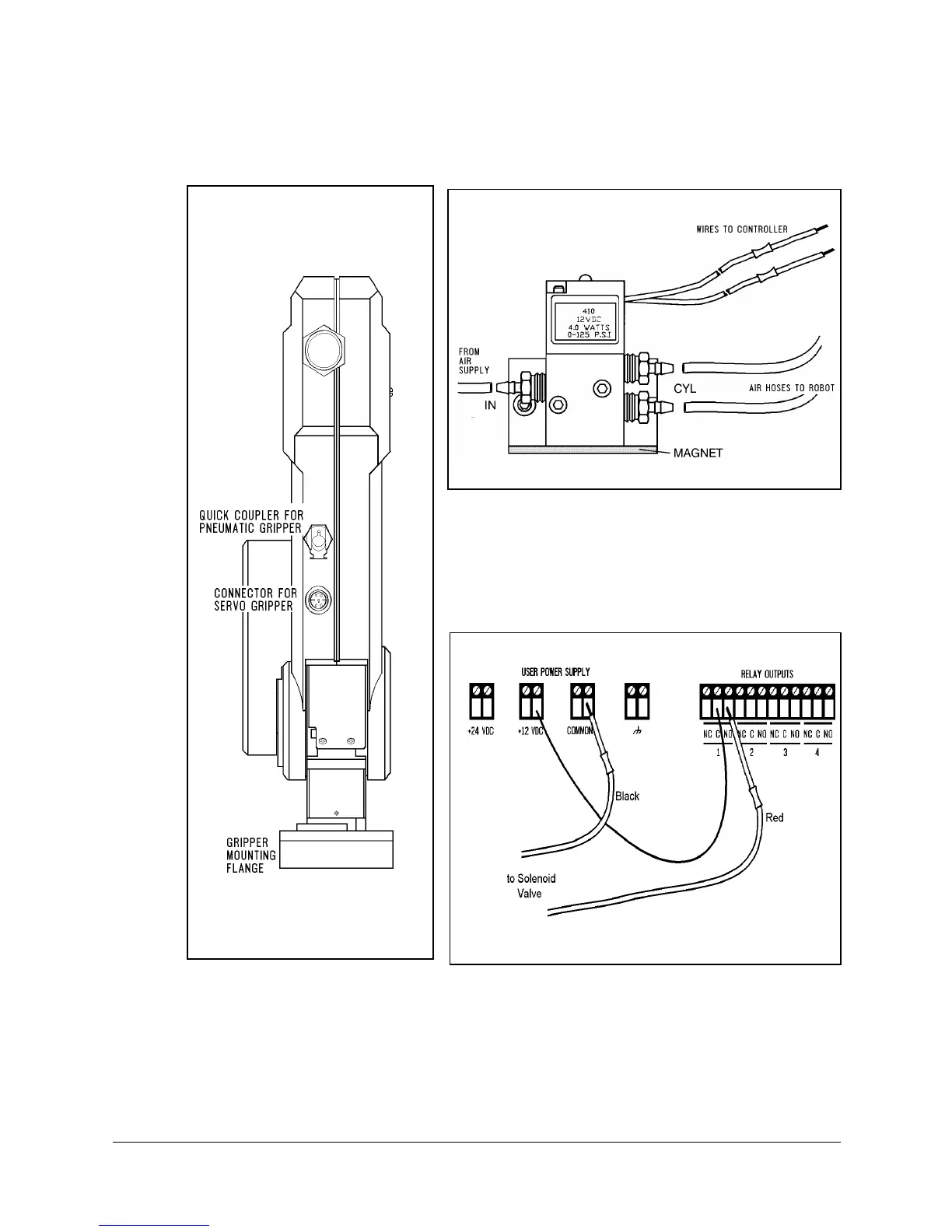

Figure 4-8: Pneumatic Solenoid Valve
Figure 4-9: Valve—Controller Connections
Figure 4-7:
Gripper Connectors
