Program Initialing and Serial Port Setup
The communication between the ACU and antenna must be established as the rst step in order to start setting your antenna.
Command Buttons
•BaudRateSetting–Todisplaydatacommunicationspeed.
•CommunicationStatusDisplay–TodisplaydatacommunicationbetweenACUandPC.
•SerialPortSetting–Toselectserialporttobeused.
•Connect/Disconnect–ToestablishconnectionbetweenACUandPC.

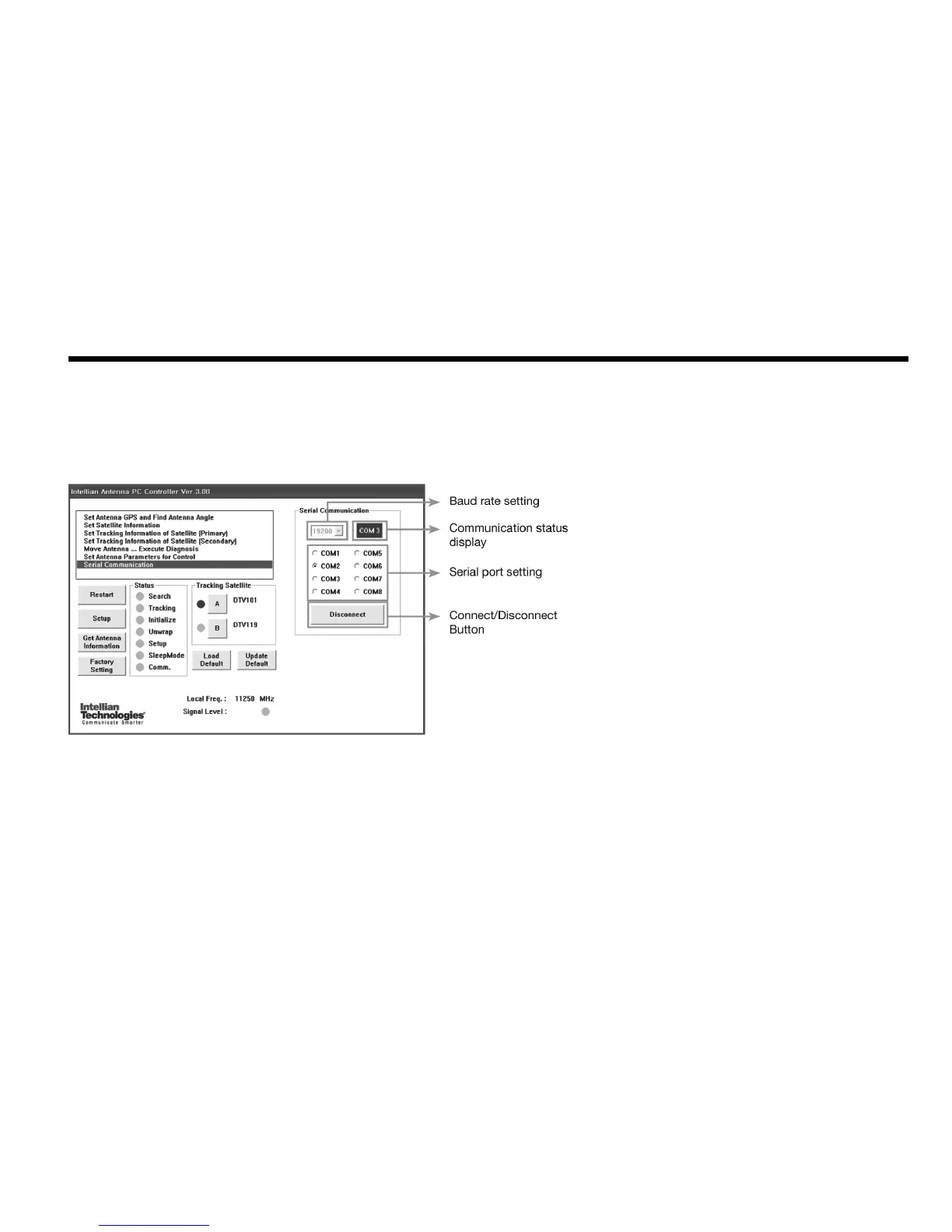

Figure 24 : Setup for Serial Communication
