17
Mounting the Antenna
Attach the antenna by using the hex head bolts (M8X50L), M8 spring
washers, and M8 at washers supplied.

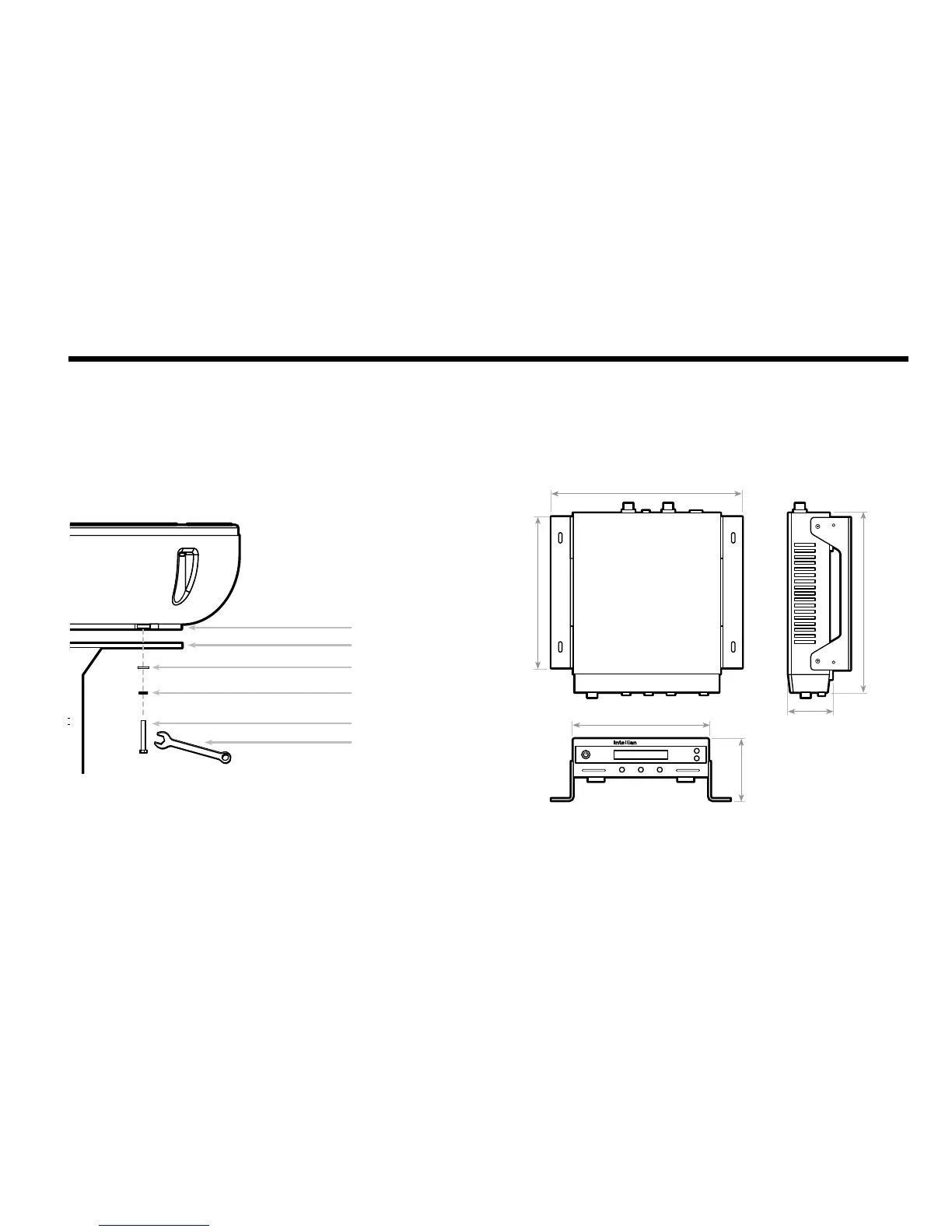

Figure 13 : Mounting the Antenna
Installing the ACU
5.4 cm (2.1”)
5.5 cm (2.2”)
22.8 cm (9”)
17.8 cm (7”)
21.7 cm (8.5”)
18.5 cm (7.3”)
Figure 14 : Dimension of ACU
ACU Dimensions
Radome Base
Deck
M8 Flat Washer
M8 Spring Washer
M8 Hex. Bolt
13mm Spanner
The ACU should be installed below deck, in a location that is :
• Dry, cool, and ventilated.
• Easy accessible from your main TV viewing area.
To Next Page
