Connection of the Cable
Remove the rubber cap from RF connector. Connect the RF cable to the
RF connector under the base plate through the access hole using an
11mm spanner. Be careful not to over tighten, as you may damage the
connector.
Note: Do not use excessive force when using the spanner, this will
damage the threads. Be careful that the connectors do not contact the
mounting surface of the antenna, this may cause a critical malfunction
and serious damage to the equipment.
Securing Holes for Bolts and Cable Ways
Make 4 bolt holes of 10mm diameter, one at each corner of a rectangle
drawn as below, and make a circular hole of 80mm diameter at the
center of the rectangle through which the cable will run.
Ø80mm
Hole Saw
Ø 10mm
Drill

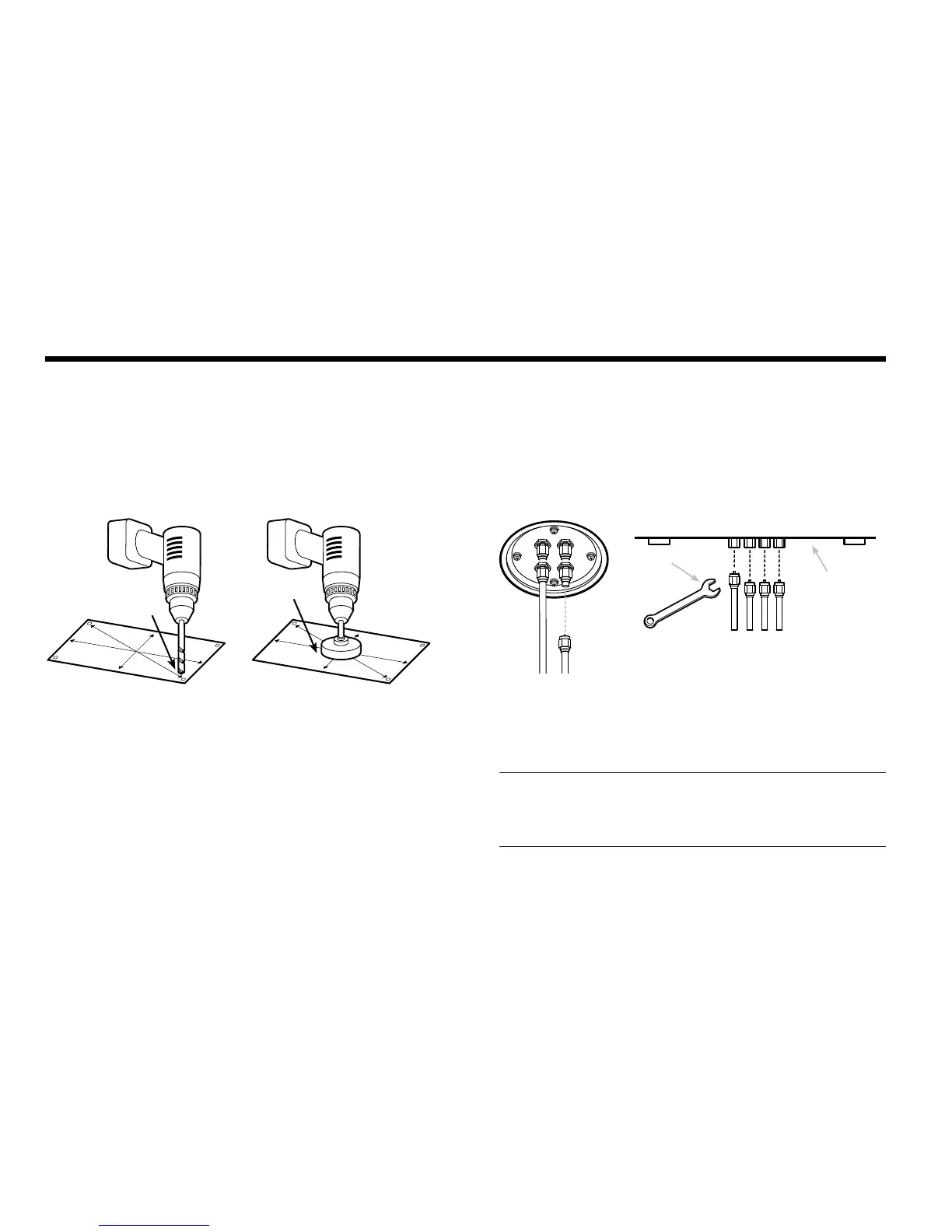

Figure 11 : Drilling Instruction
Figure 12 : Connectors on Bottom of Antenna
Antenna Unit
RF Cables
11mm
Spanner
To Next Page
