Mark of the Antenna Mounting Position
Referring to the mounting template, mark where antenna will be
mounted onboard (it must be a at surface) or on a separate power
tower by drawing a square of 30.4 cm (12”)
Note: If a power tower is not suitable to mount the antenna, separate
cable shock and waterproong measures must be taken to protect the
RF connector from being exposed to the sea water and external shocks.
An exposed cable may cause electric shock and cause serious damage
to the equipment.

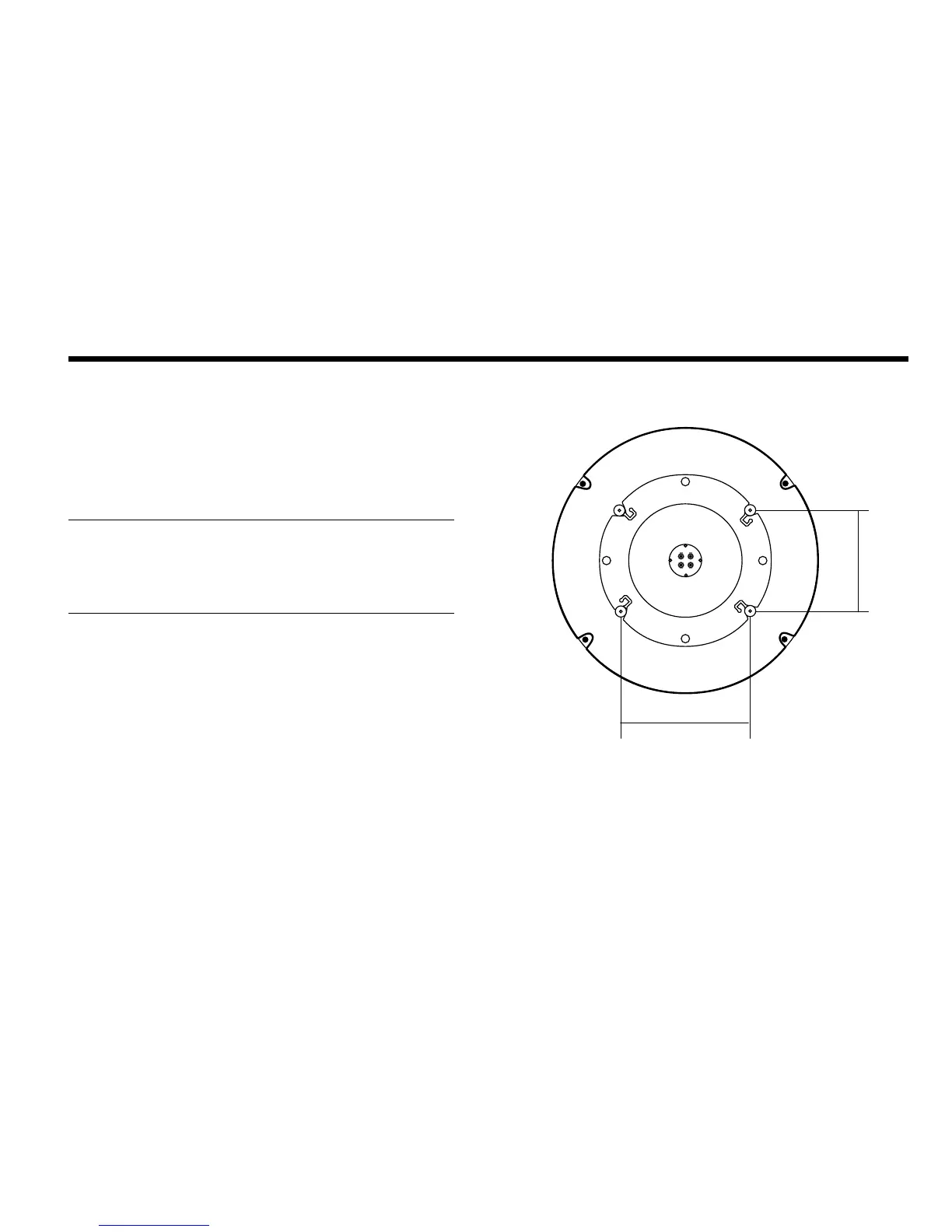

Figure 10 : Mounting Hole Position of I6/I6P/I6PE
30.4 cm (12”)
30.4 cm (12”)
To Next Page
