Setting Antenna Go Position

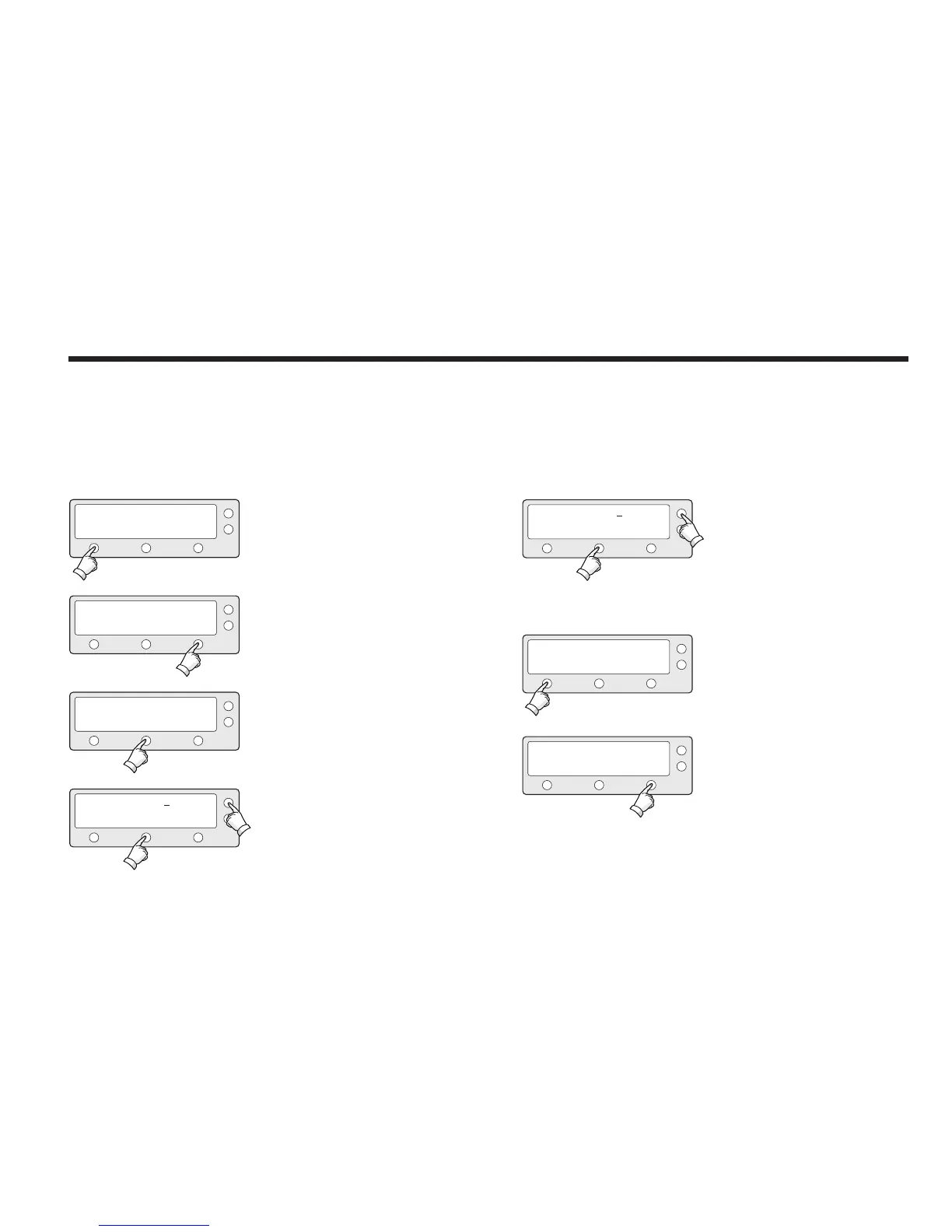

The antenna can be controlled manually by using the ACU.
1. Press YES to enter setup mode.
2. Press NEXT ten times to enter Antenna Go
Position mode.
(*i6P/i6PE: Press NEXT eleven times)
3. Press YES to go position.
4. Input position value for azimuth (AZ) axis.
+increases the value. - decreases the value.
Change the underscored digit using the
+/- buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
Press ENTER to move to next screen.
SETUP MODE ?
SET SAT PAIR ?
ANT GO POSITION ?
GO TO AZ : ##.#
YES
PREV
PREV
-
NO
NEXT
NEXT
+
YES
YES
INPUT
X10
5. Input position value for elevation (EL) axis.
+ increases the value. - decreases the value.
Change the underscored digit using the
+/- buttons.
Press INPUT to accept the value and move to
next digit.
Press BACK to move to previous digit.
Press ENTER to move to next screen.
6. Press YES to move the antenna to input position.
Press NO to return to the Antenna Go Position
mode.
7. Press EXIT to return to main setup mode.
GO TO EL : ##.#
AZ:###.# EL:###.#
-
YES
+
NO
EXIT
INPUT
GO TO POSITION ?

Intellian i6P Specifications

Operating Environment

operating temperature range	-25°C to +55°C
storage temperature range	-40°C to +80°C
humidity limit	95% R.H

Antenna System Performance

frequency	Ku-band (10.7 to 12.75 GHz)
minimum EIRP	46 dBW
azimuth range	680°
elevation range	-5° to +90°
roll	±25°
pitch	±15°
roll and pitch response rate	45° per second
turn rate	45° per second

Power

power requirements	9~30 V DC
power consumption typical	30W
power consumption maximum	50W

Weight and Dimensions

satellite antenna unit dimensions	70 cm x 72 cm
antenna dish diameter	60 cm
antenna control unit dimensions	17.8 cm x 21.7 cm x 5.4 cm
satellite antenna unit weight	21 kg
antenna control unit weight	1.2 kg
