5.2 Antenna Dimensions
Before installing the antenna unit, confirm its height and diameter (see figure below). The mounting surface
and overall space occupied by the radome must be sufficient for the height and diameter of the fully
constructed radome on top of its mounting base. The radome dimensions are the same.

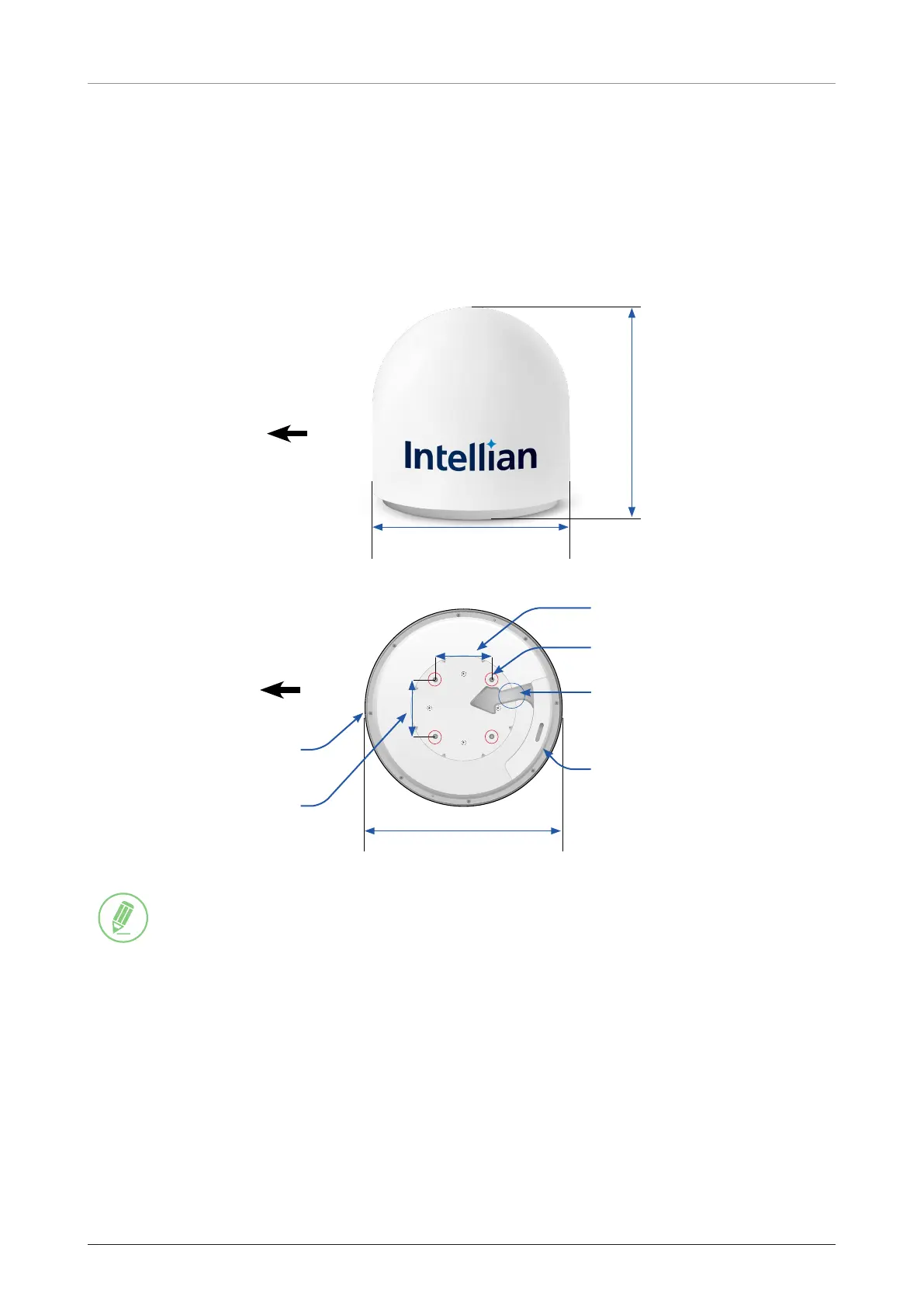

Antenna Dimensions
Unit: mm (inches)
BOW
Direction
Ø856 (33.7)
850 (33.5)
Figure 7: Antenna Side View
BOW
Direction
Cable Entry
Cable Entry Cover
Mouting Hole (4 ea)
247.5 (9.7)
BOW Mark
247.5 (9.7)
Ø856 (33.7)
Figure 8: Antenna Bottom View
NOTE
Position the antenna with the BOW direction parallel to the center line of the ship.
