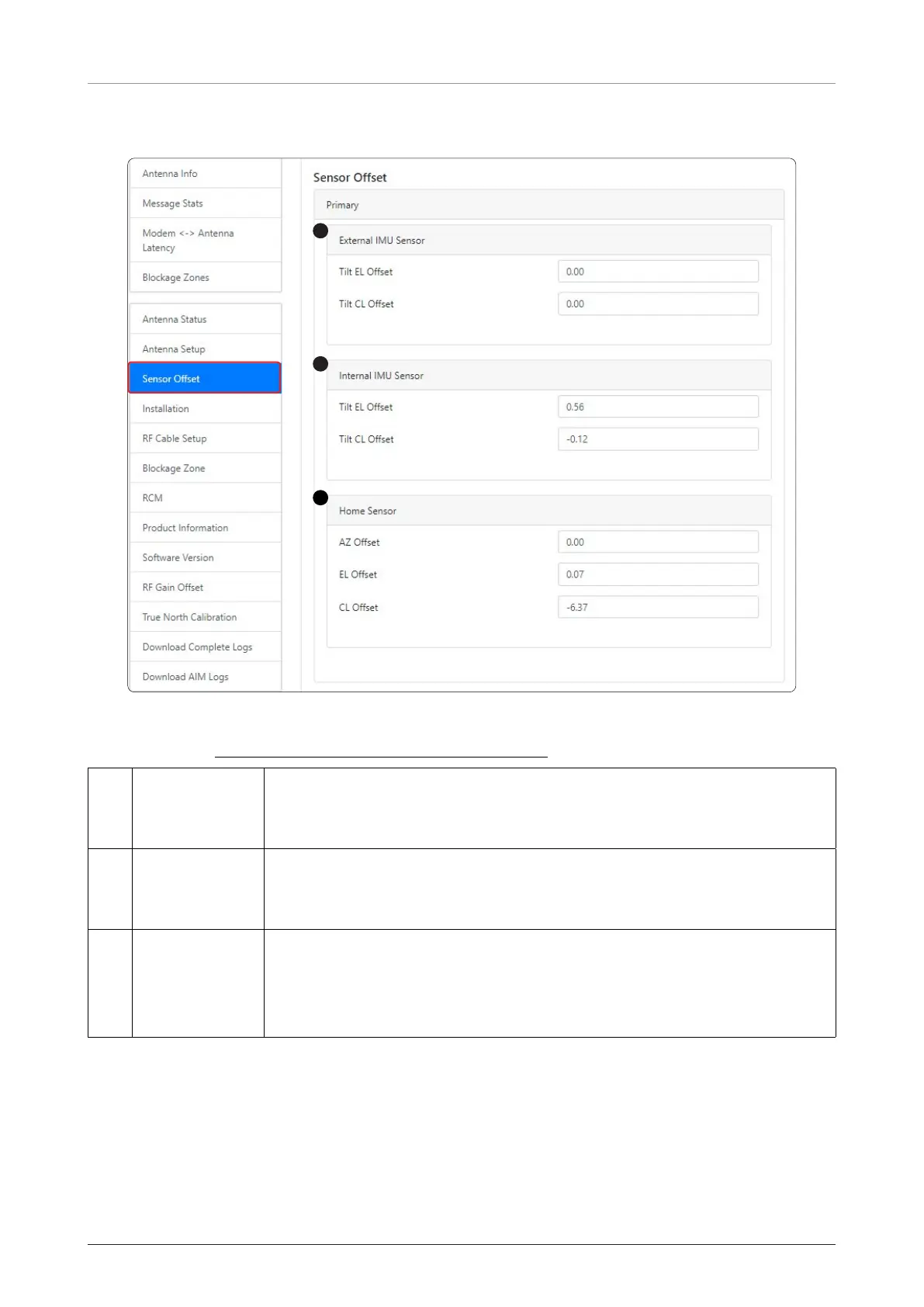

8.5.7 Sensor Offset
1
2
3
The tilt values of the elevation and cross-level axes were calibrated to the optimal condition at the factory
prior to shipment. The values should not be arbitrarily changed.
①
External IMU
Sensor
Displays the reflector sensor value.
• Tilt EL Offset : Displays the tilt EL offset value.
• Tilt EL Offset : Displays the tilt CL offset value.
②
Internal IMU
Sensor
Displays the calibrated value for the main sensor.
• Tilt EL Offset : Displays the tilt EL offset value.
• Tilt EL Offset : Displays the tilt CL offset value.
③
Home Sensor
Displays the AZ, EL, CL for the square one sensor.
• AZ Offset : Displays the tilt AZ offset value.
• EL Offset : Displays the tilt EL offset value.
• CL Offset : Displays the tilt CL offset value.
