INSTALLING THE ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
t%SZDPPMBOEWFOUJMBUFE
t5IFGSPOUQBOFMTIPVMECFFBTZBDDFTTJCMFUPVTFS

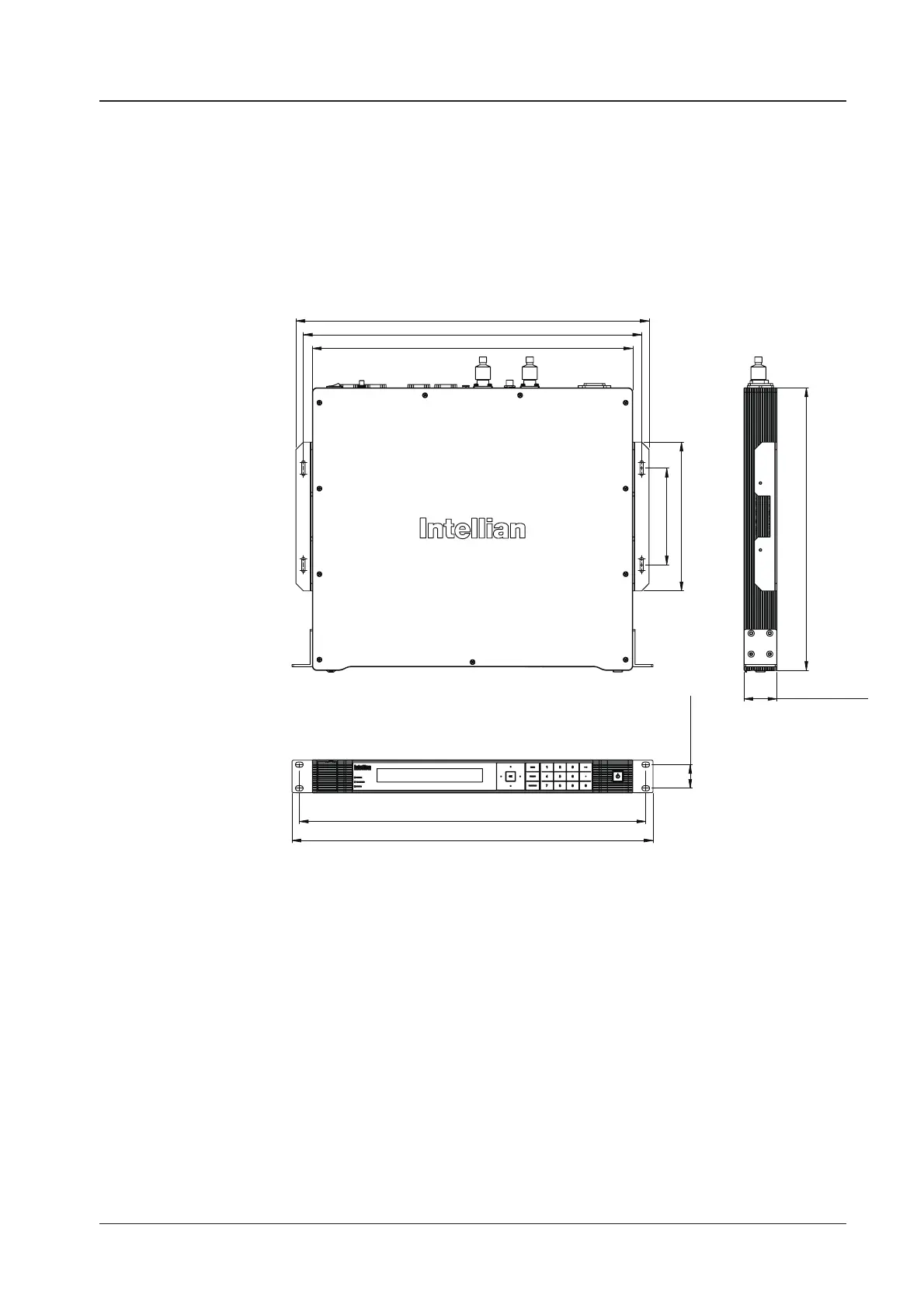

ACU Dimensions
Dimension of ACU
43.1 cm (17")
47.5 cm (18.7")
20.0 cm (7.9")
45.5 cm (17.9")
13.0 cm (5.1")
48.5 cm (19.1")
46.6 cm (18.4")
3.2 cm (1.3")
4.4 cm (1.7")
38 cm (15")
