PC to ACU Communication Setup
You can establish data communication between a PC and the ACU using one
of the following methods.
TCP/IP Connection
Connection through Front Panel Management Port
This method is most recommended. Network is automatically congured by DHCP
without the need of additional PC IP conguration nor intervention to Modem to
ACU connection in use.
1. Connect an Ethernet cable from a PC Ethernet port to the Management port
on the front of the ACU.
2. Network connection is established.
3. Use the following IP address to access Intellian Aptus
®
or Web M&C page.
(See also page 84 or 109 for details.)
t 192.168.2.1 (Default)
Connection through Rear Panel Ethernet Port
This method requires separate IP conguration on a PC.
1. Connect an Ethernet cable from a PC Ethernet port to an available LAN port
of a Switch/Hub.
2. Go to Control Panel > Network and Sharing Center > Change Adapter Settings
and right-click on the Local Area Connection then click Properties
3. Select TCP/IPv4, then click Properties.
4. Change the network settings on a PC;
t Default IP: 192.168. 0.222 (Secondary: 10.10.1.2)
t Subnet Mask: 255.255.255.0
t Gateway: 192.168.0.223 (Secondary: 10.10.1.1)
5. Use the following IP address to access Intellian Aptus
®
or Web M&C page.
(See also page 84 or 109 for details.)
t Default: 192.168.0.223 (Secondary: 10.10.1.1)

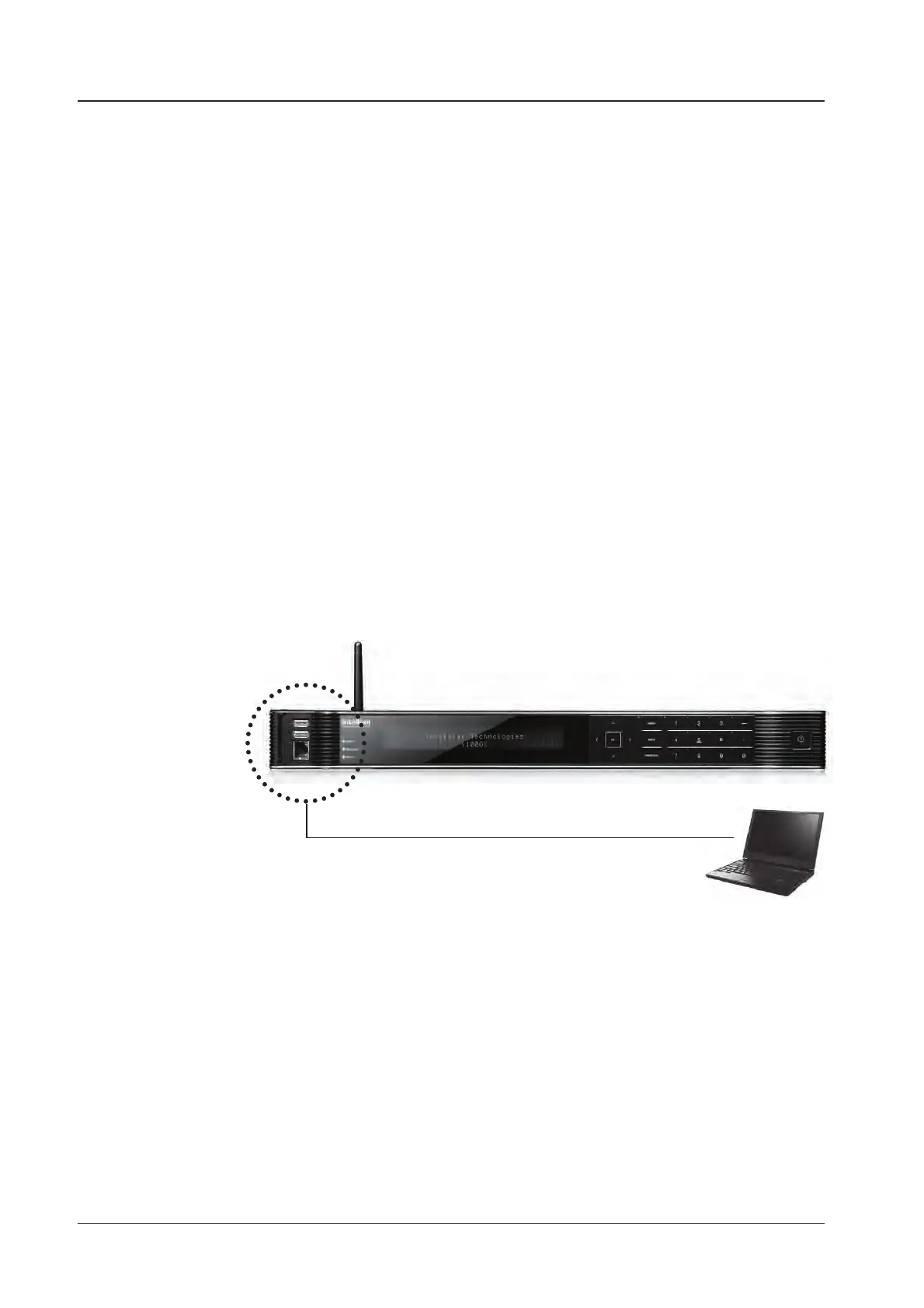

PC
Management
Ethernet Port
Ethernet Port
