Detect & tracking level
Set detect & tracking NBD
BOW & EL adjust
DETECT NBD TRACKING NBD
0 4 0 020
6. Set DETECT NBD and TRACKING NBD when NBD (Narrow Band Detection) mode of
TRACKING SIGNAL is chosen to be used (Range: 1-200).
DETECT NBD is to set the satellite signal detection level and TRACKING NBD is to set the
satellite signal tracking level.
Touch LEFT and RIGHT arrow keys until the desired character is underscored (selected).
Touch UP and DOWN arrow keys to increase and decrease the selected character.
Or touch NUMBER keys to set the desired value directly. Touch OK key to set the parameter.
Touch BACK key to select the parameter you wish to edit and touch BACK key again to save
or abort and return to the main display.

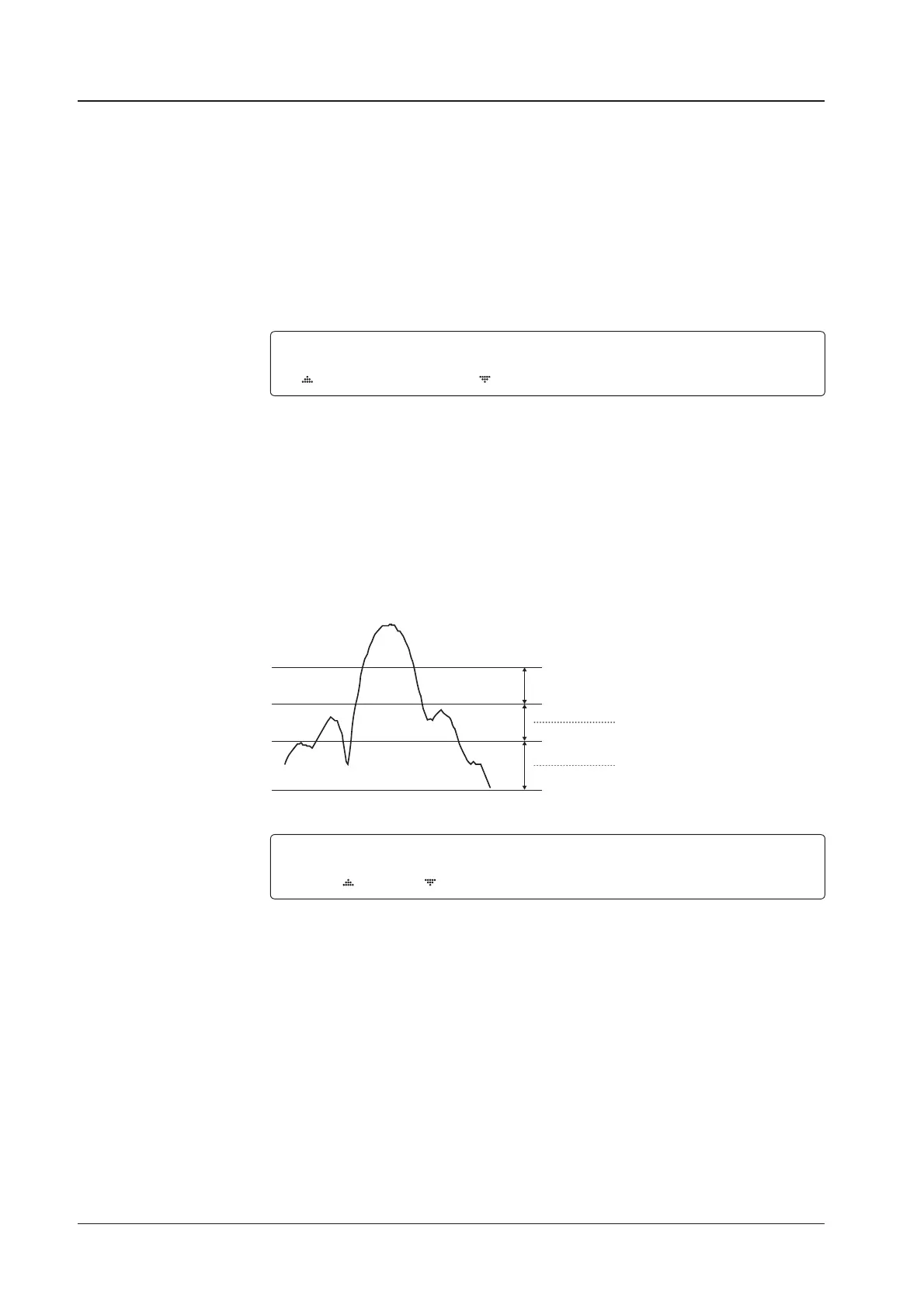

5VPZL3L]LS
+L[LJ[3L]LS
;YHJRPUN3L]LS
;9(*205.+=)5+)
7LHR3L]LS
+,;,*;+=)5+)
BOW ADJUST EL.ADJUST
0 0 0 +0.0
7. Set BOW ADJUST and EL. ADJUST
BOW ADJUST is to offset the angle difference between the antenna’s bow and the ship’s bow
(Range: 0 – 360°) and EL. ADJUST is to offset the angle difference between the mechanical
elevation angle and actual elevation angle (Range: ± 5°).
Touch LEFT and RIGHT arrow keys until the desired character is underscored (selected).
Touch UP and DOWN arrow keys to increase and decrease the selected character.
Or touch NUMBER keys to set the desired value directly. Touch OK key to set the parameter.
Touch BACK key to select the parameter you wish to edit and touch the BACK key again to
save or abort and return to the main display.
