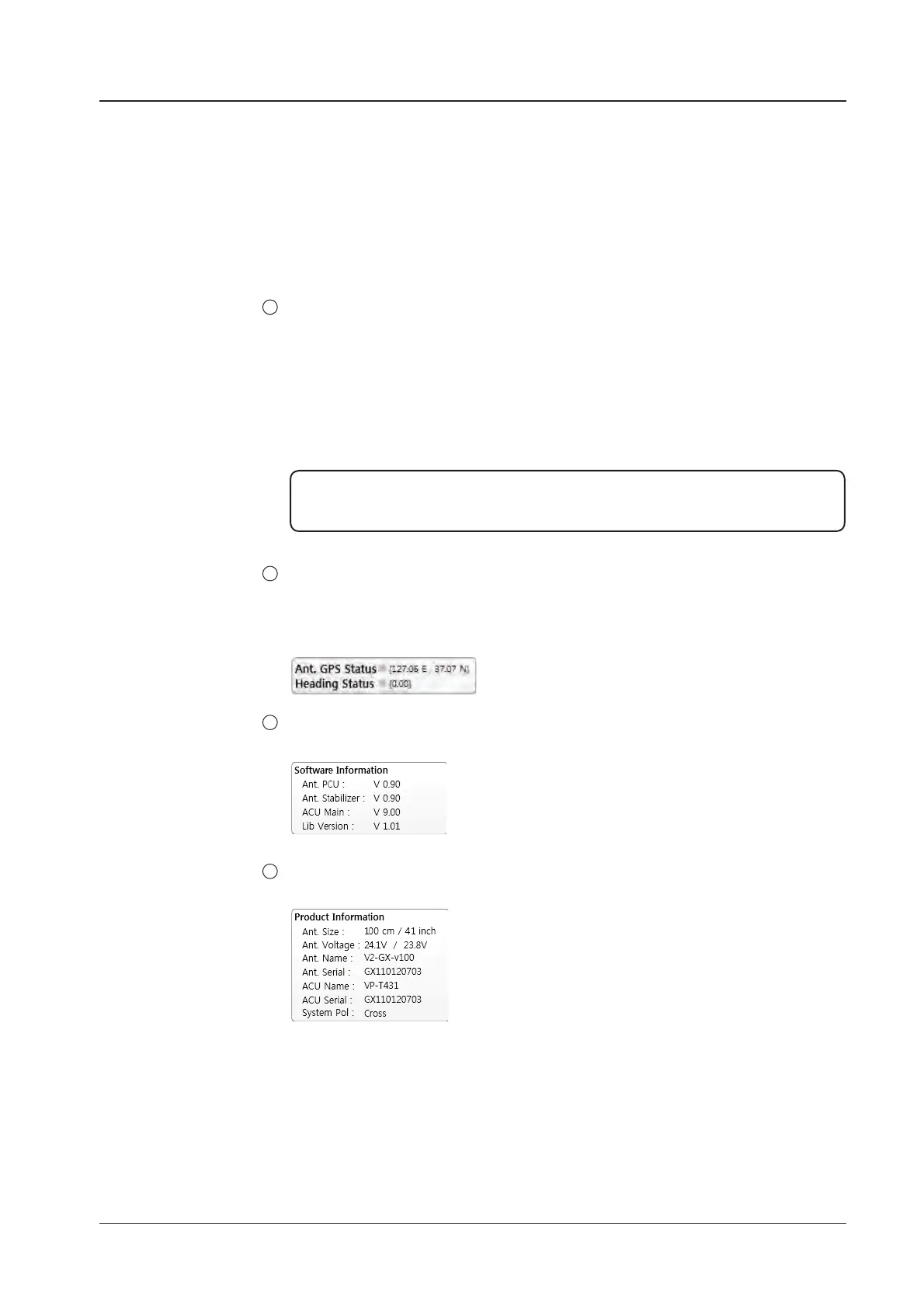

ANTENNA CONTROL SOFTWARE

Signal Level

Shows “DVB” when DVB mode of tracking signal is in use and “NBD” when NBD

mode of tracking signal is in use. The “Red” line indicates the signal “Detect Level

Threshold” and the “Orange” line indicates the signal “Tracking Level Threshold”.

If the signal level is higher than the tracking level threshold, the signal level bar will

display “Blue” color. If the signal level is lower than the tracking level threshold, the

signal level bar will display “Orange” color and the antenna will stay in searching

mode.

NOTE: If the signal level is not higher than the tracking threshold, decrease the detect

and tracking level. See page 97.

GPS and Heading

Displays the current GPS location from the Antenna and Ship’s heading information.

The status light ashes green if the system receives a correct input of the GPS and

Ship’s heading.

Software Information: Displays the antenna and the ACU rmware versions, and the

library version.

Product Information: Displays the antenna and ACU serial numbers, antenna model

and ACU model.
