V110 – Marine Satellite Communication System
Rear View
Cable
Entry
Installing the System Cables
The coax cables must be inserted through the cable strain relief(s) at the
base of the radome. The cables must be routed from the antenna
through the deck and through various ship spaces to the antenna
control unit. When pulling the cables in place, avoid sharp bends,
kinking, and the use of excessive force. After placement, seal the deck
penetration glad and tie the cables securely in place.

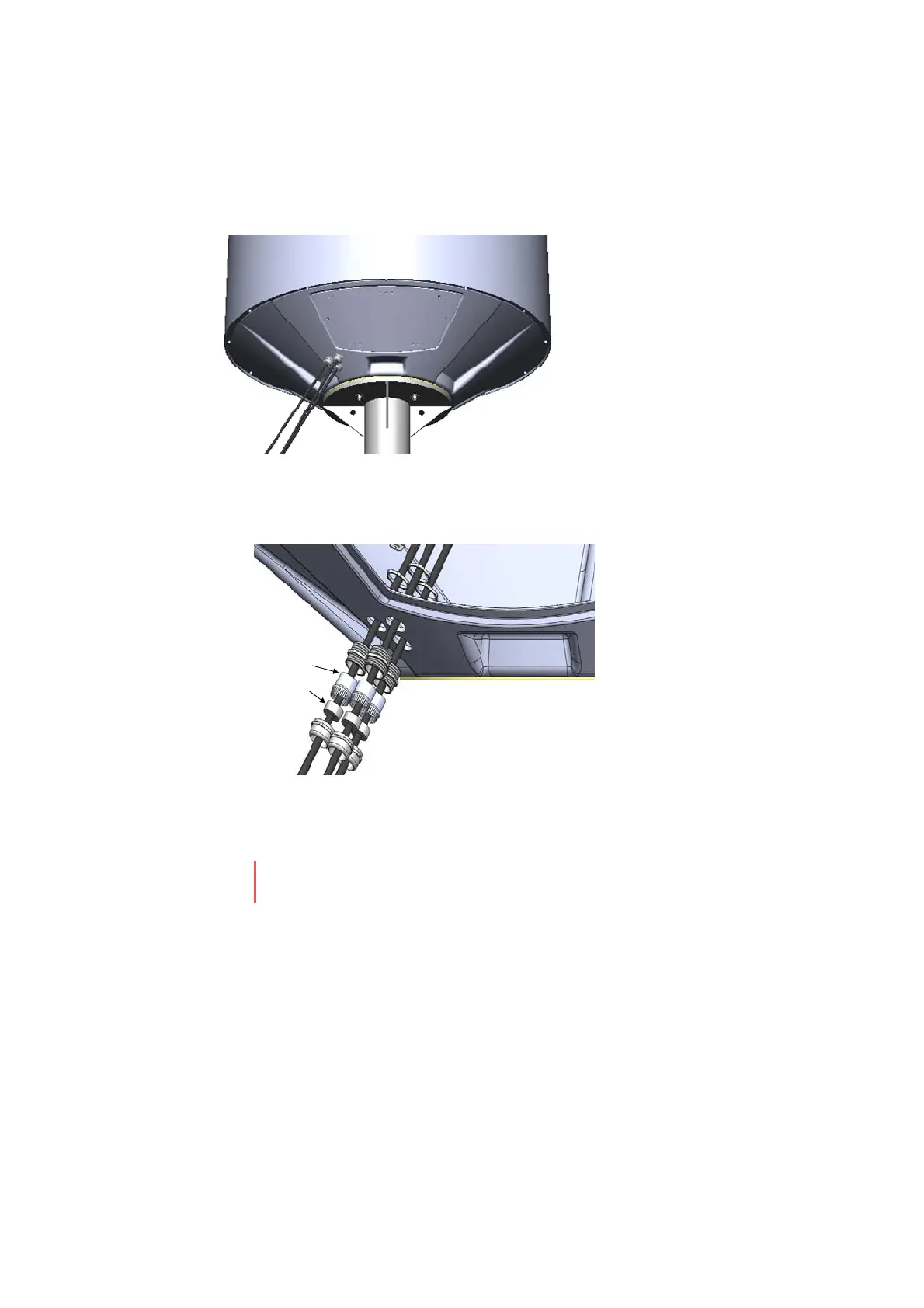

Figure 18. Cable Entry
Shrinkage Guide
Rubber Gland
Figure 19. Cable Entry Diagram
