DVB VERIFY SKEW OFFSET
▲ DVB DECODE ▼ +12.0
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
OK
M
R
F

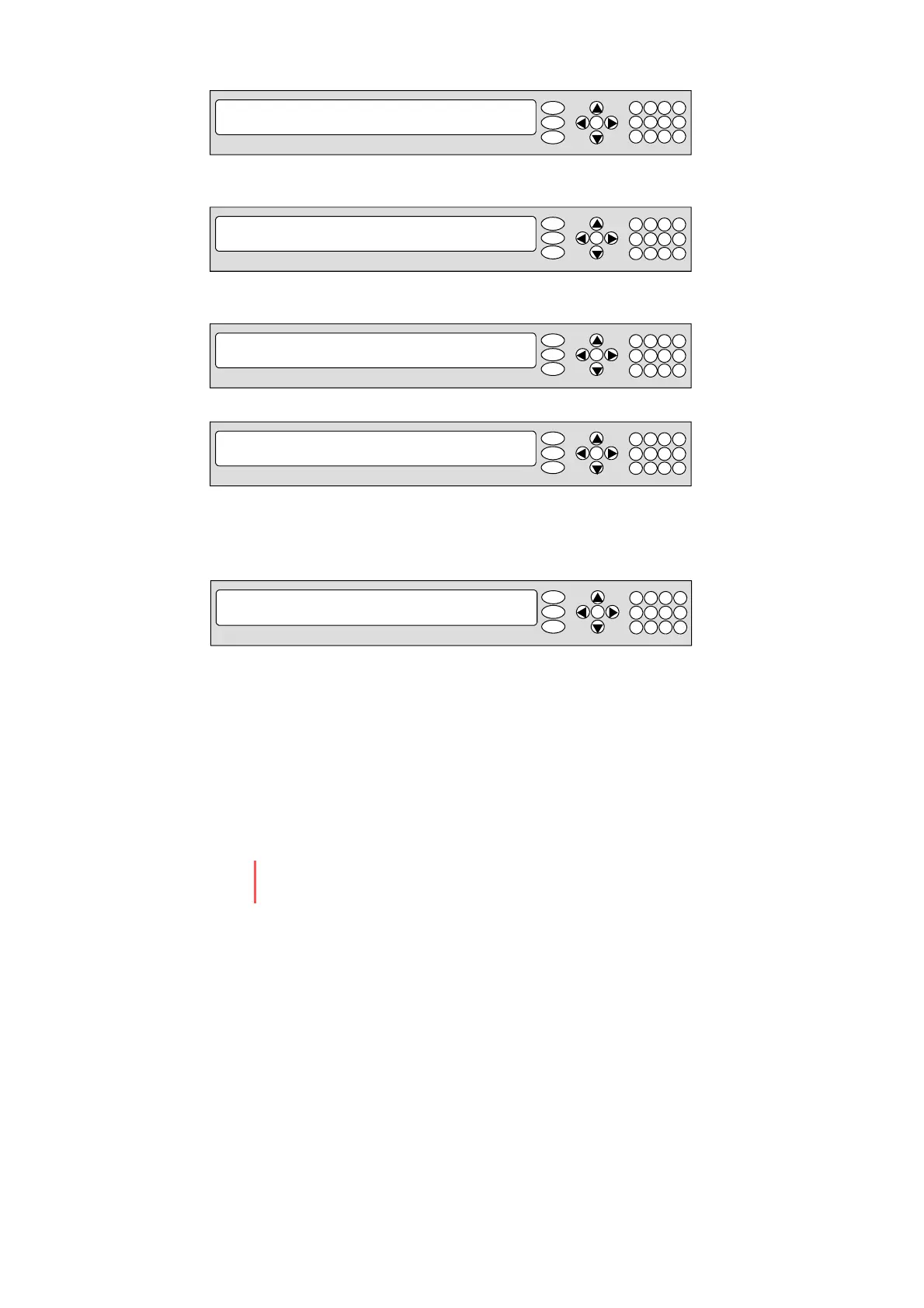

5. Edit the satellite DVB VERIFY and SKEW OFFSET.
DVB VERIFY will be only activated and applied when choose to use DVB on tracking
signal . Press UP and DOWN arrow keys to select DVB Verify 1) and press OK
key to set the parameter.
DVB Verify 1)
- AGC – use signal level for satellite tracking.
- DVB Lock – use DVB Lock for satellite tracking.
- DVB Decode – use DVB Decode for satellite tracking.
- DSS Decode – use DSS Decode for satellite tracking.
Add Satellite Information
◀ →LONGITUDE EDIT NAME ▶
116.00E KOREA_CS
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
SETUP MODE ?
→ YES NO
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
+ANTENNA →+SATELLITE
+SYSTEM +INSTALLATION
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
2. Press RIGHT arrow key to move cursor to SATELLITE and press OK key to enter
SATELLITE menu.
1. Press LEFT arrow key to move cursor to YES and press OK key to enter setup
mode.
OK
M
R
F
OK
M
R
F
OK
M
R
F
+LOAD SAT. +EDIT SAT.
→+ADD SAT.
1
4
7
2
5
8
3
6
9
←
0
·
Antenna Control Unit
3. Press DOWN arrow key and OK key to enter ADD SAT. menu.
OK
M
R
F
4. Set the satellite LONGITUDE and satellite NAME.
Press LEFT and RIGHT arrow keys until the desired character is underscored
(selected). Press UP and DOWN arrow keys to increase or decrease the value.
Or press NUMBER keys to set the desired valu e directly. Press OK key to set the
parameter.
