Chapter 5. Installing Above Deck Unit (ADU)
5.1 Antenna Dimensions
Conrm the height and diameter of the antenna unit shown in the following gure before installing it. The
mounting surface and overall space occupied by the antenna must be sufcient for the fully constructed
radome on top of its base frame. Using a crane during the antenna installation is strongly suggested.
Unit: mm (inch)
BOW
Direction
935 (36.81)
Ø860 (33.85)
Ø860 (33.85)
BOW
Direction
Cable Entry
Cable Entry Cover
Mouting Hole (4 ea)
BOW Mark
NOTE
NOTE
Position the antenna with the BOW direction parallel to the center line of the ship.

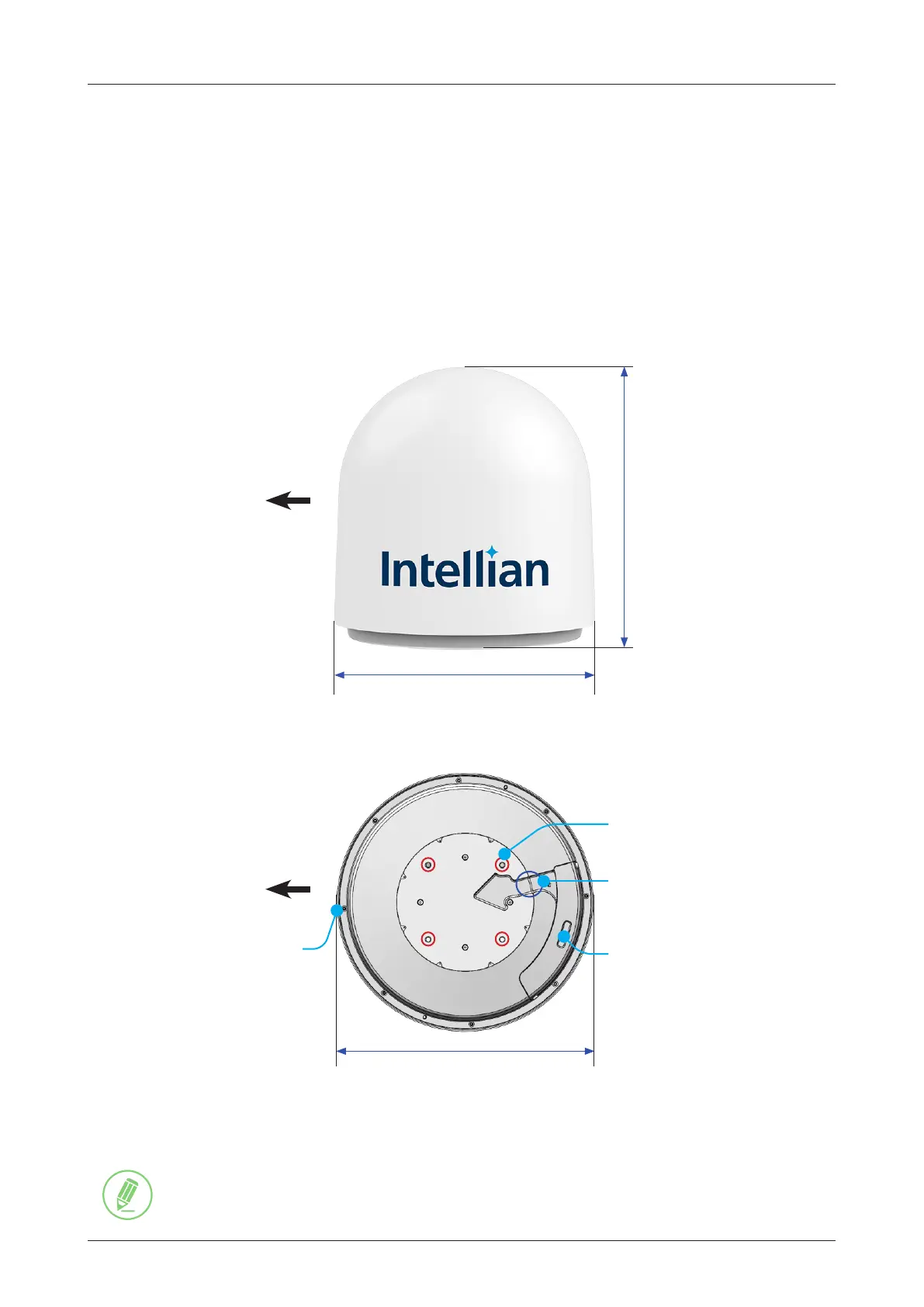

Figure 7: Antenna Dimensions
