Intellian v60E User Manual

52
v60E - Maritime VSAT Antenna System
The following table shows status indicators on the ACU.
LED Indicator Color Description
POWER
Steady Green The ACU is powered on.
Off The ACU is powered off.
INT/SERCH
Steady Green The antenna is searching a satellite.
Blinking The antenna is initializing.
TRACKING Steady Green The antenna is in tracking mode.
LOCK Steady Green The satellite is locked.
SETUP/TEST
Steady Green The antenna is in Setup mode.
Blinking The antenna is in Test mode.
ERROR Steady Red The antenna is in error.
Chapter 8. Operating ACU
8.1 ACU Front Panel View
The following gure shows the ACU's front panel.

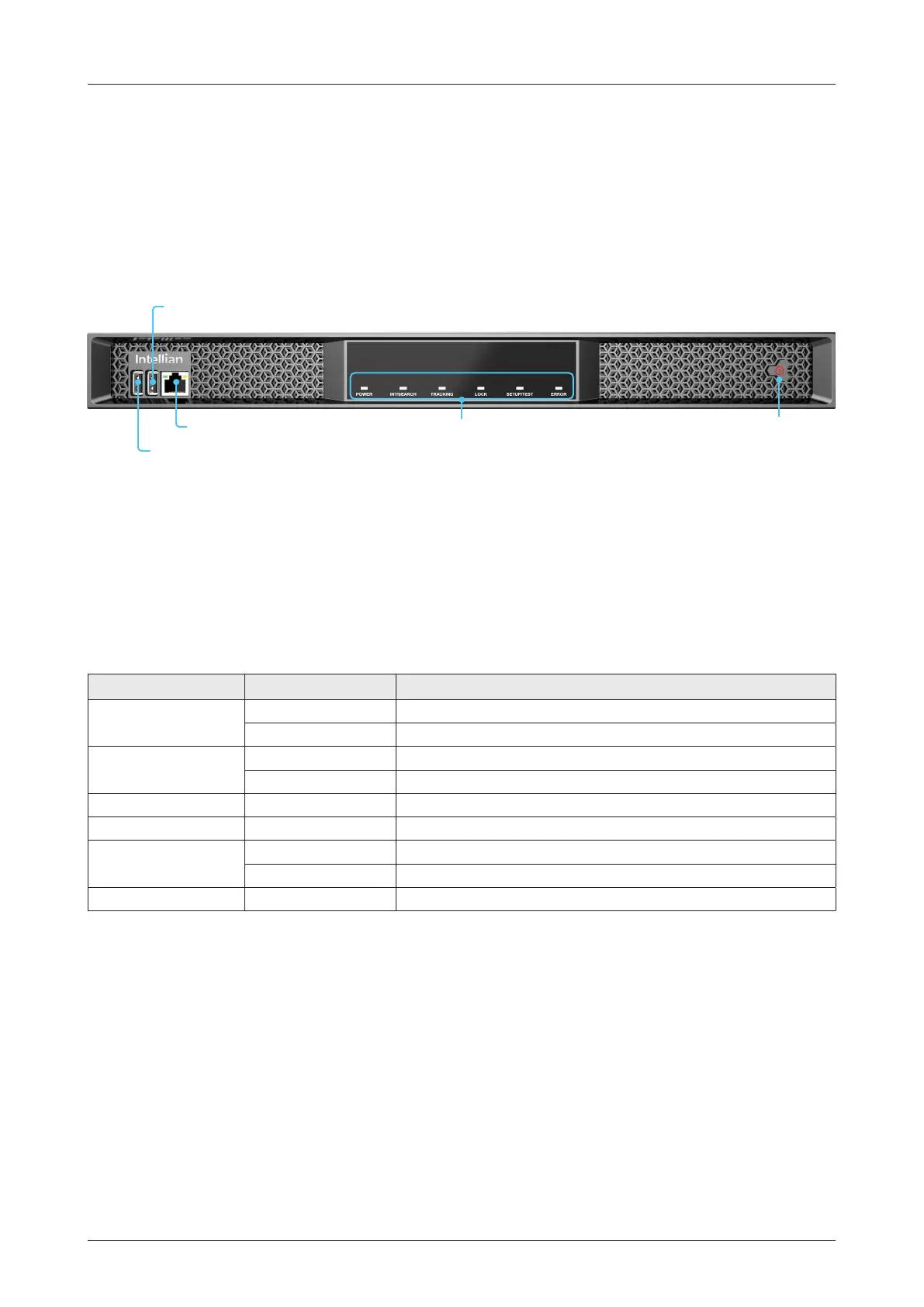

Figure 27: ACU Front Panel View
LED Indicators Power ButtonManagement Port
No Function
Left Side USB (Serial) Port:
For M&C by PC
